Site preparation
3-8 Chapter 3: Installation 98-137654-A

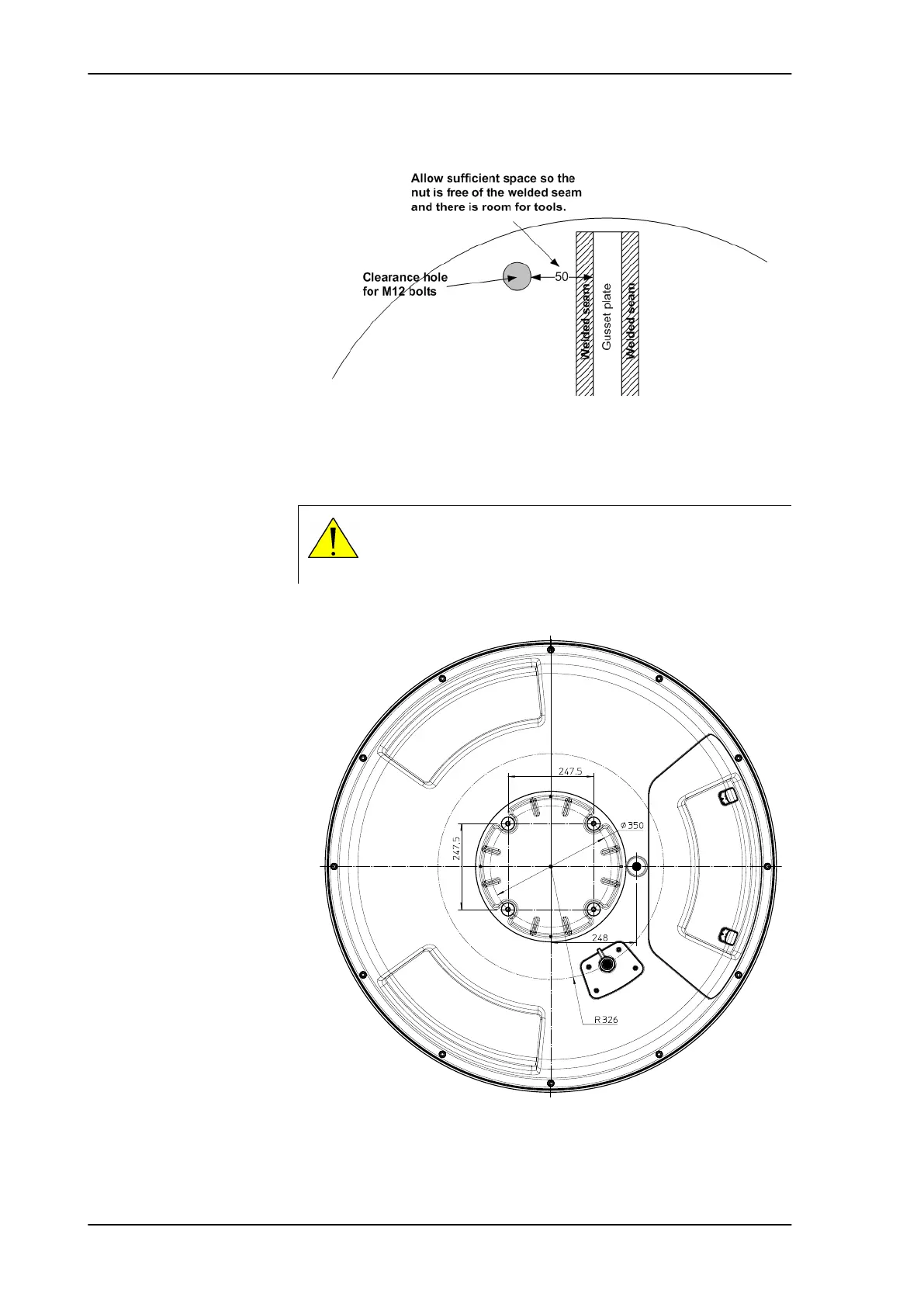

Figure 3-7: ADU mast flange, distance to the welded seam
CAUTION! Avoid sharp edges where the flange is in
direct contact with the radome. Round all edges as much
as possible to avoid damaging the surface of the radome.
Figure 3-8: ADU, bottom view
