Removal and replacement of ADU modules

98-137654-A Chapter 8: Service & maintenance 8-71

8888

Service & maintenance

3. Rotate the antenna dish to 0 degree position.

4. Press in and turn the elevation locking pin (if available) to locked

position.

5. Disconnect the power connector of the Polarisation Motor.

6. Slide the polarisation belt off the LNB belt wheel by pulling the

belt while turning LNB back and forth.

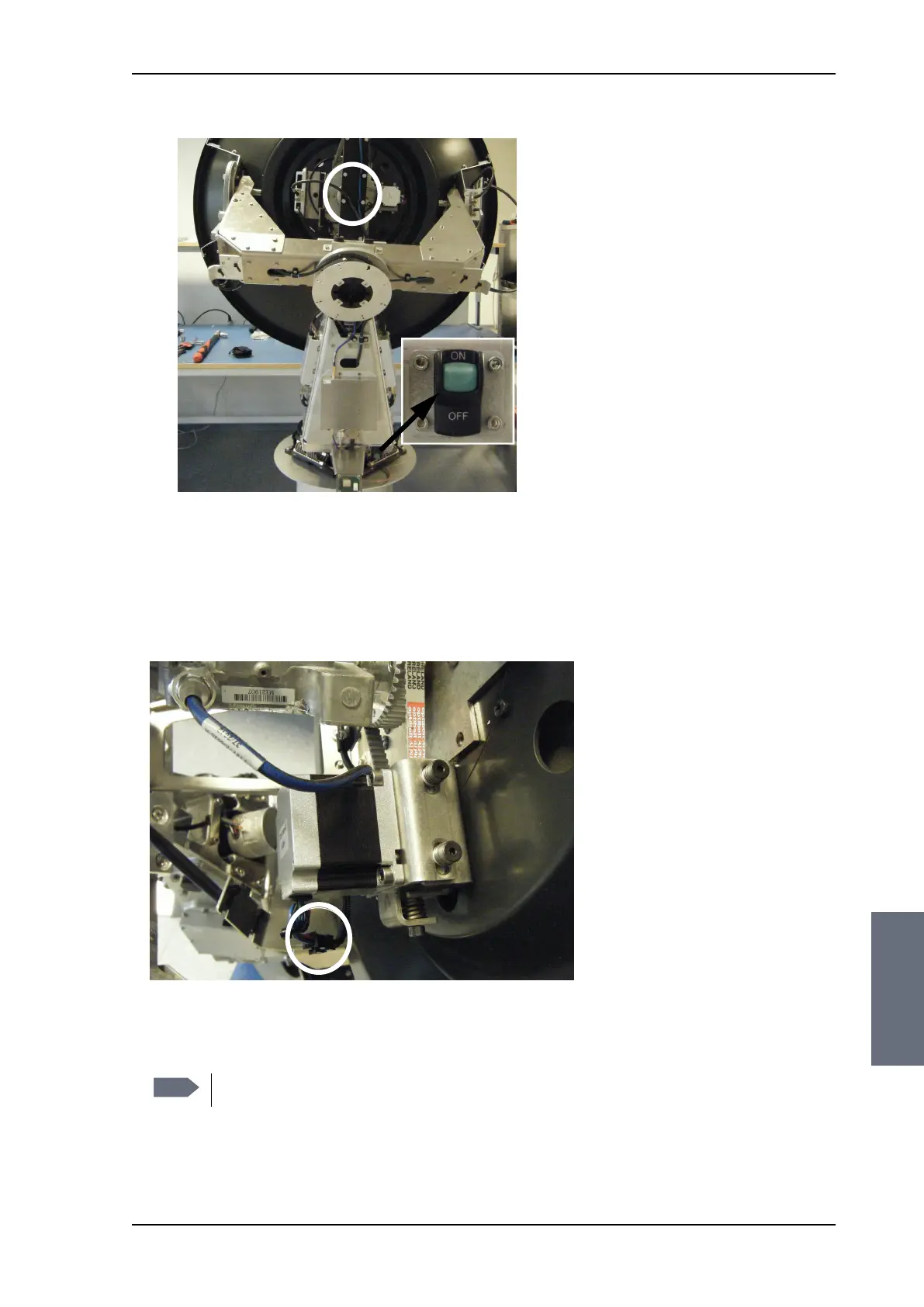

Figure 8-88: Location of the LNB

Figure 8-89: Polarisation Motor — disconnecting power

Note

Do not adjust spring-tension screw. Leave as it is
