Sailor 100 - Above Deck Unit (ADU)

SAILOR 100 Satellite TV system
98-137654-A Chapter 2: Introduction 2-3
2222
Introduction
 Support for optional TV distribution system, i.e. SAILOR
Transmodulator.
 Remote control from another network entity (e.g. a Control Panel)
2.1.1 Above Deck Unit (ADU)
The SAILOR 100 Satellite TV ADU is a 103 cm stabilised tracking
antenna, consisting of a suspended antenna with a standard global
RF configuration. The ADU’s weight is 126 kg. It is stabilized by
heavy duty vibration dampers in 3-axis (plus skew) and can be used
in environments with elevations of -25° to + 125°. The ADU is
powered by the ACU and protected by a radome.

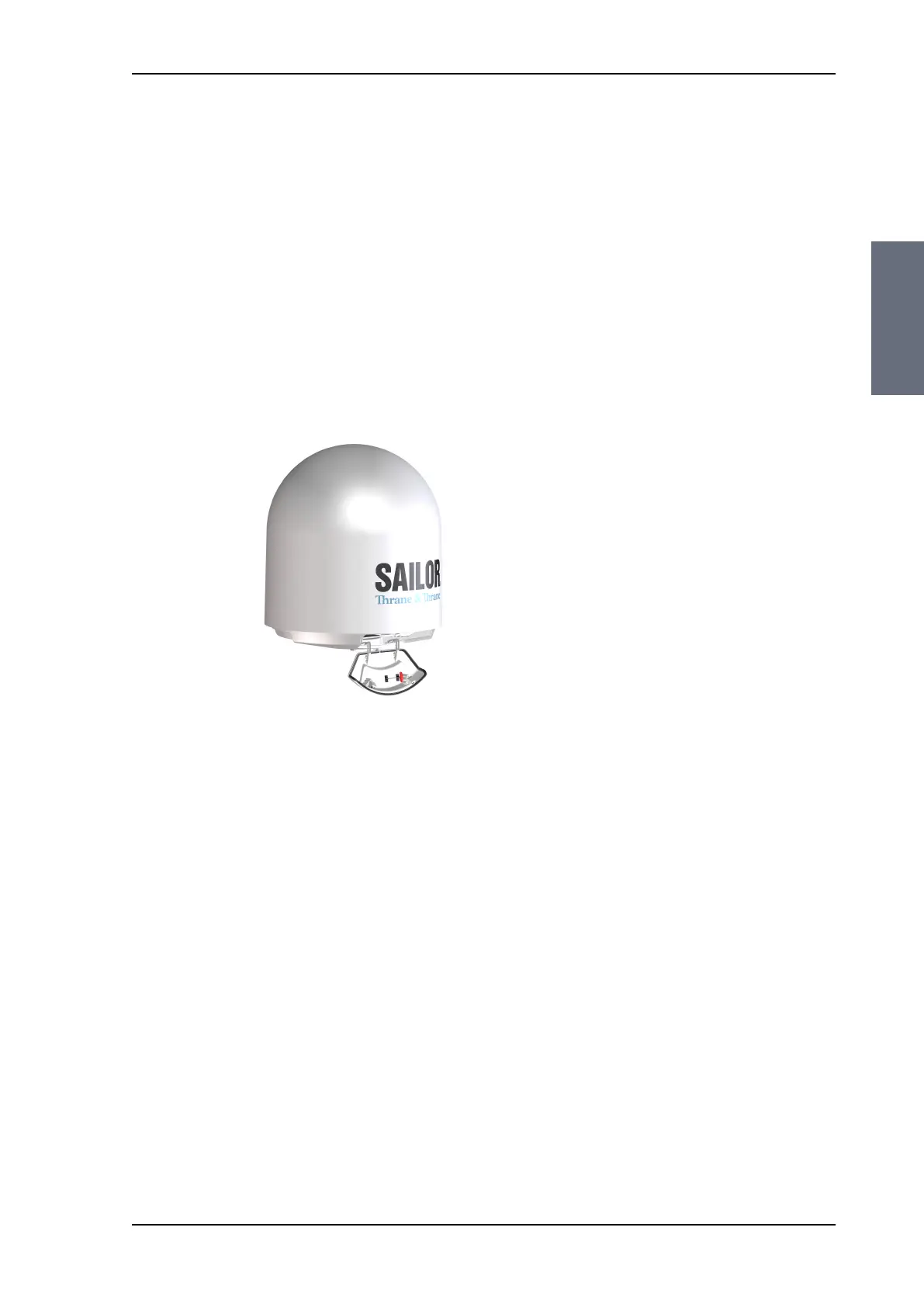

Figure 2-2: Above Deck Unit (ADU)
