Removal and replacement of ADU modules
98-137654-A Chapter 8: Service & maintenance 8-59
8888
Service & maintenance
4. Press in and turn the elevation locking pin to locked position.
5. Disconnect the power connector of the Polarisation motor.
6. Slide the polarisation belt off the LNB belt wheel by pulling the
belt while turning the LNB back and forth.

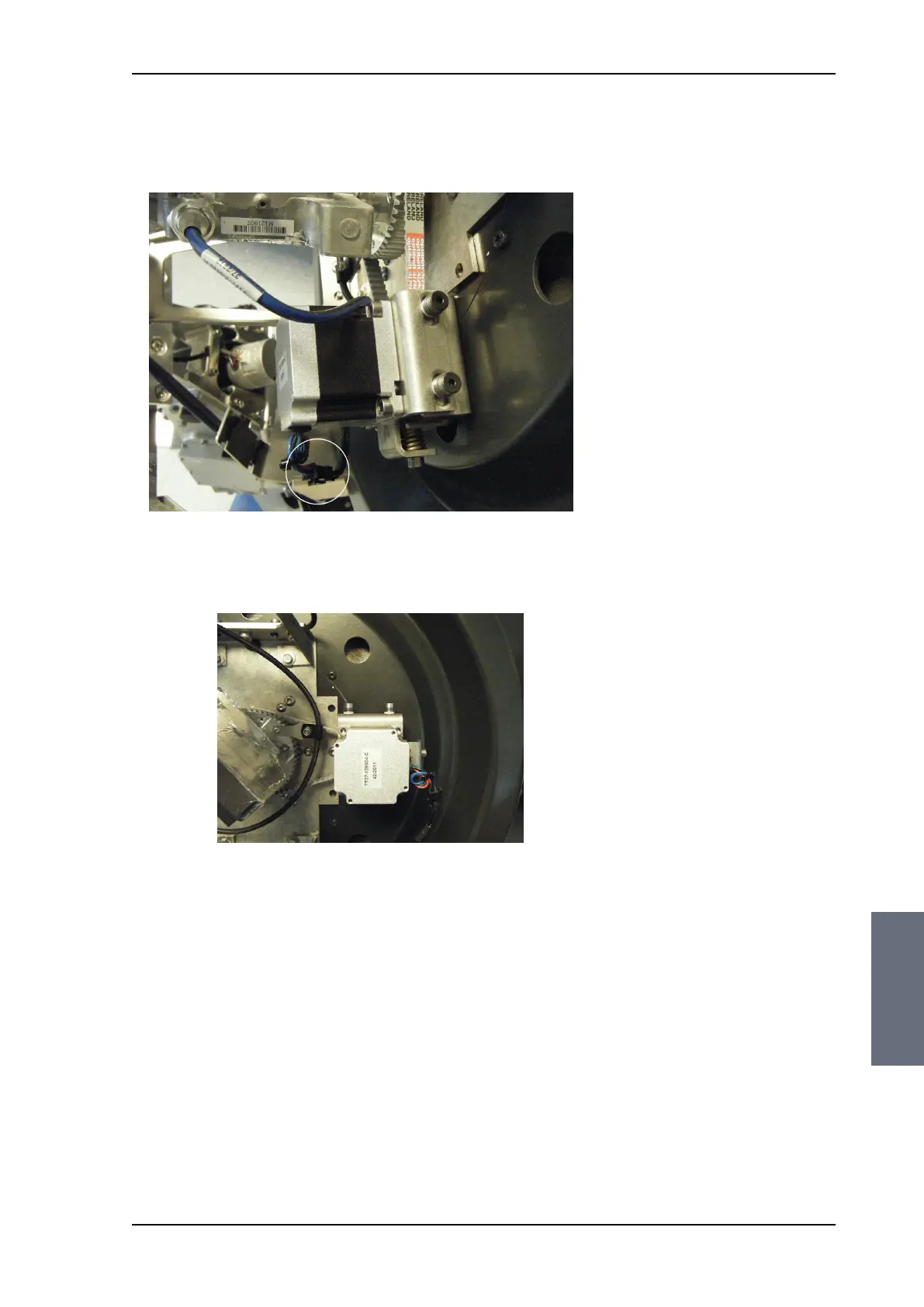

Figure 8-70: Polarisation motor — disconnect power
Figure 8-71: Polarisation belt — slide off 1/2
