Grounding Recommendations
98-137654-A Appendix B: Grounding and RF protection B-3
BBBB
Grounding and RF
grounded and mount a grounding kit on top of the foil. For
details on the jumper cable see Jumper cable for grounding
on page B-14.
Per used jumper cable the maximum cable length of the cable
to the antenna is reduced by:
• Enviroflex 400: 1.25 m
• SPUMA 400-FR: 6 m
• SUCOFEED 1/2" FR: 10 m
B.2.2 Grounding the ADU
You can ground the ADU to the ship/hull via one or more of its
mounting bolts. Make sure to remove painting, dirt, grease
etc. at the mounting holes in order to make good electrical
contact to the hull. Use serrated washers when securing the

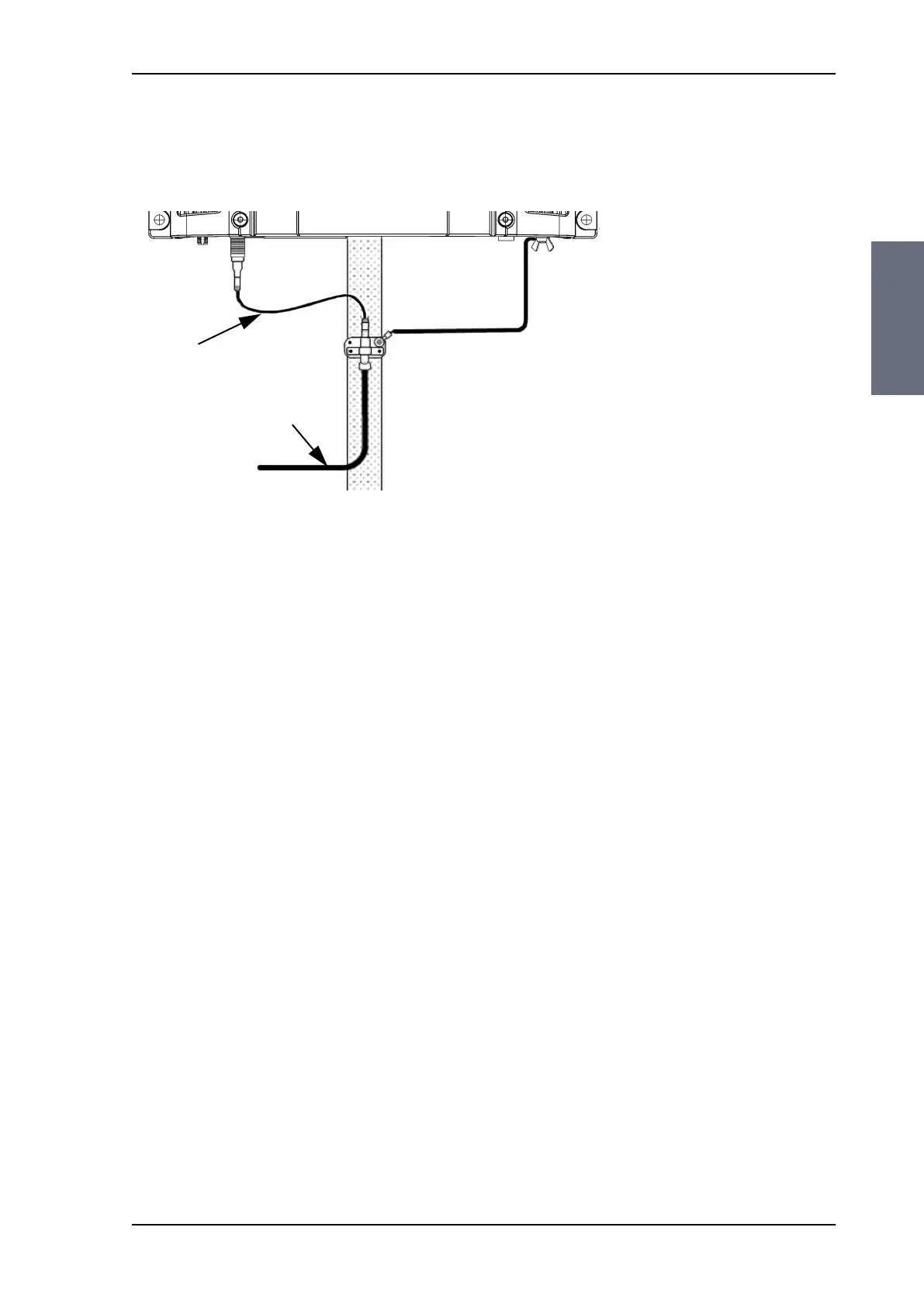

Figure B-1: Extending the ground plane
Jumper cable
Cable to ADU
