Sailor 100 - Figure 8-40: Azimuth Motor, Loosen the Screws for the Motor Assembly; Inserting a New Azimuth Motor

Removal and replacement of ADU modules
8-38 Chapter 8: Service & maintenance 98-137654-A
10. Loosen the 4x4 mm Allen screws (thread size M5) from the motor
assembly.
11. Slide free in the key holes of the motor assembly and remove the
motor.
8.5.6.4 Inserting a new Azimuth Motor
To insert a new Azimuth Motor follow the instructions above in
reverse order — while observing the following guidelines:
1. String the Azimuth belt around the pulley of the motor assembly
and around the belt tensioner.

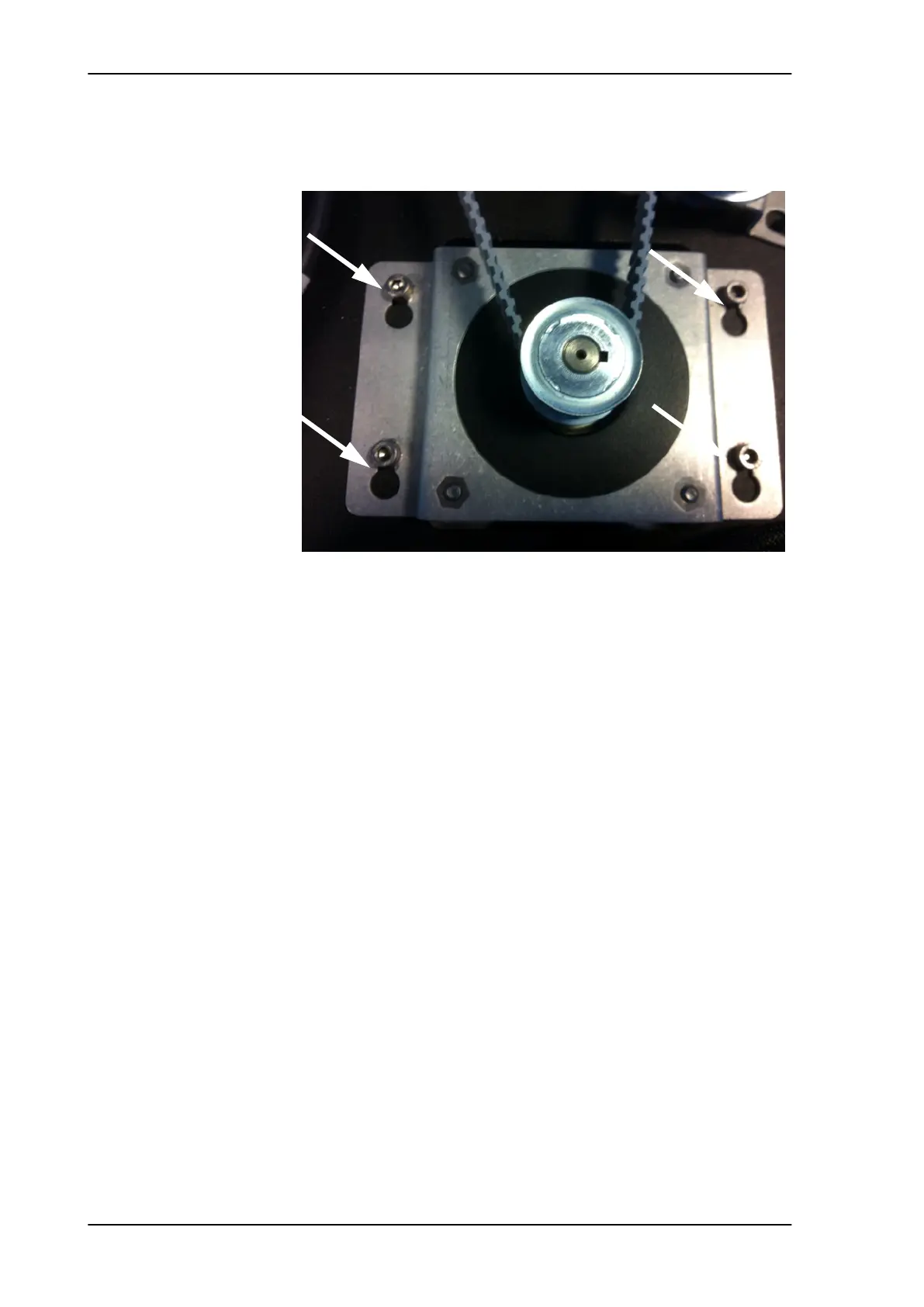

Figure 8-40: Azimuth motor, loosen the screws for the motor assembly
