Installation of the ADU
98-137654-A Chapter 3: Installation 3-19
3333
Installation
4. Attach a webbed, four-part sling with a belt to all 4 lifting
brackets.
5. Attach 2 tag lines of suitable length to 2 lifting brackets and man
them.
6. With a crane lift the ADU off the wooden platform and move it on
top of the ADU mast.
7. Install the ADU on the mast flange with 4 M12 bolts and washers.
Read carefully and follow instructions given in Grounding the
ADU on page B-3.
Tightening torque value: 30 Nm

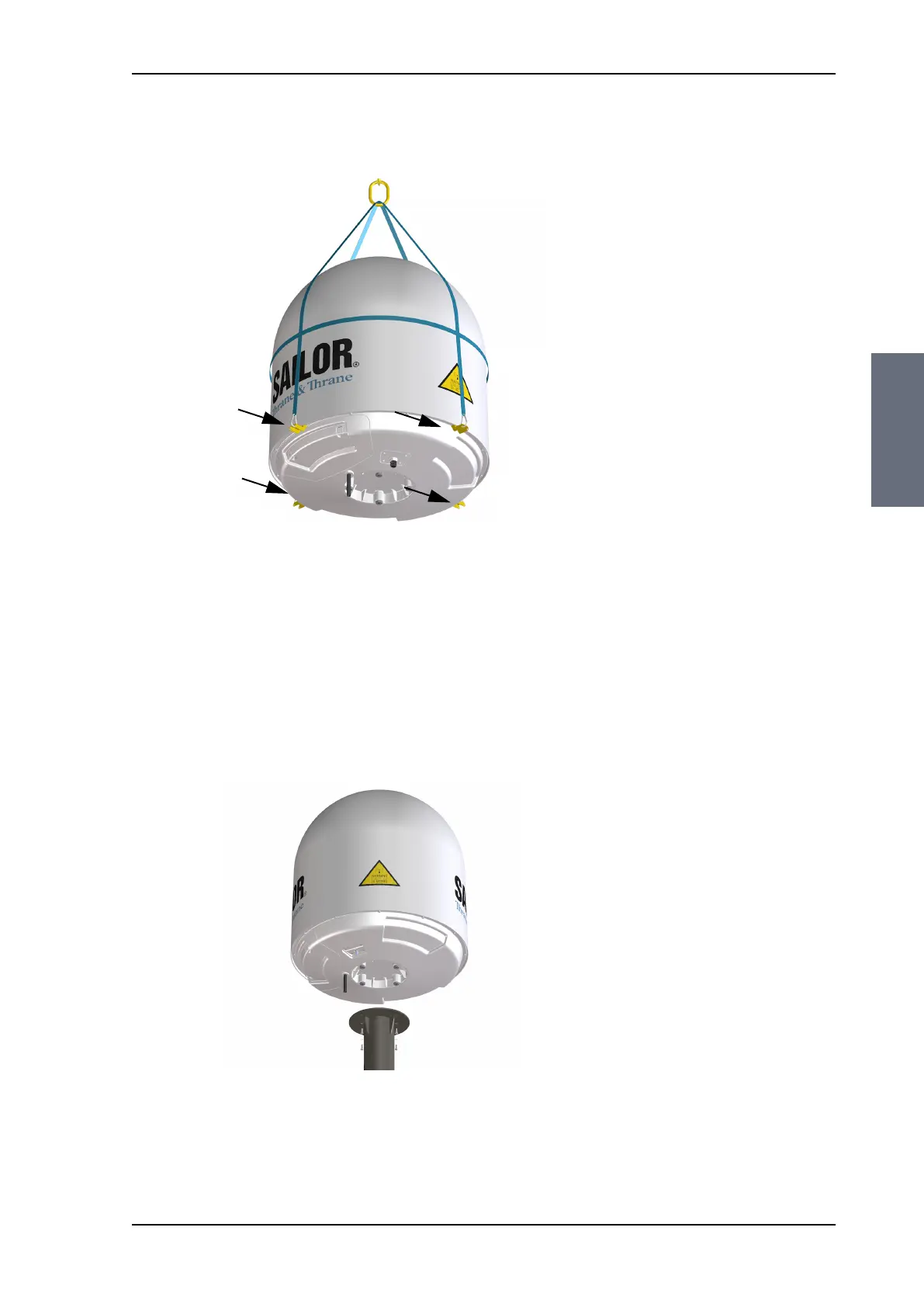

Figure 3-15: ADU installation, webbed sling attached to the 4 lifting brackets
Figure 3-16: Mounting the ADU on the mast flange
SAILOR100TM.book Page 19 Tuesday, January 29, 2013 2:44 PM
