Interfaces of the SAILOR 100 Satellite TV ACU
4-6 Chapter 4: Interfaces 98-137654-A
4. IIHDT (Integrated Instrument)
5. HCHDT (Magnetic compass)
Recommended NMEA 0183 cable:
Two-wire constructed with one enclosed shield
Network signal pair:
• Size: No. 24 AWG (0.24 sq. mm) or heavier
• Characteristic impedance: 95 - 140 Ohm
• Propagation delay: 5 nanoseconds per meter, maximum
• 15 Twists (minimum) per meter
4.1.9 DB9 connector
The 2 DB9 connectors are reserved for future use.
4.1.10 LAN1, LAN2, LAN3 and LAN4 connectors
Four Ethernet connectors (type RJ45) for PC/laptops, routers,
wireless access points. The maximum cable length per connection is
100 m.
For information how to configure the LAN network see Configuring
the LAN network on page 6-25.
Cable type: CAT5, shielded.

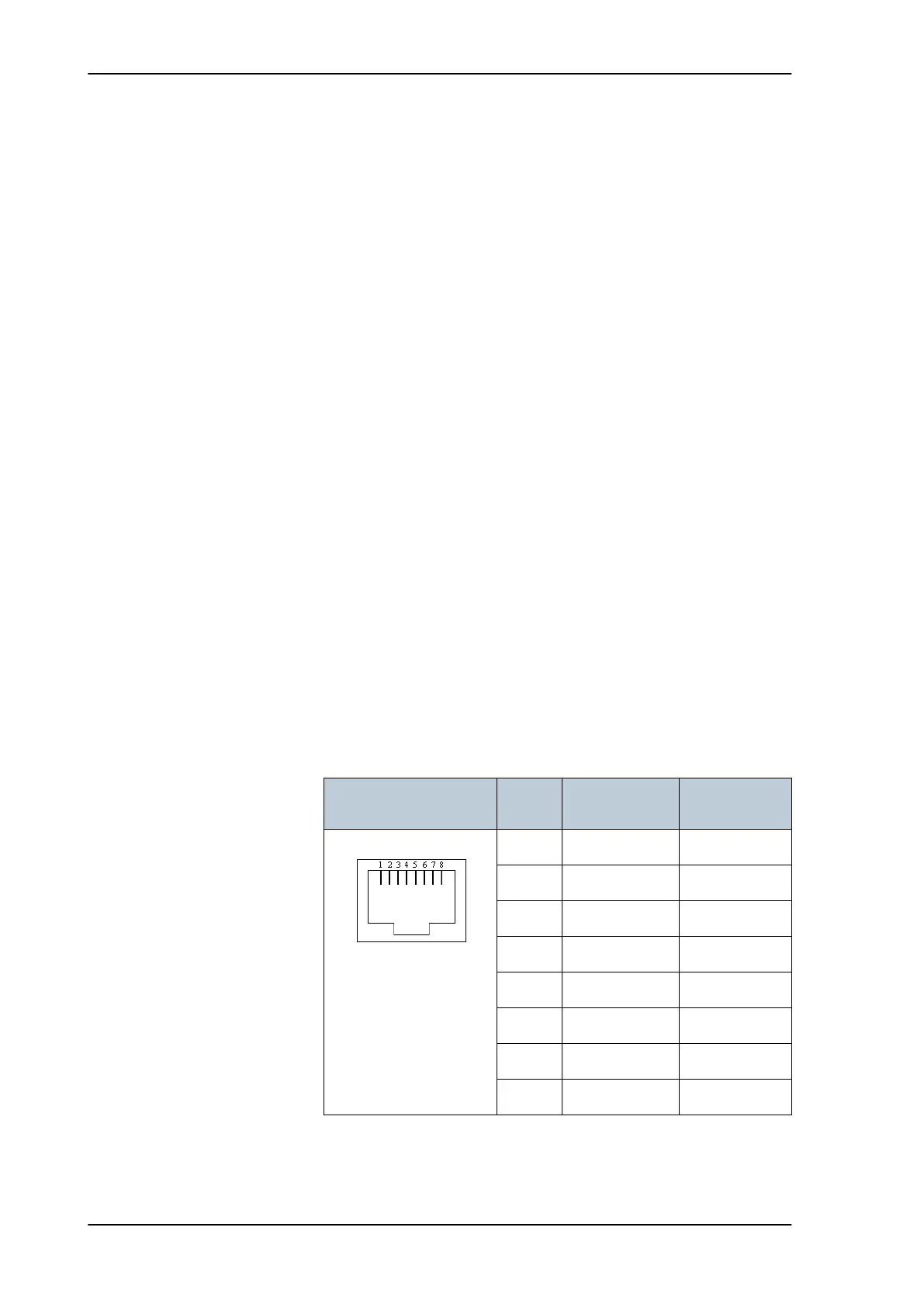

Outline
Pin
number
Pin function Wire color
1 Tx+ White/orange
2 Tx- Orange
3 Rx+ White/green
4 Not connected Blue
5 Not connected White/blue
6 Rx- Green
7 Not connected White/brown
8 Not connected Brown
Table 4-5: Ethernet connector, outline and pin assignment
