SAILOR 100 Satellite TV system
2-2 Chapter 2: Introduction 98-137654-A
The following figures show the SAILOR 100 Satellite TV system .
2.1.0.1 SAILOR 100 Satellite TV features
 Simple installation with one 50 Ohm coax cable between ADU
and ACU.
 Full remote control and troubleshooting with built-in test
equipment (BITE).
 ACU with 4 x LAN, NMEA 0183, NMEA 2000
 Quattro TV outputs (4/2 TV bands output simultaneously) VL, HL,
VH, HH for linear setting of polariser or LHCP, RHCP for circular
mode setting of polariser.
 Programmable LNB LO frequencies
 No scheduled maintenance.
 Tracking of any Ku-band satellite
 Low audible noise emission from ADU.

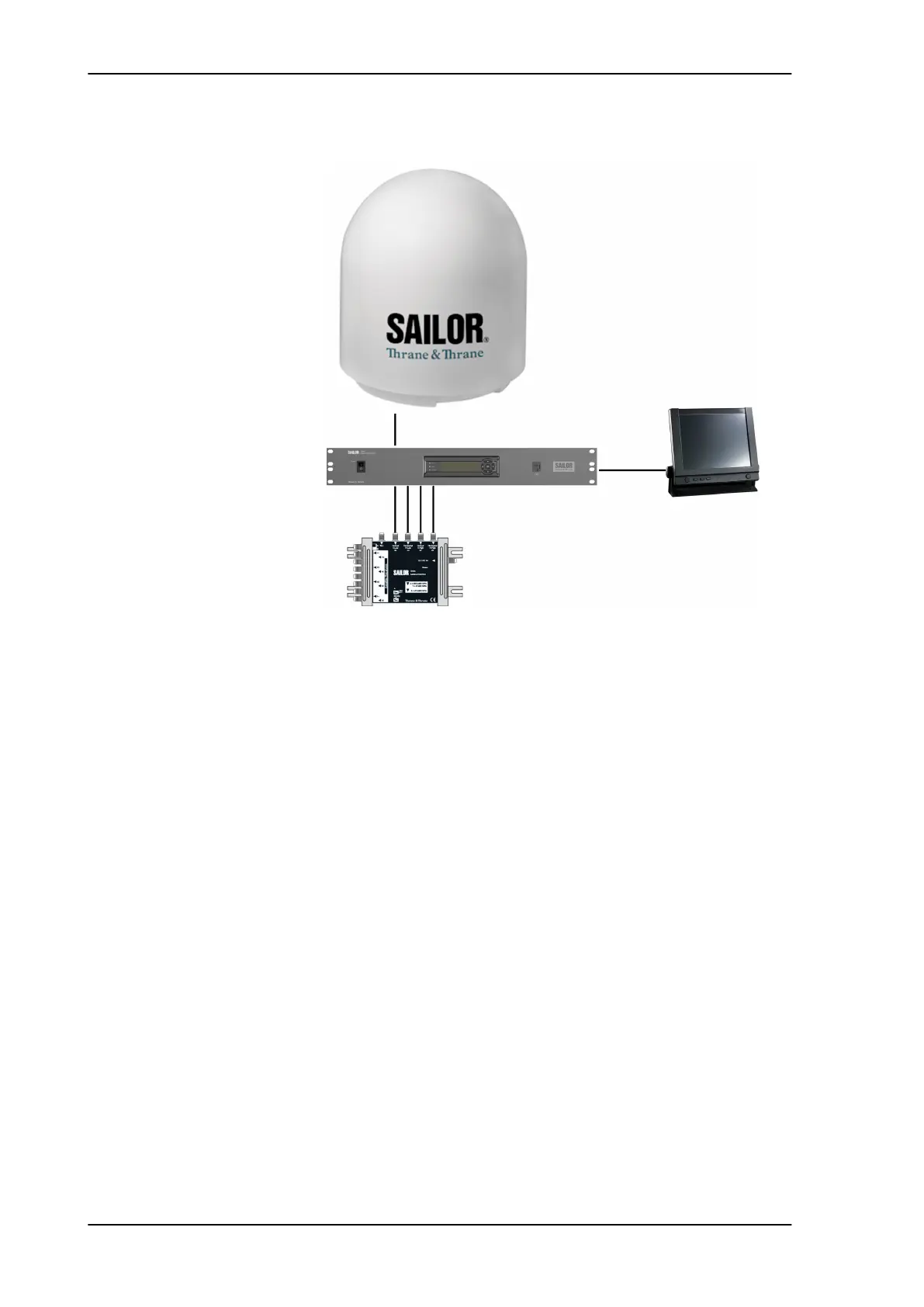

Figure 2-1: ADU, ACU, Control Panel and Multiswitch (optional)
ADU
ACU
Control Panel
Multiswitch (optional)
