Removal and replacement of ADU modules
8-60 Chapter 8: Service & maintenance 98-137654-A
7. Remove the LNB by loosening the 3x4 mm Allen screws.
8. Slide the belt off the motor-belt wheel by twisting the belt
vertically and pulling it through the gap. (If the motor needs to be
removed during the removal of the belt, please see Removing the
Polarisation Motor on page 8-48.
8.5.7.8 Inserting a new Polarisation Drive Belt
To insert a new Polarisation Drive Belt follow the instructions above
in reverse order.

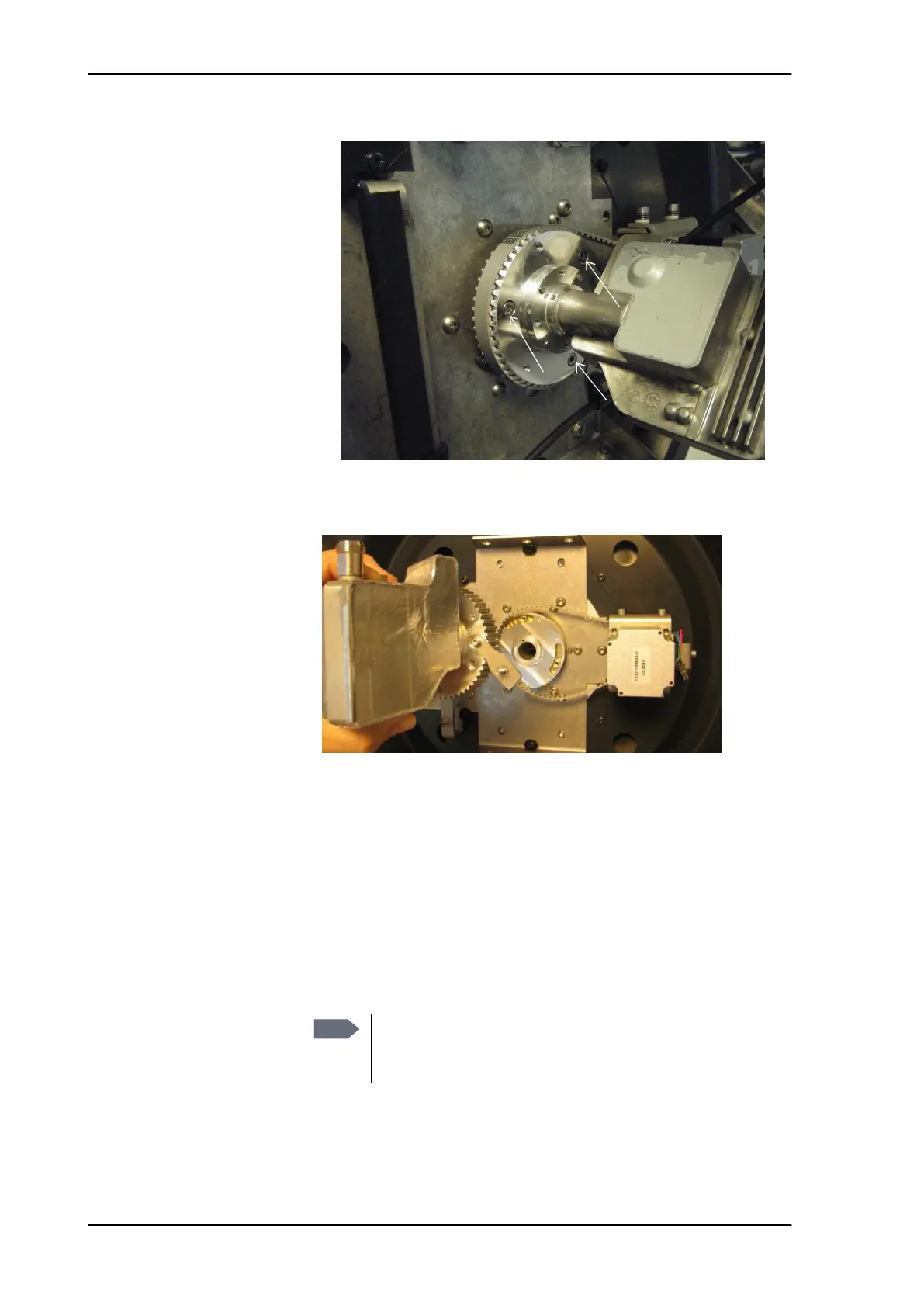

Figure 8-72: Polarisation belt — slide off 2/2
Figure 8-73:
Note
When tightening the 3 screws holding the LNB it is
important that you alternate between the 3 when
tightening them. Do not tighten one at a time!
SAILOR100TM.book Page 60 Tuesday, January 29, 2013 2:44 PM
