Removal and replacement of ADU modules
8-42 Chapter 8: Service & maintenance 98-137654-A
8. Loosen the belt tension device by loosening the 4x4 mm Allen
screws (thread size M5)and slide out the Azimuth Encoder.
9. Adjust the belt-tension screw to middle position.

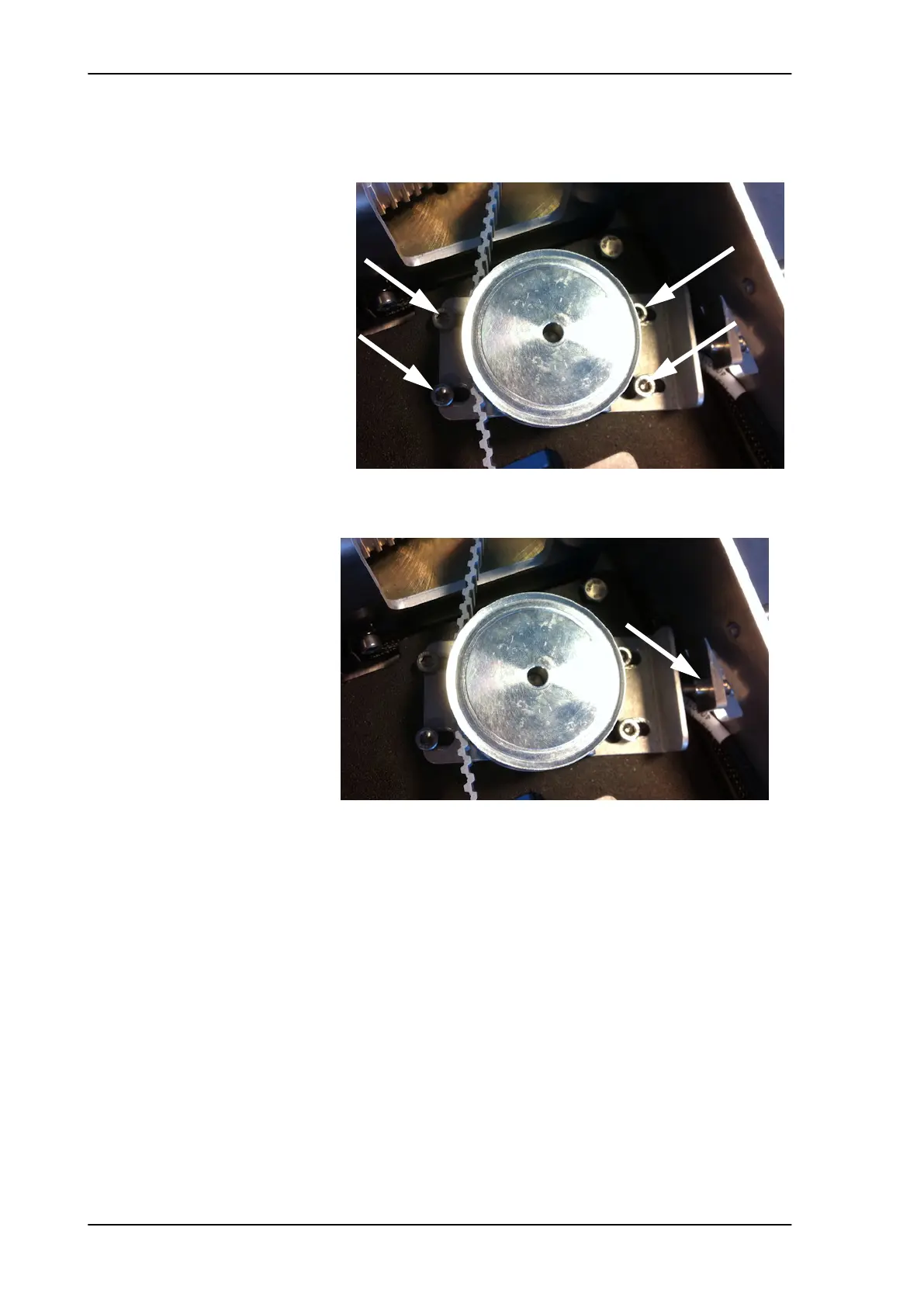

Figure 8-46: Azimuth encoder, remove
Figure 8-47: Azimuth encoder, adjust belt tension
