Removal and replacement of ADU modules
98-137654-A Chapter 8: Service & maintenance 8-63
8888
Service & maintenance
6. Disconnect the connector from the Zero Reference Module.
7. Through the 2 holes (above the Cross Elevation DDM) in the
pedestal loosen the 2x4 mm Allen screws.
8. Slide out the X Elevation ZRM.

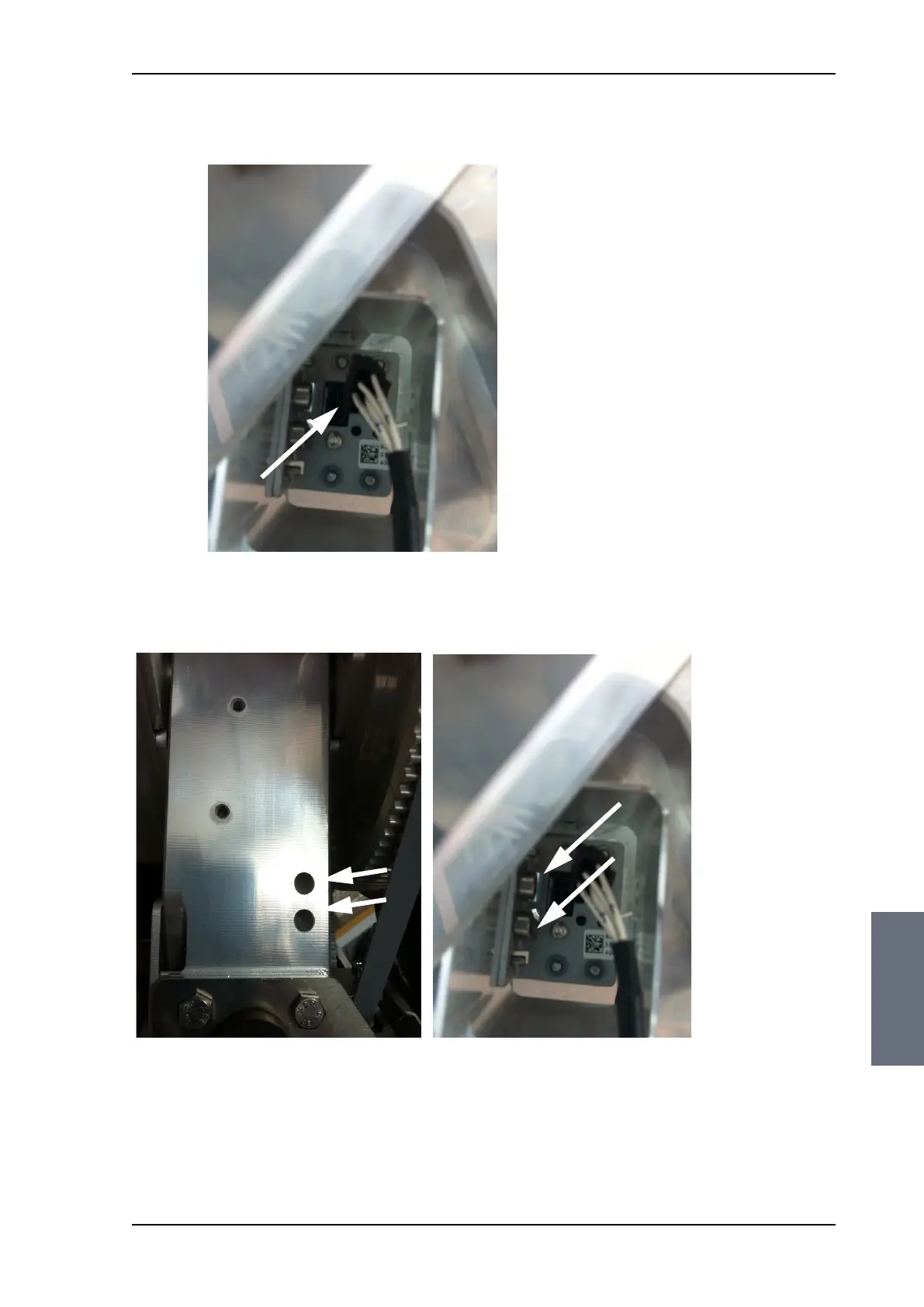

Figure 8-76: X Elevation ZRM, disconnect connector
Figure 8-77: X Elevation ZRM, slide out
