Sailor 100 - Figure 8-60: Removing the Cable Drum; Inserting a New X Elevation Drive Belt

Removal and replacement of ADU modules
8-52 Chapter 8: Service & maintenance 98-137654-A
6. Remove the cable drum by removing the 4x4 mm Allen screws
(thread size M5) and leave the cable drum hanging in the cables.
7. Remove the Cross Elevation Drive Belt.
8.5.7.2 Inserting a new X Elevation Drive Belt
To insert a new X Elevation Drive Belt the instructions above in
reverse order — while observing the following mounting guidelines:
Follow the instructions given in Inserting a new X Elevation Motor
and Encoder on page 8-46.

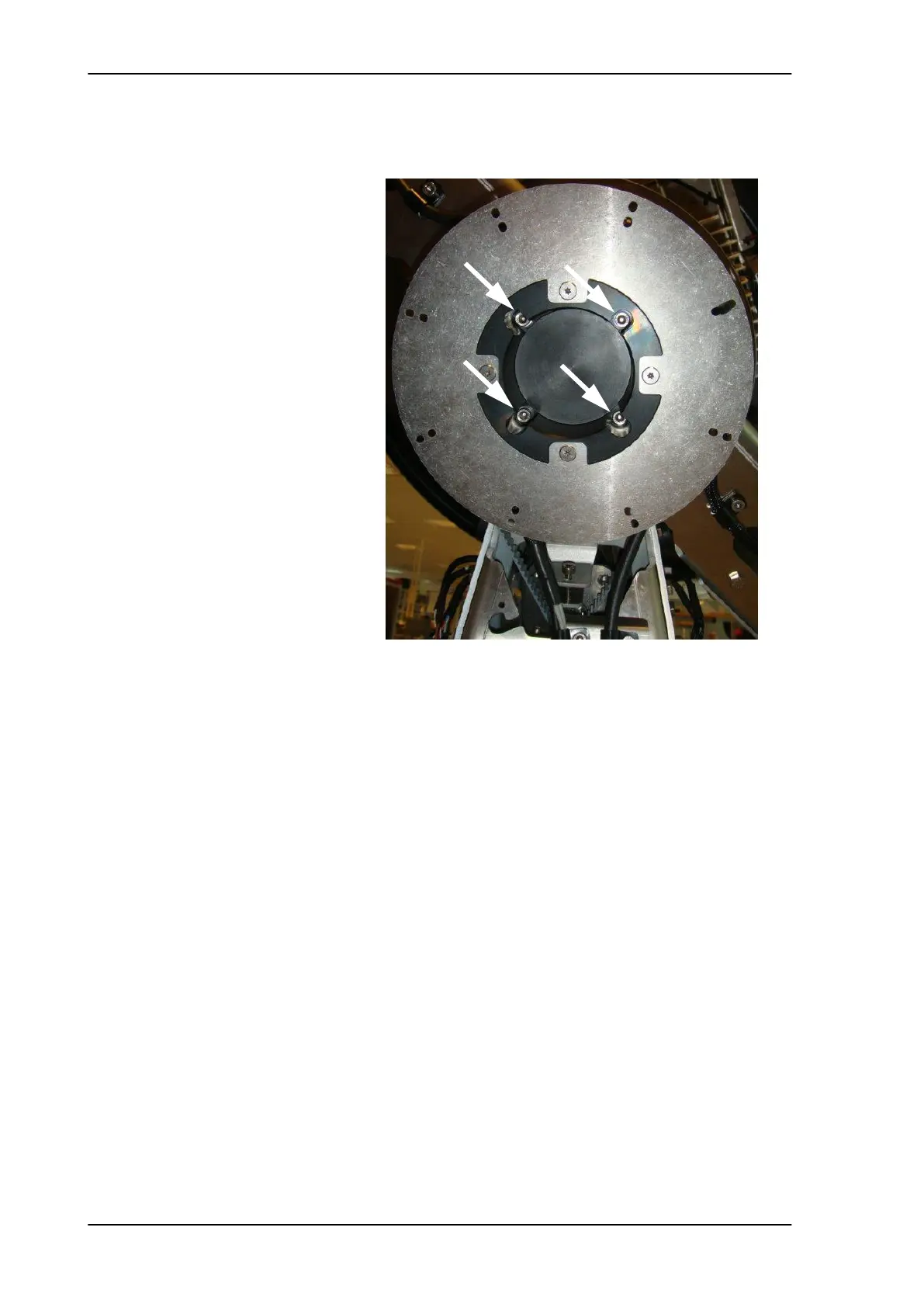

Figure 8-60: Removing the cable drum
