Removal and replacement of ADU modules
98-137654-A Chapter 8: Service & maintenance 8-53
8888
Service & maintenance
8.5.7.3 Removing the Elevation Drive Belt
To remove the Elevation Drive Belt, do as follows:
1. Open the service hatch by releasing the two latches with Torx
screws.
2. Switch off the power to the antenna on the service switch.
3. Rotate the Antenna Pedestal so the Elevation Drive Belt faces the
service hatch.
Tools needed:
• 4 x 150 mm Allen key
(located inside the
service door of the ADU)
• Acoustic frequency meter

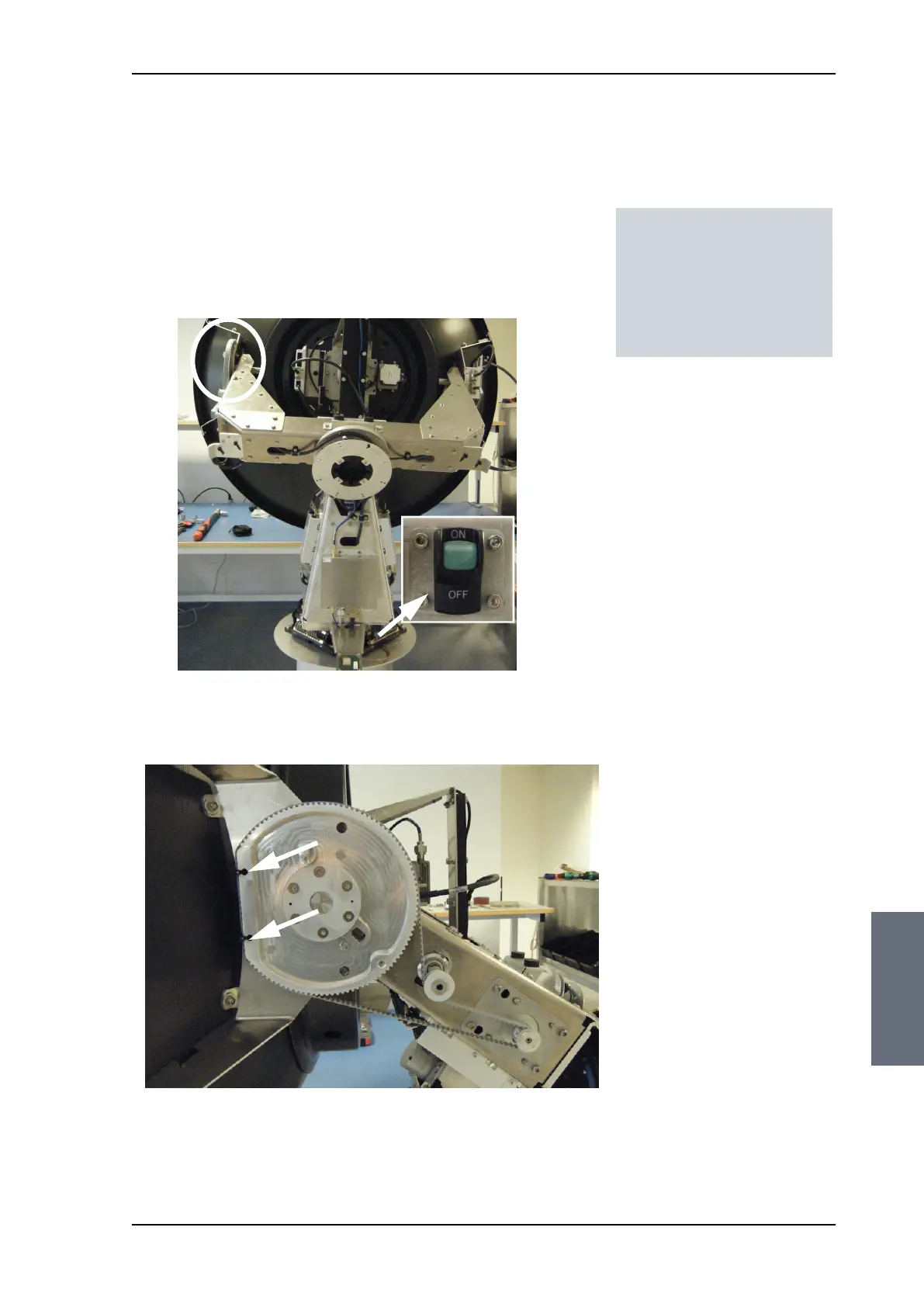

Figure 8-61: Location of the Elevation Drive Belt
Figure 8-62: Elevation Drive Belt
