Removal and replacement of ADU modules
8-54 Chapter 8: Service & maintenance 98-137654-A
4. Cut the 2 plastic tie-wraps used to fixate the belt on the elevation
drive wheel.
5. By compressing the belt tension pulley upwards and moving the
dish back and forth, the belt can be slid off the pulley.
6. Remove the Elevation Drive Belt.
When replacing both motor and belt, always mount the motor first
in the same position as before to maintain correct belt tension.
Always verify that belt tension is correct, using a belt tension meter
device (e.g. an Optibelt frequency measuring device or similar).

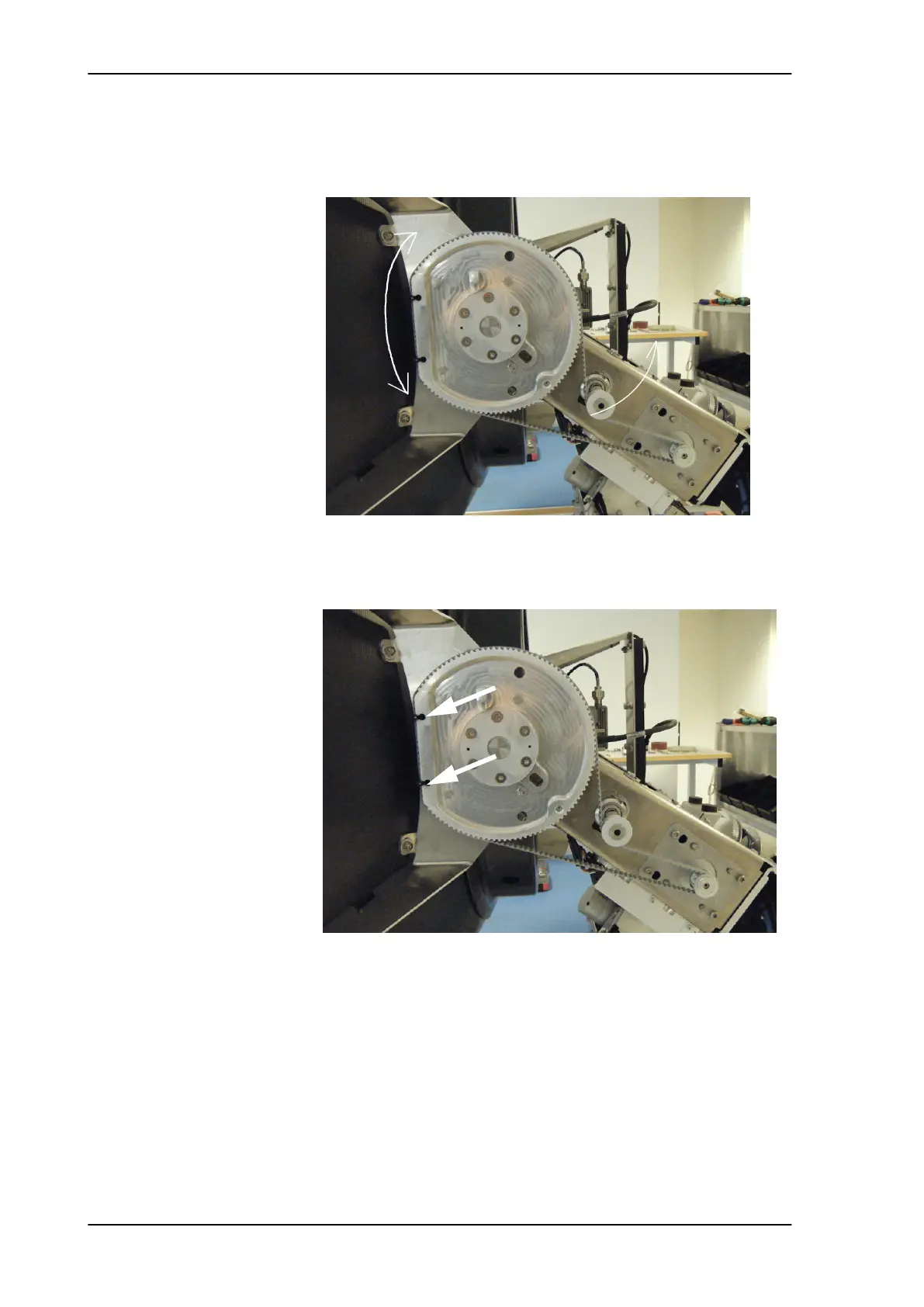

Figure 8-63: Elevation Drive Belt — removal
Figure 8-64: Elevation Drive Belt
