6.3.2.1 Information fields on the Dashboard

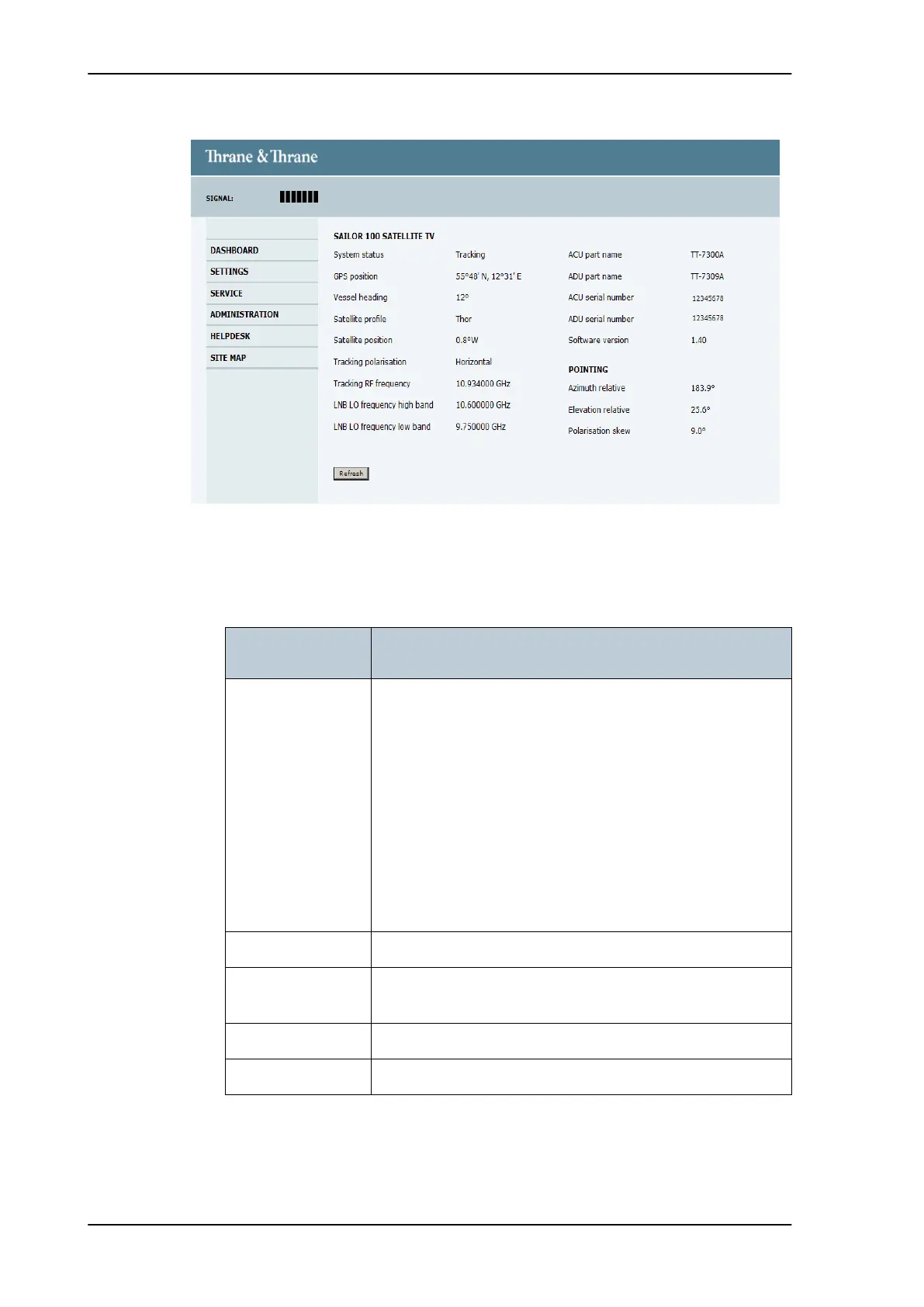

Figure 6-6: Web interface: DASHBOARD
SAILOR 100 Satellite
TV parameter
Description
System status Current status of the SAILOR 100 Satellite TV
.
Examples:
Not ready (waiting for input from GNSS, e.g. GPS)
Ready (no satellite profile selected)
Pointing antenna (locating the satellite)
Acquiring signal (acquiring the satellite signal)
Tracking (tracks the current satellite)
Frequency scanning (scanning for transponders)
Blocking zone (antenna is pointing into a blocking zone)
Service switch (service switch in ADU activated)
Safe mode (error, followed by an error description)
GPS position Current position of the vessel, reported by the GPS module
Vessel heading Ship’s heading in degrees with reference to North, provided by
the ship’s gyro.
Satellite profile Name of the currently active satellite profile.
Satellite position Position of the satellite selected in Satellite profile.
Table 6-5: Web interface, DASHBOARD, SAILOR 100 Satellite TV parameters
