2. Tighten the 4x4 mm Allen screws (thread size M5) from the motor
assembly.
3. Adjust the belt tension using the belt-tension adjustment screw.
The tension of the belt is 90-100 Hz on average (use an Optibel
frequency measuring device or alike).

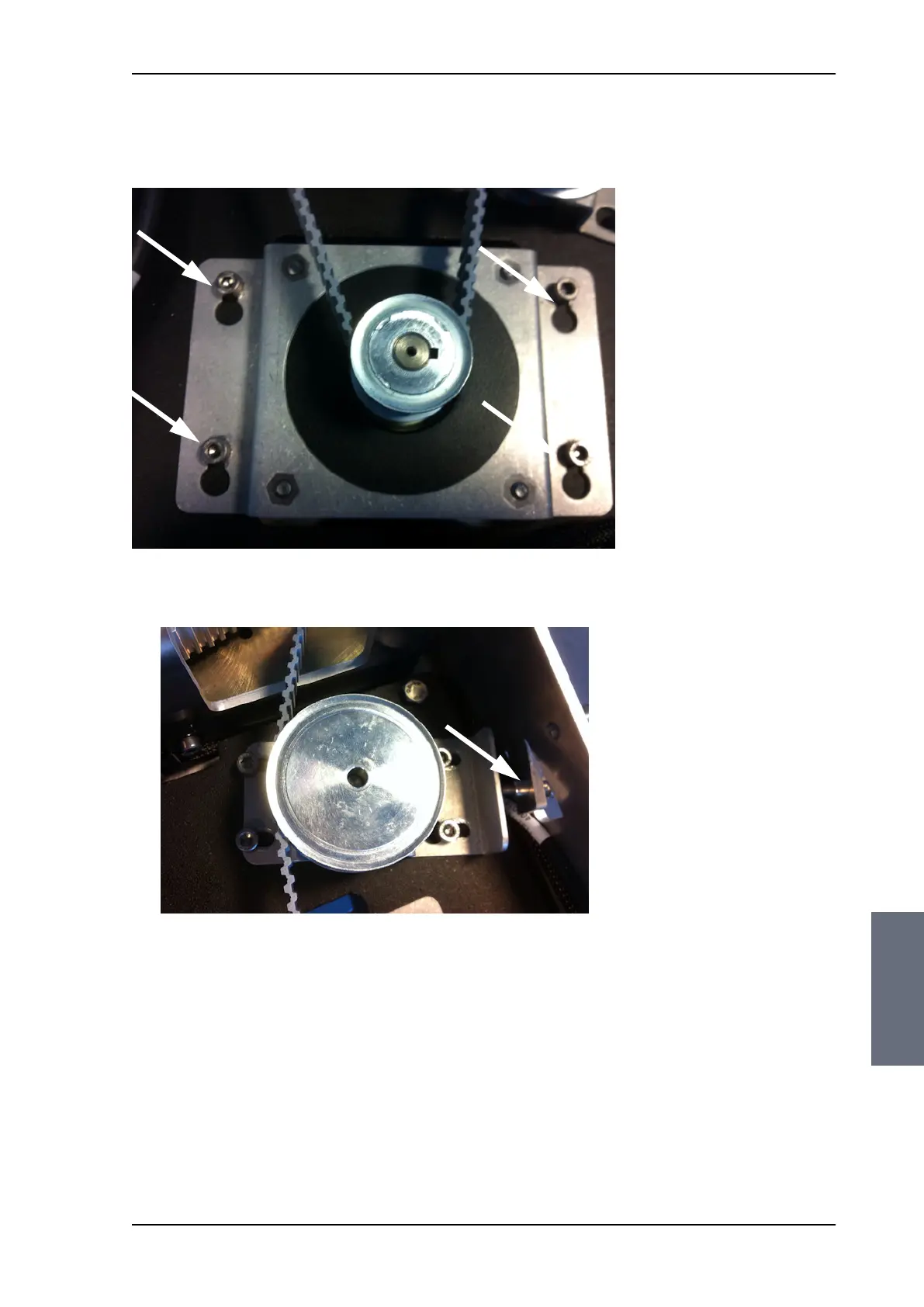

Figure 8-41: Azimuth motor, tighten the screws for the motor assembly
Figure 8-42: Azimuth motor, adjust belt tension
