SAILOR 100 Satellite TV system
2-6 Chapter 2: Introduction 98-137654-A
2.1.1.2 SAILOR 100 Satellite TV ADU interface
All communication between the ADU and the ACU passes through a
single standard 50 Ohm cable (with N connector) through the rotary
joint. No cable work is required inside the radome.
2.1.1.3 Programmable LNB
In different regions different LO frequencies are used to receive TV
signals. The SAILOR 100 Satellite TV has a programmable LNB that
allows you to create and edit region-specific satellite profiles with
the appropriate LNB LO frequencies. This feature makes the system
truly global and independent of channel providers.
For further information how to select the appropriate LNB LO
frequencies see Satellite profiles — New entry and Edit on page 6-14
and Creating or editing a profile on page 6-40.
2.1.1.4 Installation friendly
Four lifting brackets (included in the delivery) and reuse of packing
material help getting the ADU safely into place. Satellite profile
parameters are entered using the Control Panel or the built-in web
server of the ACU, using a PC.

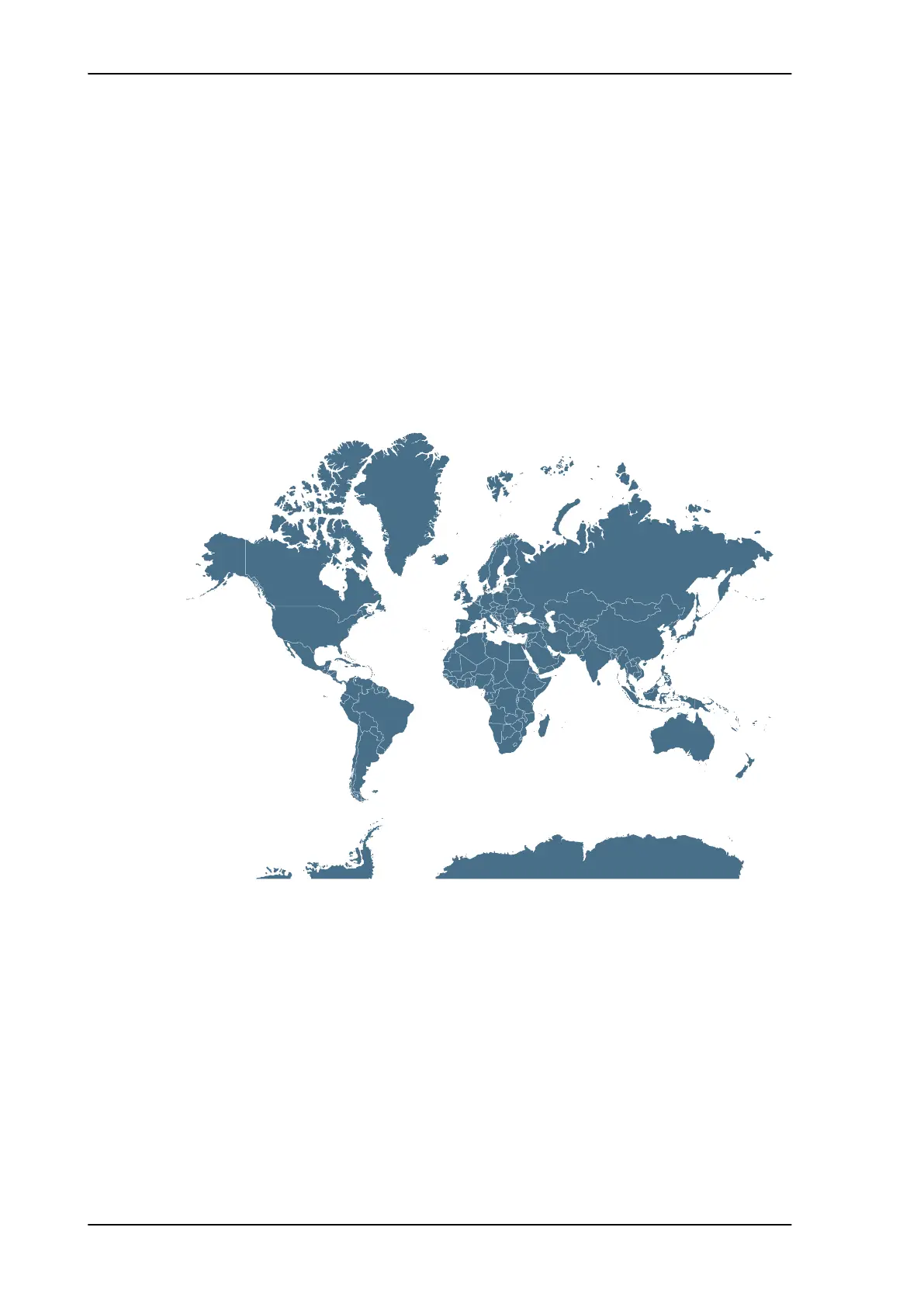

Figure 2-5: Examples of LNB LO frequencies used worldwide
11.25
GHz
10.5 GHz
R/L
10.678
GHz
11.3 GHz
H/V
10.7 GHz
H/V
9.75/10.6 GHz
H/V
11.25
GHz
9.75/10.6 GHz
H/V
