Sailor 100 - Figure B-8: ADU Isolation and Grounding Cable

Separate ground cable
98-137654-A Appendix B: Grounding and RF protection B-13
BBBB
Grounding and RF
Remember to seal the joint with protective coating to avoid
corrosion.

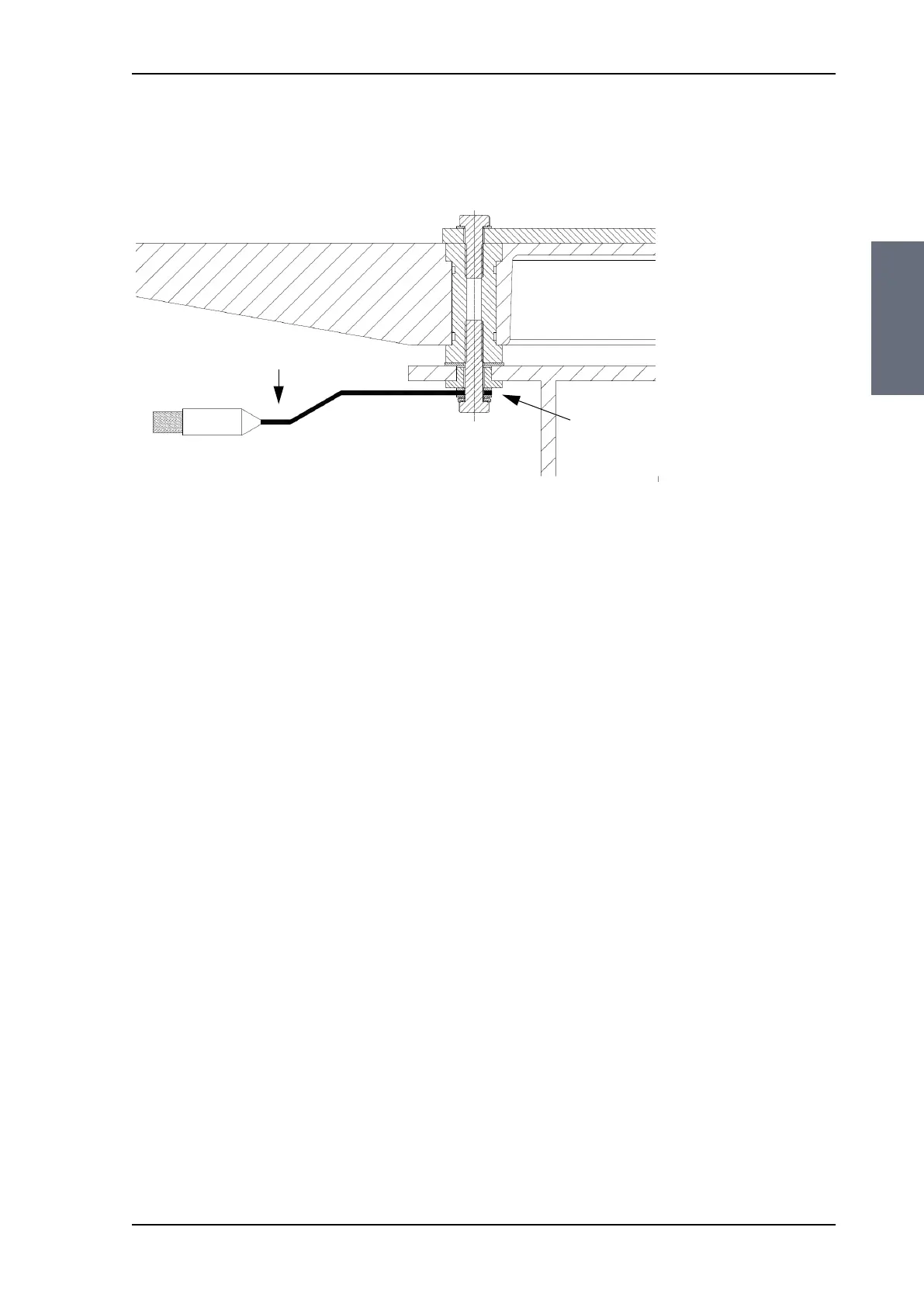

Figure B-8: ADU isolation and grounding cable
Isolating shoulder bush
Plain washer (stainless steel)
Spring washer (stainless steel)
Plain washer (stainless steel)
Serrated washer (stainless steel)
Ground cable
Ground cable
