SAILOR 100 Satellite TV system
2-4 Chapter 2: Introduction 98-137654-A
2.1.1.1 Modules in the SAILOR 100 Satellite TV ADU
1. GPS module.
2. Television Interface Module (TIM).
3. DC-Motor Driver Module for cross elevation (DDM).
4. Cross elevation motor and encoder.
5. Zero Reference Module (3 pcs, 2 in Figure 2-3, 1 in Figure 2-4)
(ZRM) (not visible on photo).
6. DC-Motor Driver Module for elevation.
7. Elevation motor and encoder (on the side).

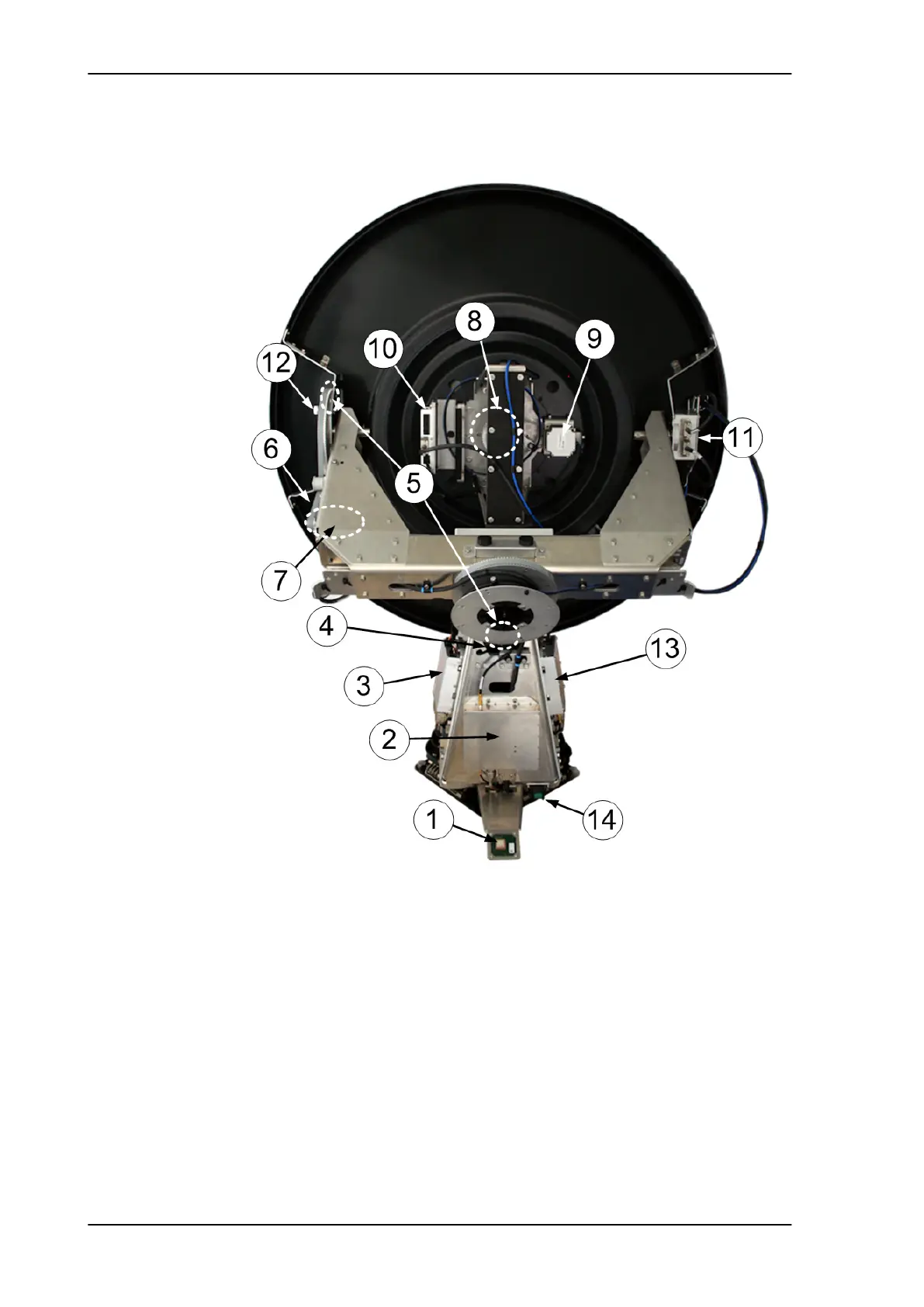

Figure 2-3: ADU modules 1/2
