Vista Digital Mixing System
Date printed: 05.08.03 SW V3.3 Desk Operation 2-3
2 VISTA DESK OPERATION
The desk consists of two types of bays: Up to seven identical fader bays
and exactly one control bay.
The fader bays contain the console channel strips with rotary controls,
faders, keys, and meters. Ten strips are located next to each other in one
bay. They are not dedicated to any DSP channel.
The control bay hosts the global desk operation controls, such as one TFT
display for the Graphic Controller, a keyboard, a trackball, (optional) joy-
sticks, a monitoring panel, a machine control panel, and global automation
controls. The minimum possible system size is two fader bays and one
control bay. The system contains the control PC and the power supplies for
the desk and the PC.
If a fader bay should fail to operate, the others will continue to work. In
such a case, access to all channels is provided nevertheless thanks to the
Vista desk scrolling feature.

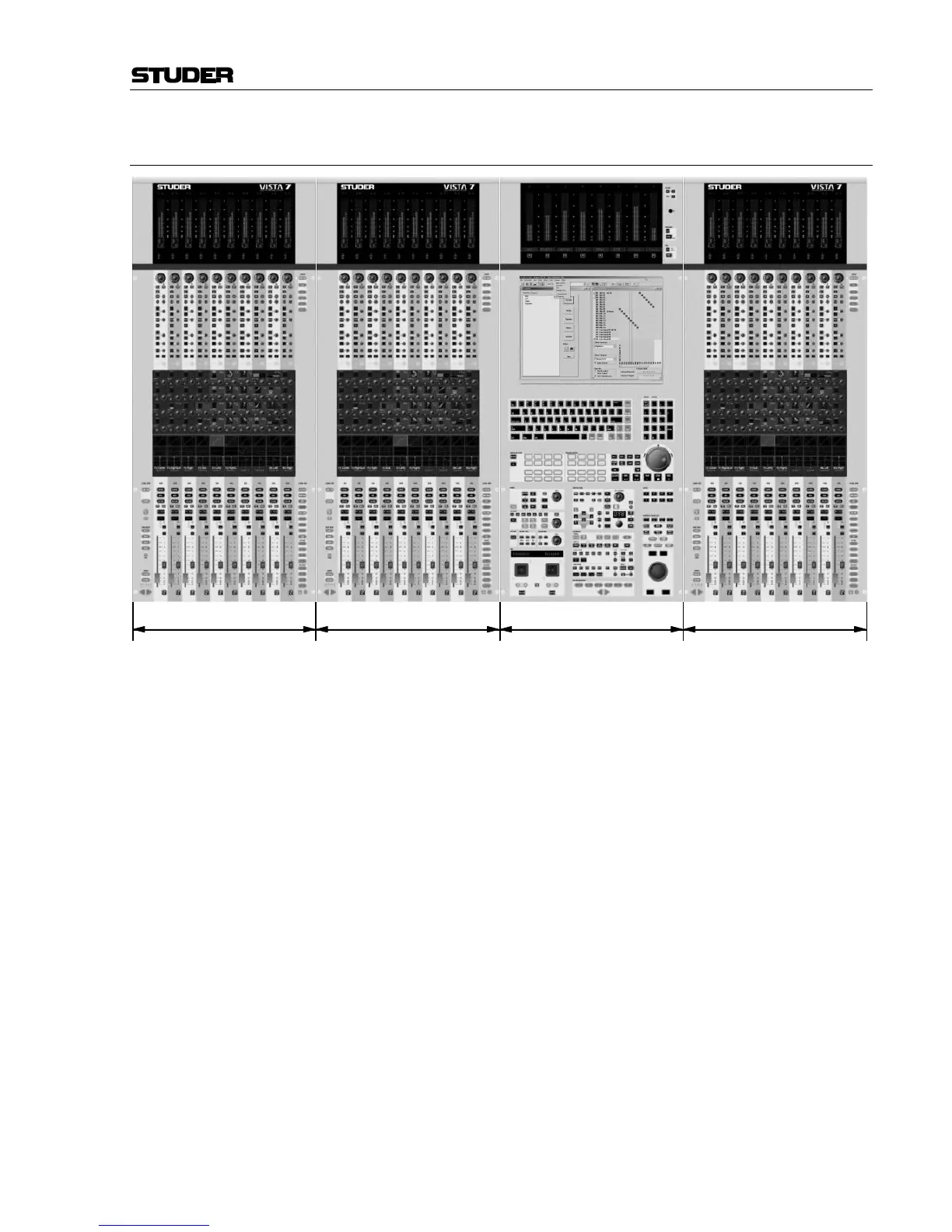

Fader Bay 1 Fader Bay 2 Fader Bay 3Control Bay
