Vista Digital Mixing System
Date printed: 20.08.09 SW V4.1 Software V4.1 43
C REDUNDANT BRIDGE CARD (FOR SCORE LIVE)
Since SW V4.1, a redundant Bridge card can be used in the SCoreLive, so
not only cable redundancy can be provided now, but also true bridge card
redundancy.
Order no. of the bridge card with this functionality is A943.0370.35; earlier
bridge cards cannot be updated to this level.
Note: When using a redundant bridge card, the SCoreLive’s maximum capacity
for DSP cards is reduced from 9 to 8 cards.

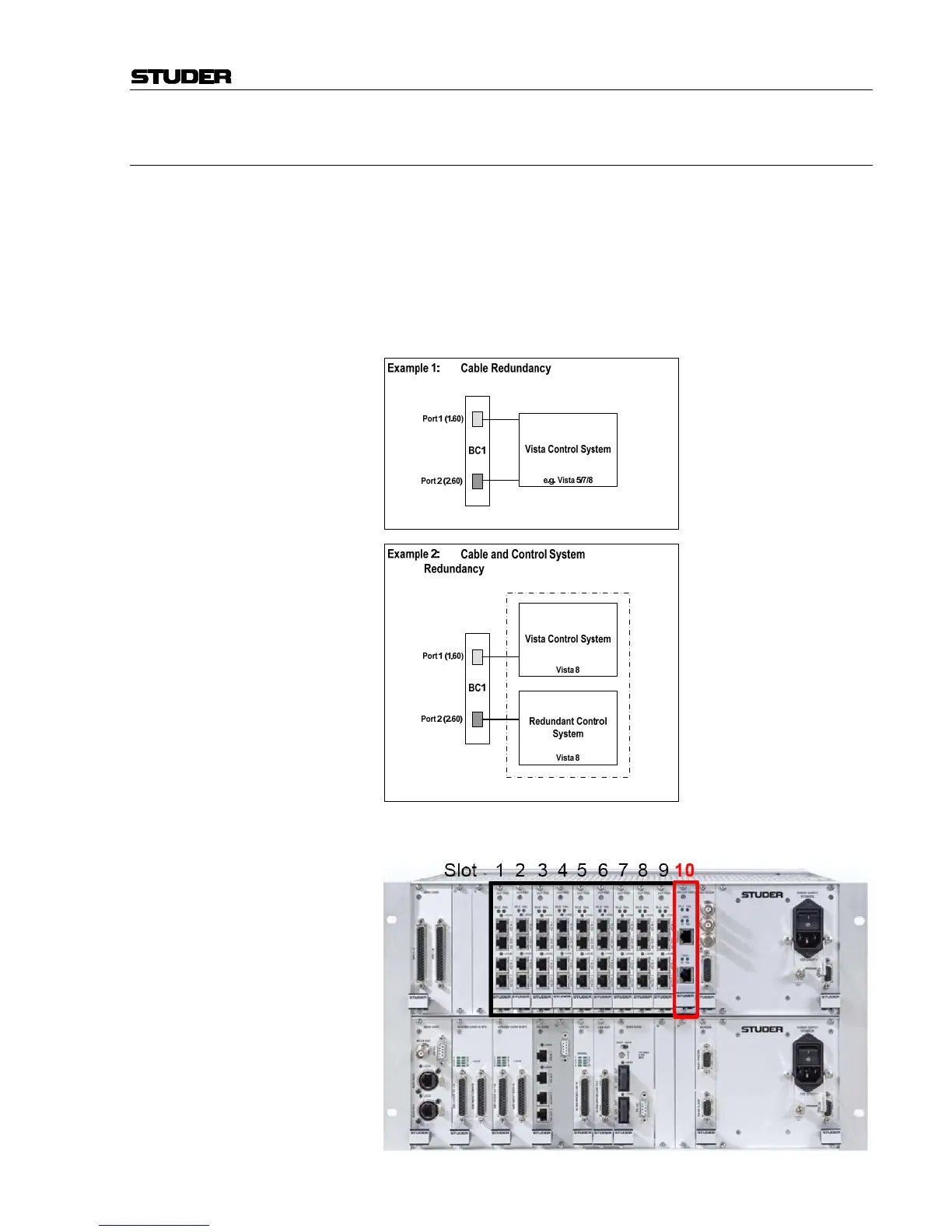

Setup Possibilities up to Now (i.e., pre-V4.1)
In the examples above, the (single) bridge card must be installed in slot 10
of the SCoreLive frame; the maximum number of DSP cards is 9.
