Vista Digital Mixing System
Date printed: 17.06.08 SW V4.0 Software V4.0 7
A.1.5 Metering
For level indication of the surround input signals, two possibilities
are available:

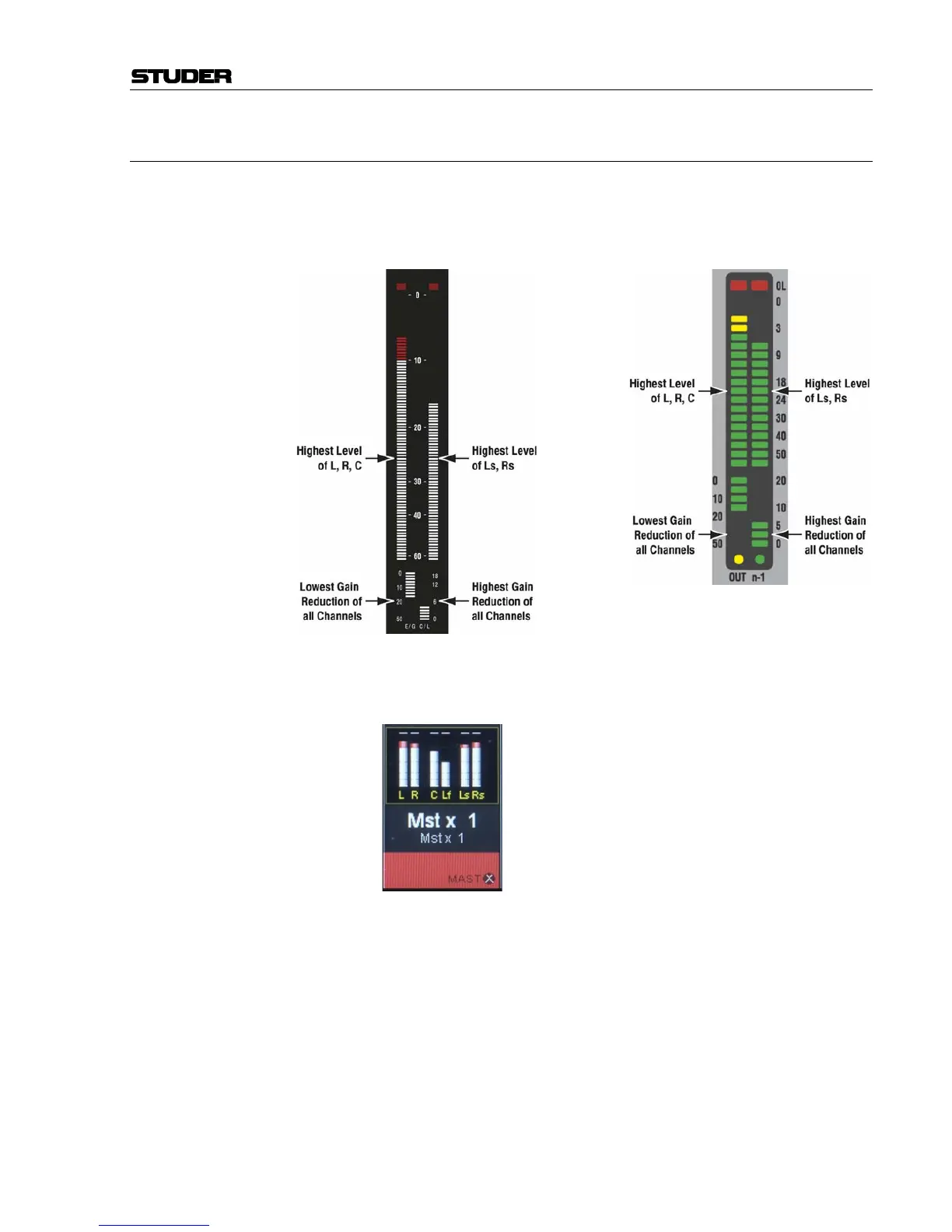

The channel meters indicate maximum level values of several signal
legs, as shown below (left: Vista 6/7/8, right: Vista 5).
Discrete levels of all surround input legs are displayed in the pan-
ning window of the Vistonics screen:
