Vista Digital Mixing System
3-12 Parameters SW V3.3 Date printed: 05.08.03
3.3.7 Delay and Insert Parameters

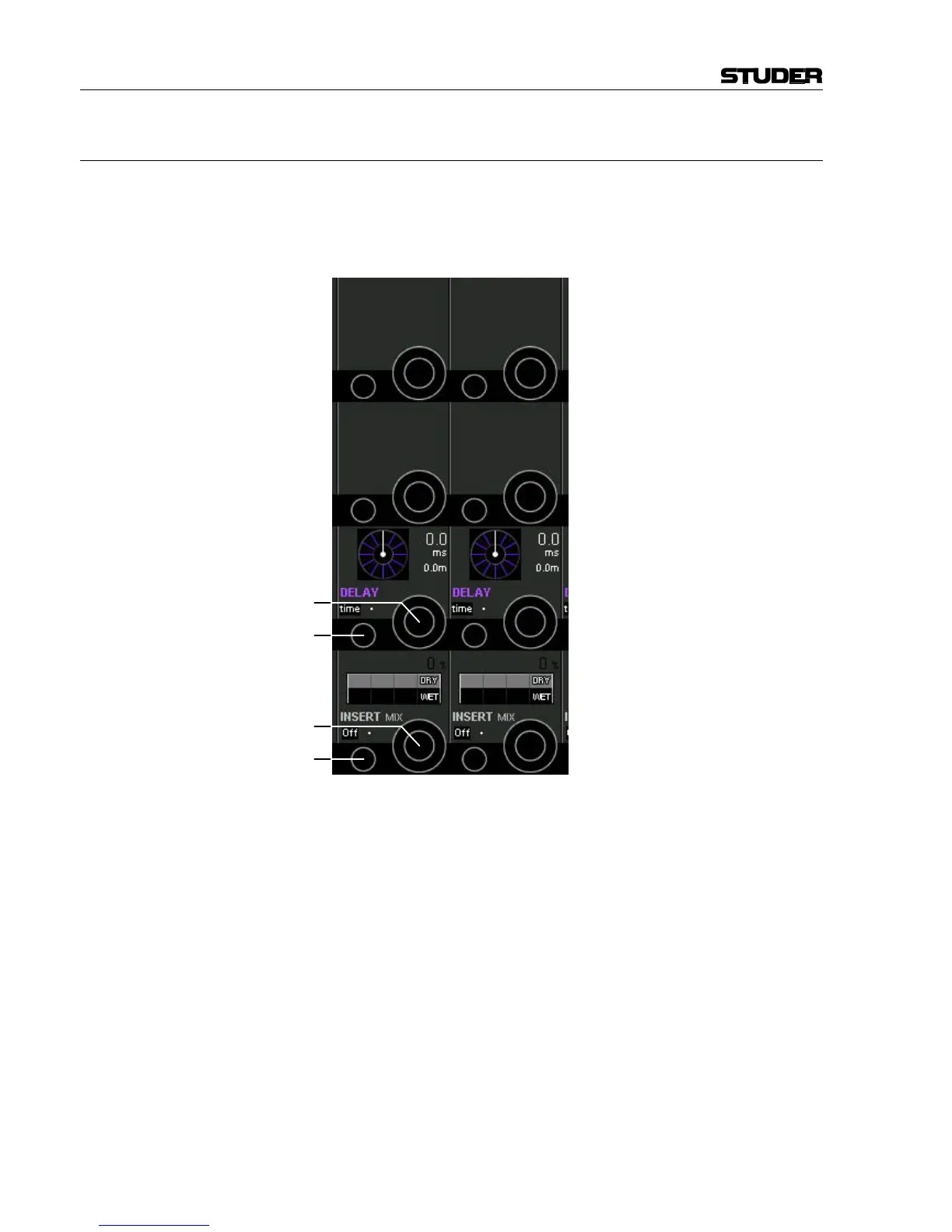

Press GLOBAL VIEW: DLY-INS.
This view enables the user to control the delay and insert parameters.
Please note: The two sections are activated with the DELAY and INS hard-
ware keys below the channel meters.
Delay Parameters: The delay value is set using the rotary encoder. It is displayed as a physical
distance (meters) and as a delay time (either samples or milli-seconds).
DELAY On/Off is selected with the DELAY hardware key above the Vistonics section.
DELAY time [22] Delay time can be set in a range from 0 through 100 ms (or, depending on
the system configuration, to a maximum of 240 ms). The value is dis-
played as a delay distance as well (from 0 cm up to 81.5 m, depending on
the system configuration).
DELAY time/smpl [23] Selects the delay setting in samples (“smpl” – fine setting) or milli-seconds
(“time” – coarse setting).
Insert Parameters: The insert section provides selection and control of the insert point
(INSERT ON/OFF) and the INSERT MIX function (ON/OFF), plus de-
fining the mix ratio (INSERT MIX %).
INSERT On/Off is selected with the INSERT hardware key above the Vistonics section. On
activates the insert return signal; off selects the Input Signal (which corre-
sponds to the insert send signal).
[23]
[24]
[25]
[22]
