INSERT MIX On/Off [24] On activates the insert mix function; off selects only the insert return sig-
nal.
When the insert mix function is set to ON, the ratio of the dry (send) to the
wet (return) signal depends on the selected mix ratio. In other words,
mixing between the insert send and the insert return signals is possible.
INSERT MIX % [25] If the MIX function is ON, this parameter allows mixing or blending of the
dry (send) signal with the wet (return). Dry signal only: 0% setting; wet
signal only: 100% setting.
Note: If the insert is routed to a non-digital external device (such as an analog
compressor patched through D/A and A/D converters), the delay intro-
duced by the D/A-A/D conversion will result in a comb-filter effect if the
insert return and mix are active and the MIX % is set anywhere between
DRY and WET. When inserting external analog devices, the MIX% should
always be set to WET (i.e., to 100%), unless this comb-filter effect is de-
sired.
INSERT MIX %
0% 100%
INSERT MIX
OFF
ON
INSERT
ON
OFF
Insert
Input
Signal
Insert
Output
Signal
Insert
Send
Insert
Return

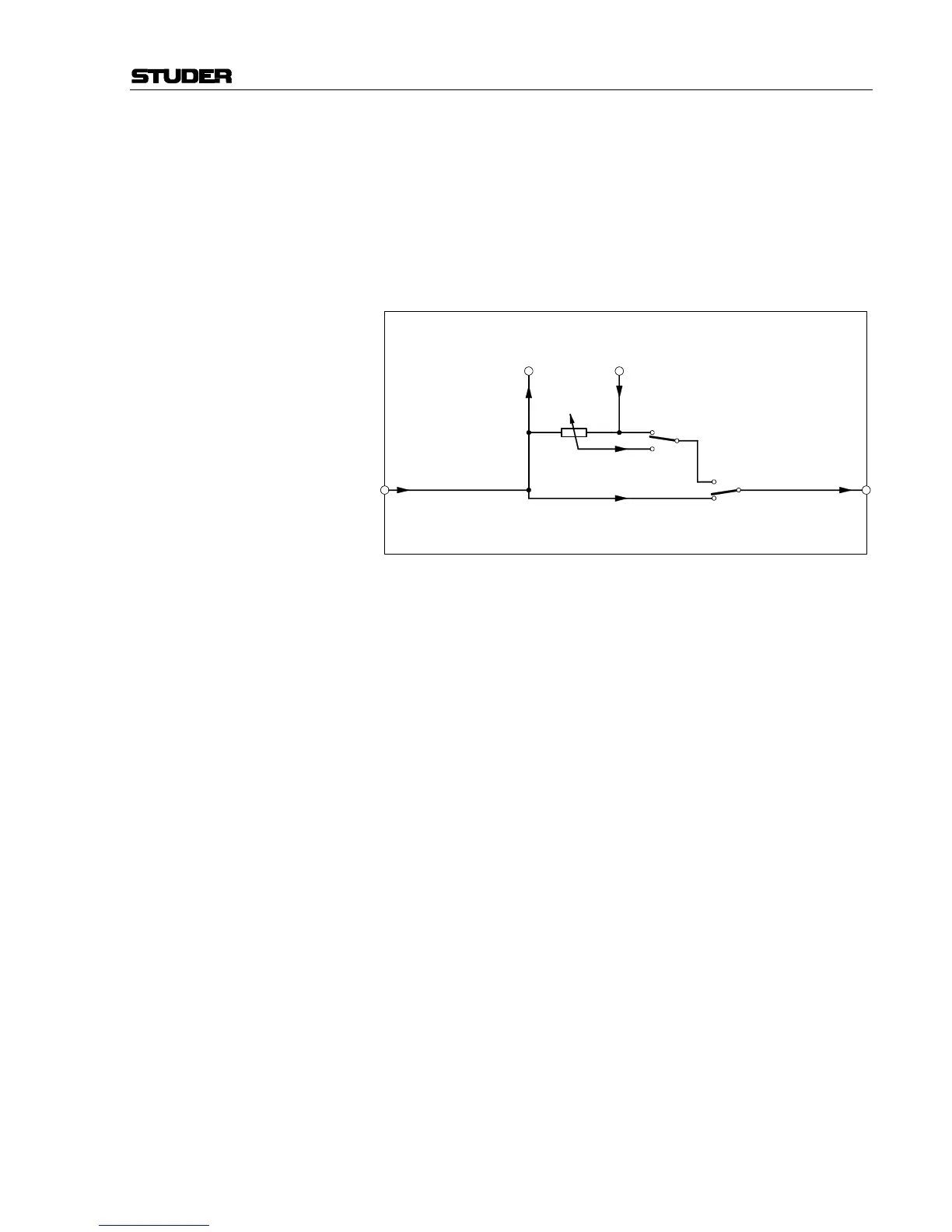

Part of a DSP Channel (Insert Section)
