STUDER 21. Sep. 2004 Release Notes Vista 3.4
8/18

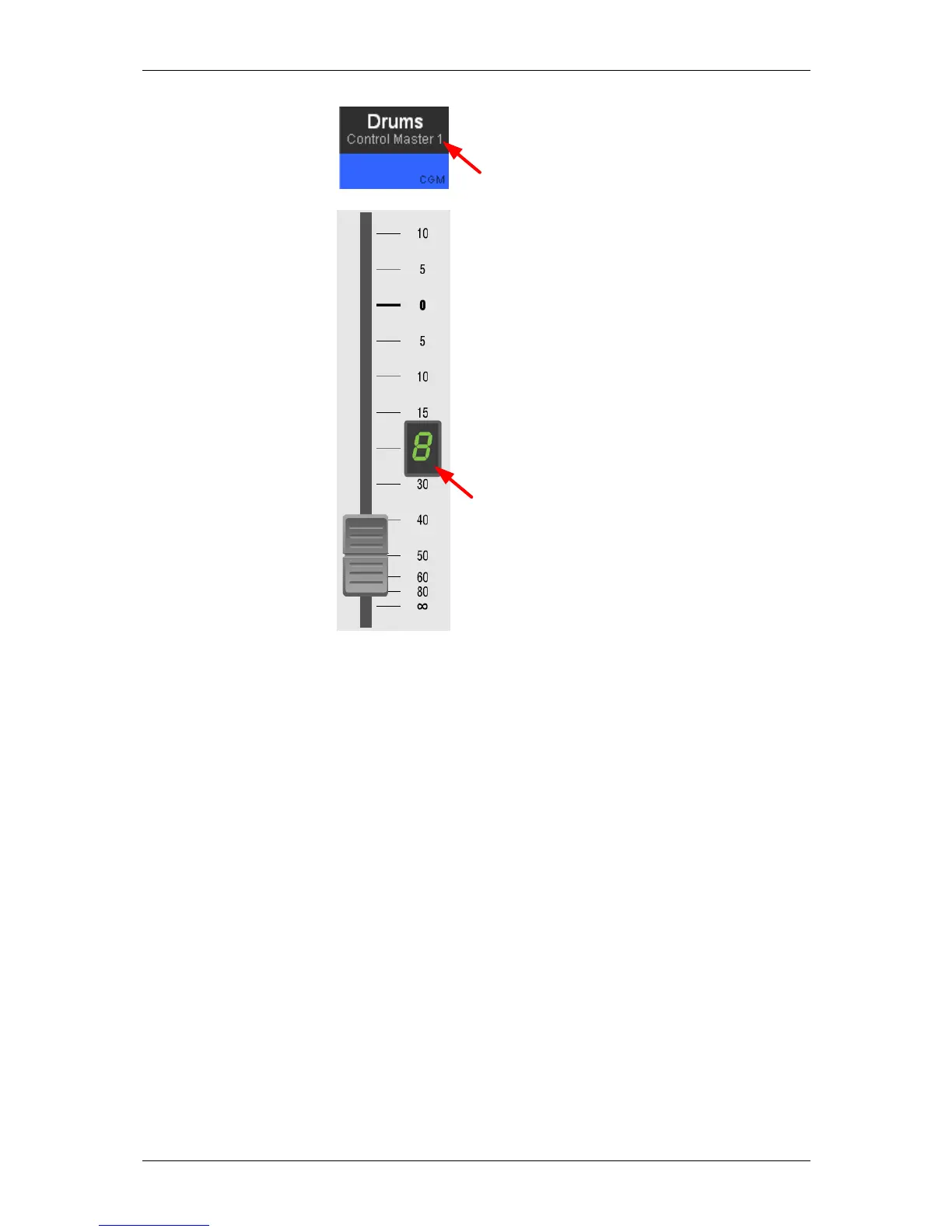

This channel is
member of CGM...
This channel is
CGM number...
D950: On the D950 it is not possible to see, to which CGM a CGM may belong. A small light next to
the fader shows the presence of another hierarchical level.
8. Fast adjustment of DIM and PFL/SOLO offset level
Up to the current software version it was already possible to adjust the DIM level in the control
room as well as attached studios. It was also possible to define an offset level for PFL and SOLO, so
the control room monitoring level would increase by a certain level whenever PFL or SOLO is active.
However, it was not accessible for operators to quickly change this settings. It is now possible to do
this easily. The settings are stored within the monitoring file, as before.
How to adjust the DIM level of the control room
Press and hold the DIM button next to the control room level rotary. After a certain time
you will see the current DIM level within the level display. Turn the CR level control in order
to adjust the dimming level and release the DIM button.
How to adjust the DIM level of the studios
Press and hold the DIM button next to the studio monitor level rotary for 2 seconds. Turn
the studio level control in order to adjust the dimming level and release the DIM button.
The current dimming level is graphically displayed with the LED ring around the level
control
How to adjust the PFL and SOLO offset level
Press and hold the PFL or SOLO mode switch (next to the level control of the external PFL
speaker). After about 2 seconds you will see the currently set offset level within the display
of the control room level. Turn the control room level in order to adjust the offset level and
release the pressed PFL or SOLO mode button.
