Panel status
171
Vanderbilt
Installation & Configuration Manual
A6V10276959
01.05.2016
Name
Description
Outputs
Displays the voltage on the outputs, the current drawn by the output
and the condition of the fuse on the output.
SPCP355.300 Smart PSU Status

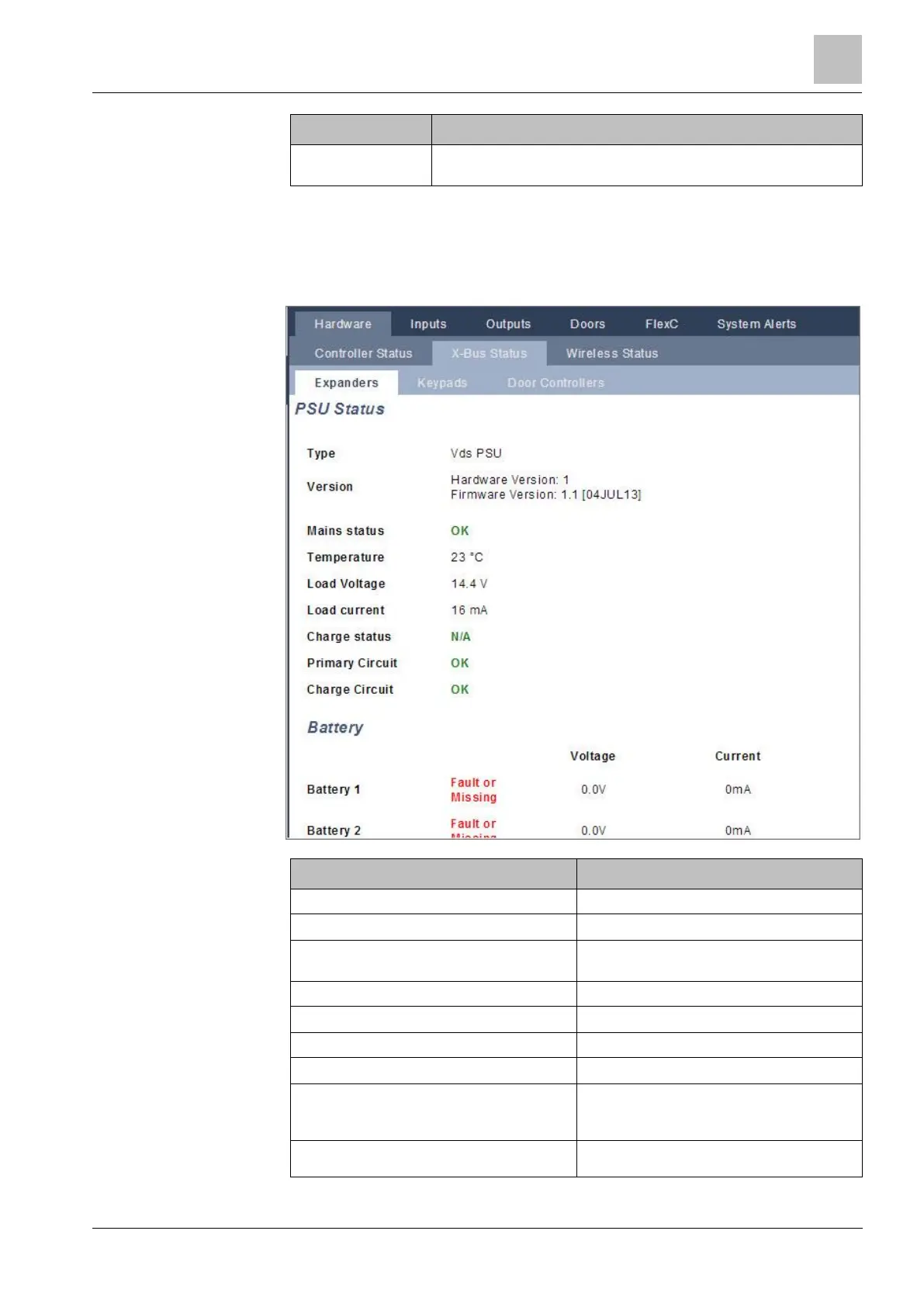

The following image shows the SPCP355.300 Smart PSU status.
Name
Description
Type
The type of power supply unit (PSU).
Version
The version of the PSU.
Mains Status
Displays the condition of the mains
connection. Possible values are Fault or OK.
Temperature
Displays the temperature of the PSU.
Load voltage
The voltage on the PSU
Load Current
The current drawn by the PSU.
Charge Status
Displays the condition of the battery charge.
Primary Circuit
Displays the condition of the primary circuit
which supplies power when the mains is
connected.
Charge Circuit
Displays the condition of the charge circuit
which charges the batteries when the mains
