Engineer programming via the browser
Installation & Configuration Manual
Output will give progressive warning of auto set.
Select the duration that the auto set output will remain active
when pulsed.

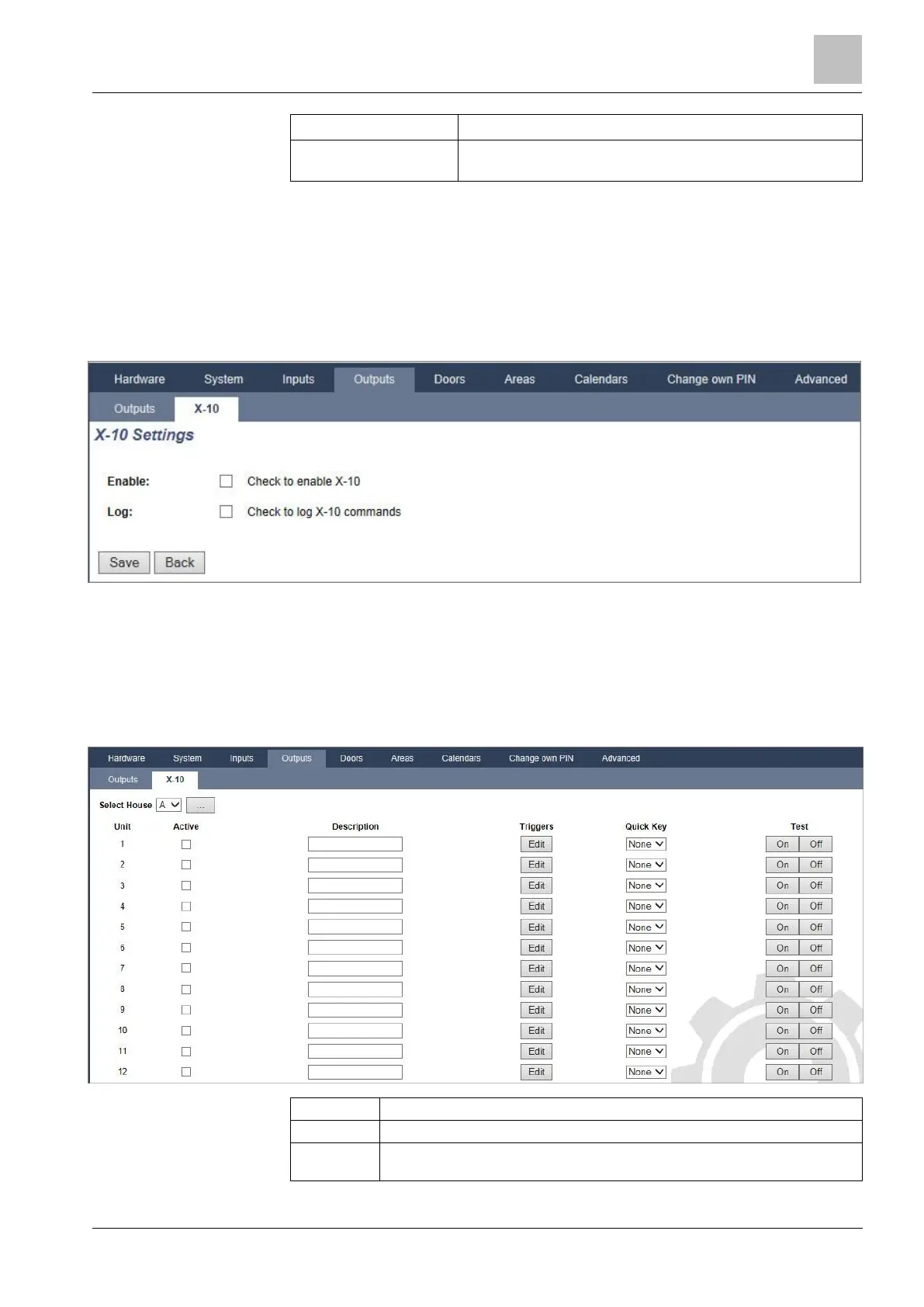

17.9.1.4 X10 Config - Settings
The X10 settings window allows you to configure the operation of X10 on the
panel.
1. Select Configuration > Outputs > X-10.
The following window will be displayed:
2. Activate the checkbox Enable to enable X10 operation on the panel.
3. Activate the checkbox Log to enable logging of all X10 events on the panel.
4. Click Save.
5. Click an alphabetic tab (A-P) to program X10 device triggers.
A list of programmable device triggers (1-16) will be presented for that
alphabetic character:
This is the number (1-16) that is assigned to the device.
This field indicates if the device is active or not.
This field displays a description that is used to help identify the device – e.g.
downstairs light (16 characters max).
