Installation & Configuration Manual
Indicates the presence or failure of the mains supply
FLASHING: AC mains fault detected
STEADY: AC mains OK
FLASHING: System alert detected; display indicates the location and nature
of alert. If the system is SET, then NO indication is given of system alerts
OFF: No alert detected; If a keypad is assigned to more than one area, LED
does not indicate an alert condition if any of those areas is SET
Indicates the status of the X-BUS communications when in FULL ENGINEER
programming
Flashes regularly: (once every 1.5 seconds approx) indicates
communications status is OK
Flashes quickly: (once every 0.25 seconds approx) indicates the keypad is
the last expander on the X-BUS
If the keypad is being installed for the first time and power is supplied to it
before a connection to the controller X-BUS interface is made, the LED
remains in the ON state

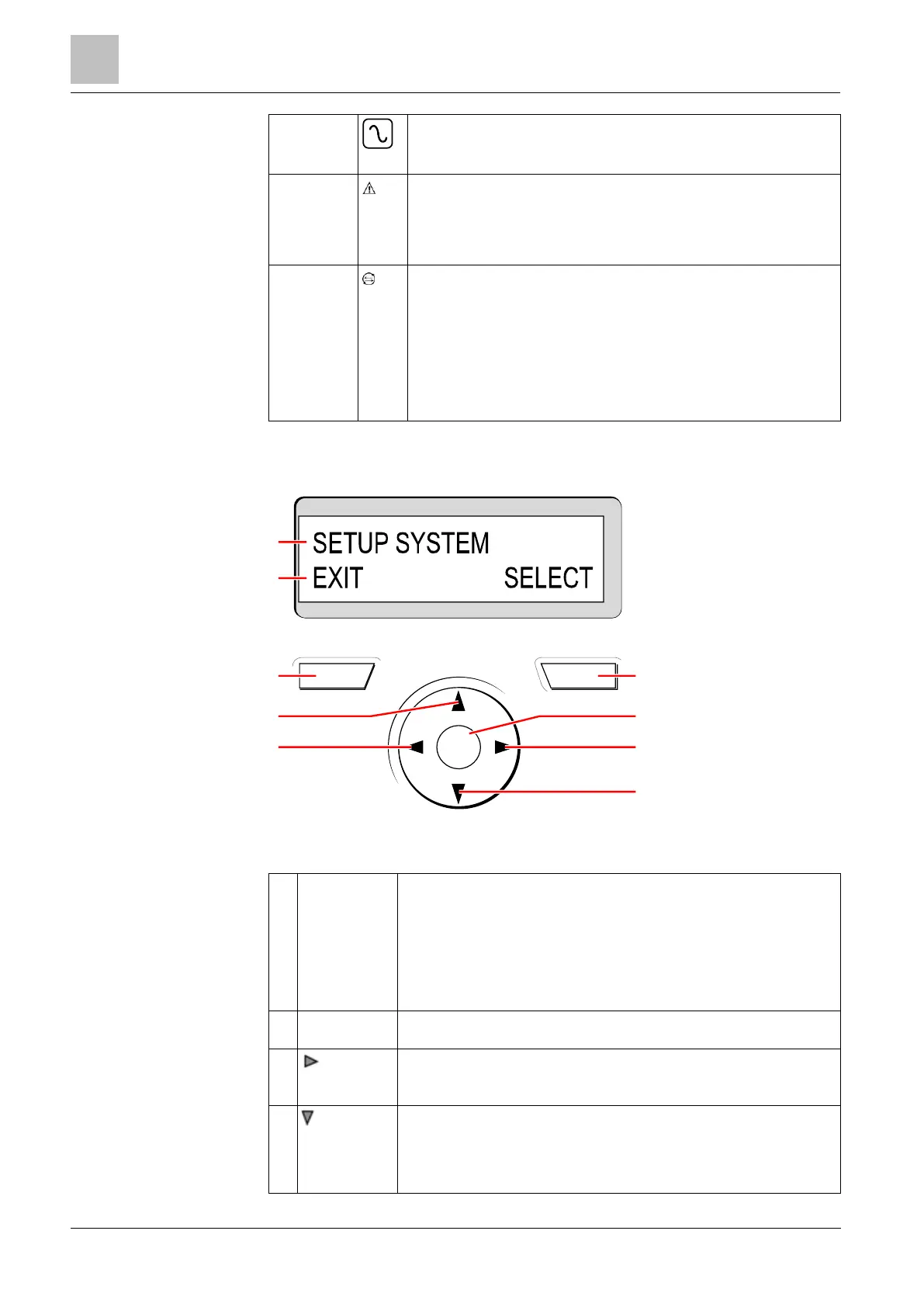

12.1.2 Using the LCD keypad interface
Keypad display
This key is used to select the option presented on the right side of the bottom
line display.
Possible values are:
→ SELECT to select the option displayed on the top line
→ ENTER to enter the data displayed on the top line
→ NEXT to view the next alert after the one displayed on the top line
→ CLEAR to clear the alert displayed on the top line
→ SAVE to save a setting
The OK button acts as a SELECT key for the menu option displayed on the top
line and also as an ENTER/SAVE key for data displayed on the top line.
In Programming mode, the right arrow key advances the user through the
menus in the same way as pressing the SELECT option (right soft key).
In data entry mode, press this key to move the cursor one position to the right.
In Programming mode, the down arrow key moves the user to the next
programming option in the same menu level. Continually press this key to
scroll through all programming options available on the current menu level.
In alphanumeric mode, press this key over an upper case character to change
the character to lower case.
