Mounting system equipment
6
Mounting a G3 housing
43
Vanderbilt
Installation & Configuration Manual
A6V10276959
01.05.2016
To wall mount the housing:
1. Open the cover and locate the initial fixing screw hole at the top of the cabinet.
2. Mark the position of this screw hole on the desired location on the wall and drill
the initial screw hole.
3. Screw the unit to the wall and mark the position of the bottom 2 screw hole
positions with the unit vertically aligned.
Back Tamper Requirements
A back tamper switch may be required by your local approval.
The back tamper switch is delivered with SPC panels in G3 housings or is available
as an optional extra with a mounting kit (SPCY130). EN50131 G3 panels
(SPCxx3x.x20) are supplied with a back tamper kit as standard.
6.2.1 Mounting a Back Tamper Kit
The SPC back tamper kit provides SPC control panels and power supplies with the
option of having back tamper as well as front tamper.
The back tamper kit comprises the following parts:
 Tamper switch
 Leads for connecting the back tamper switch to the controller
 Wall fixing plate
Mounting the Wall Fixing Plate

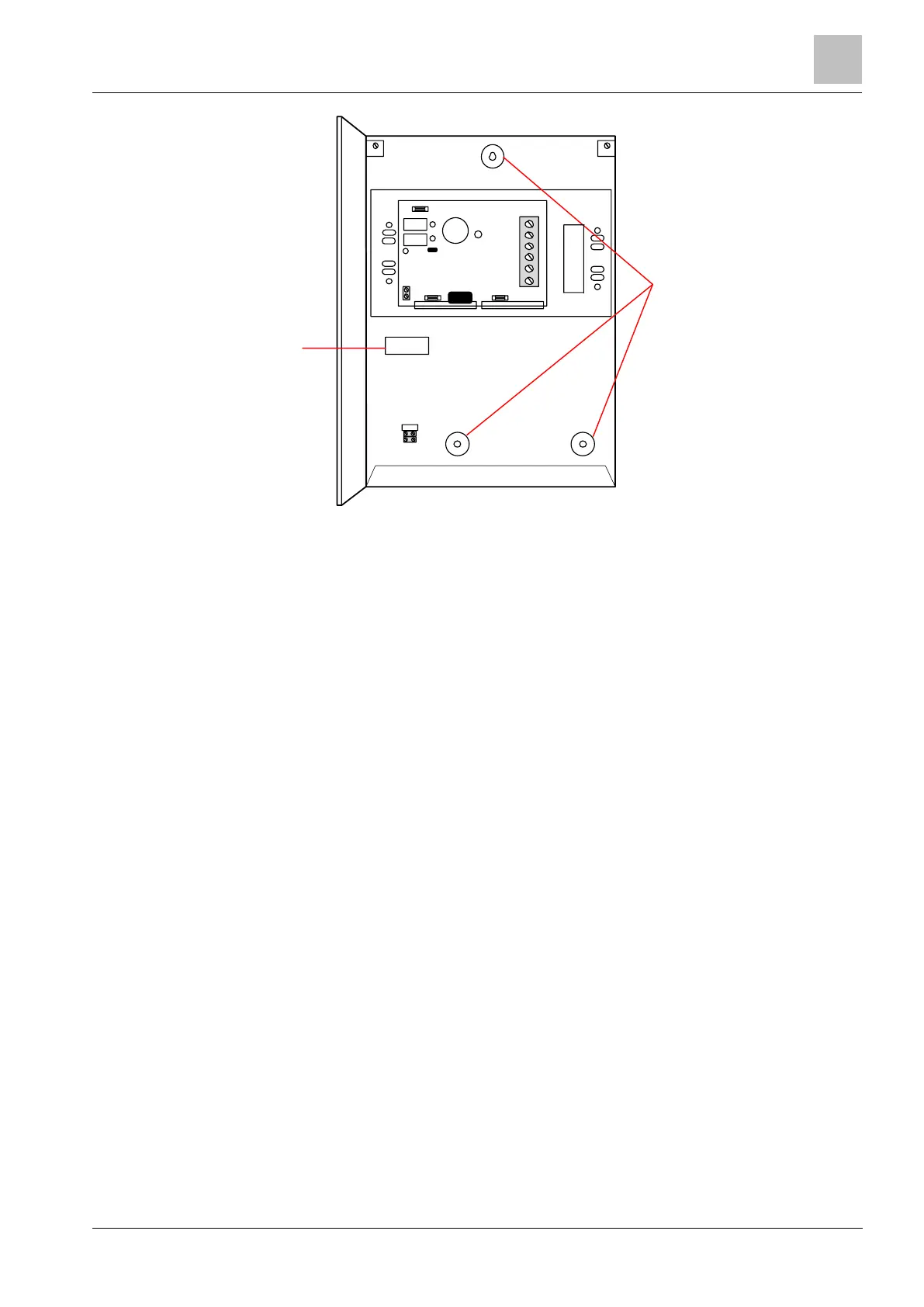

1. Mount the SPC in the appropriate position on the wall using all three fixings
(see item 1 below).
1
2
