Mounting system equipment
Installation & Configuration Manual

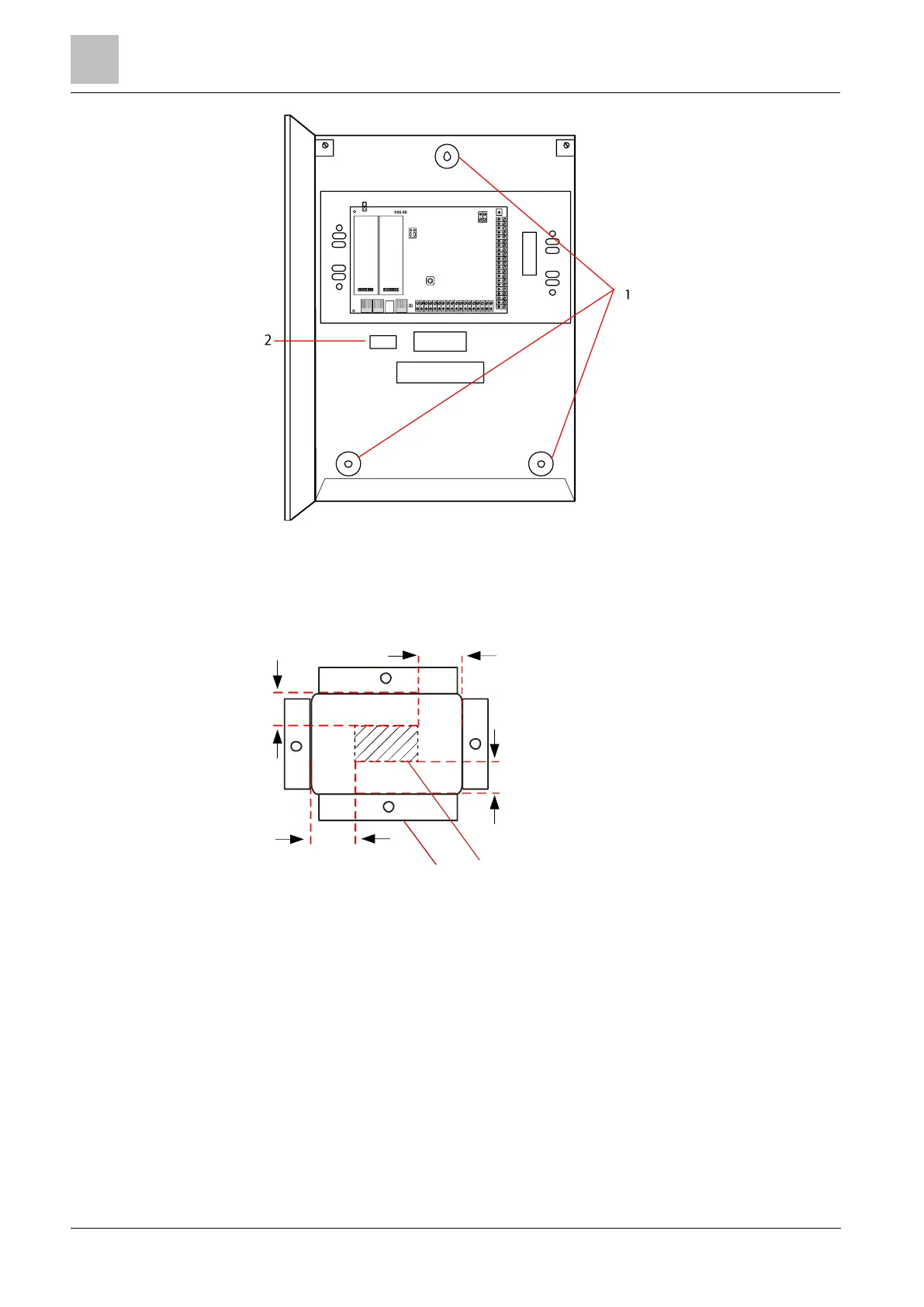

2. Draw a line around the inside of the back tamper cut out (See item 2 above) to
provide a guide for the wall plate on the fixing wall. Remove the enclosure from
the wall.
3. Place the wall plate (See item 1 below) on the wall centering it precisely around
the rectangle previously drawn (See item 2 below).
4. Ensure all four flanges on the wall plate are flush with the wall.
5. Mark the four fixings on the wall plate.
6. Drill and use suitable screws (max. 4 mm) for the wall substrate.
7. Fit the wall plate to the wall.
Fitting the Back Tamper Switch
1. Insert the tamper switch (See item 2 below) into the back of the enclosure so
that the plunger faces outwards (See item 1 below).
