5 Introduction
The SPC series controller is a true hybrid controller with 8 on-board wired zones
that communicate with intruder devices.
The flexible design of the controller allows the functional components
(PSTN/GSM/RF) to be mixed and matched, improving the capability of the system.
Using this approach, an installer can ensure that an efficient installation with
minimal wiring is achieved.

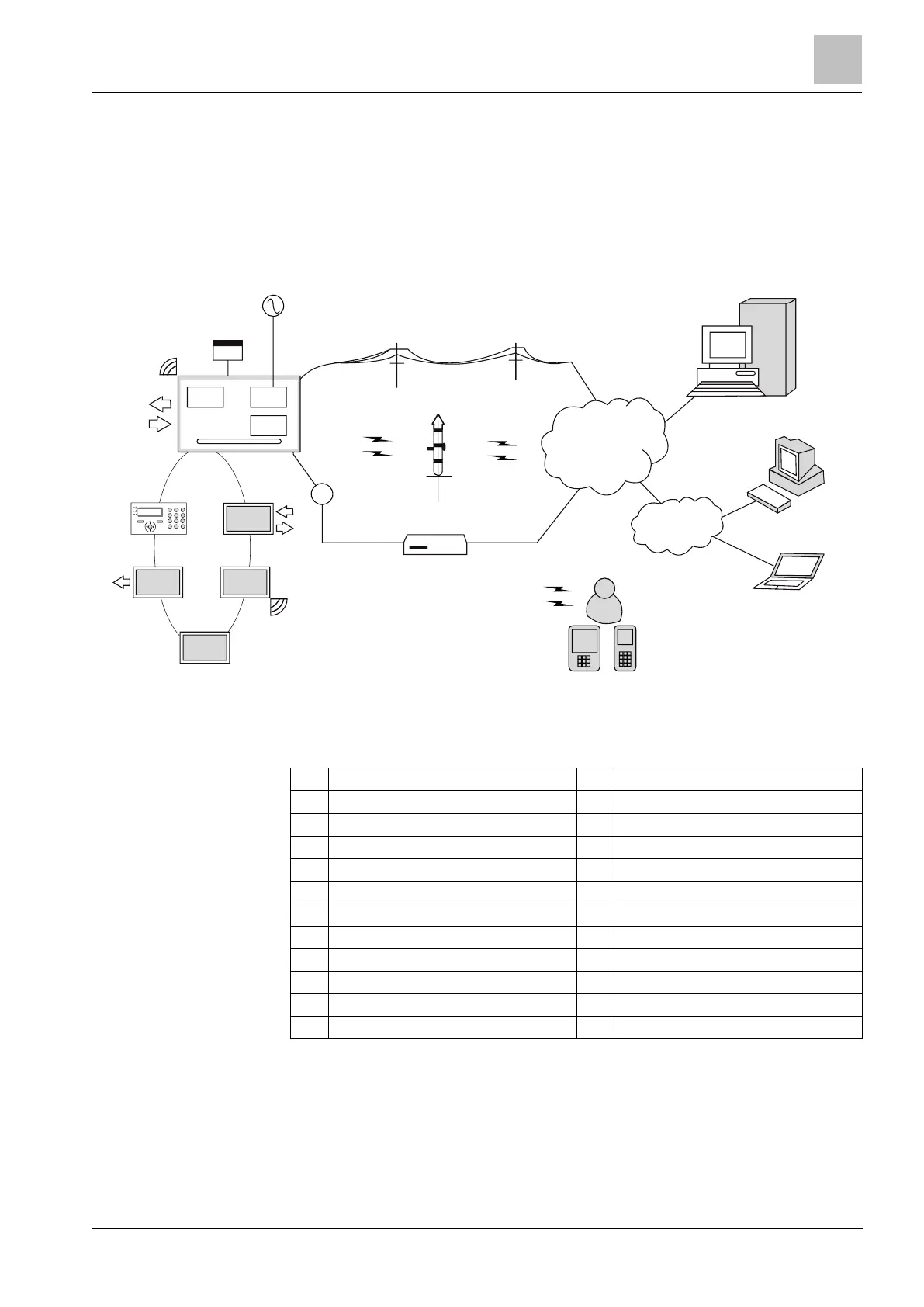

Overview
1
PSTN
13
Wireless expander
2
GSM
14
PSU
3
Ethernet
15
Loop configuration
4
Wireless Receiver
16
PSTN network
5
AC mains
17
GSM network
6
Battery 12 V
18
Broadband router
7
RF
19
Network
8
Wired outputs (6)
20
Central
9
Wired inputs (8)
21
LAN/WLAN
10
Keypads
22
Service desk
11
IO expander
23
Remote user
12
Output Expander
24
Mobile interfaces
14
2
3
5
6
7
8
9
10 11
12
13
14
15
16
17
19
20
21
22
23
24
18
