Blocking Lock Operation
22
Authorized Setting of the Blocking Lock
329
Vanderbilt
Installation & Configuration Manual
A6V10276959
01.05.2016
The configuration requirements for a Blocking Lock are as follows:
 Outputs:
– Ready to set
– Setting Ack
– Fullset Done
– Blockschloss 1/2
 Inputs
– Keyarm
22.2 Authorized Setting of the Blocking Lock
The ‘Authorised Setting‘ functionality extends the setting and unsetting procedure
for a Blocking Lock with a second security level. Before the system can be set or
unset, a code must be entered on an external setting device such as a card or pin
reader with a separate controller. This controller can be connected to any kind of
intrusion system using inputs and outputs.

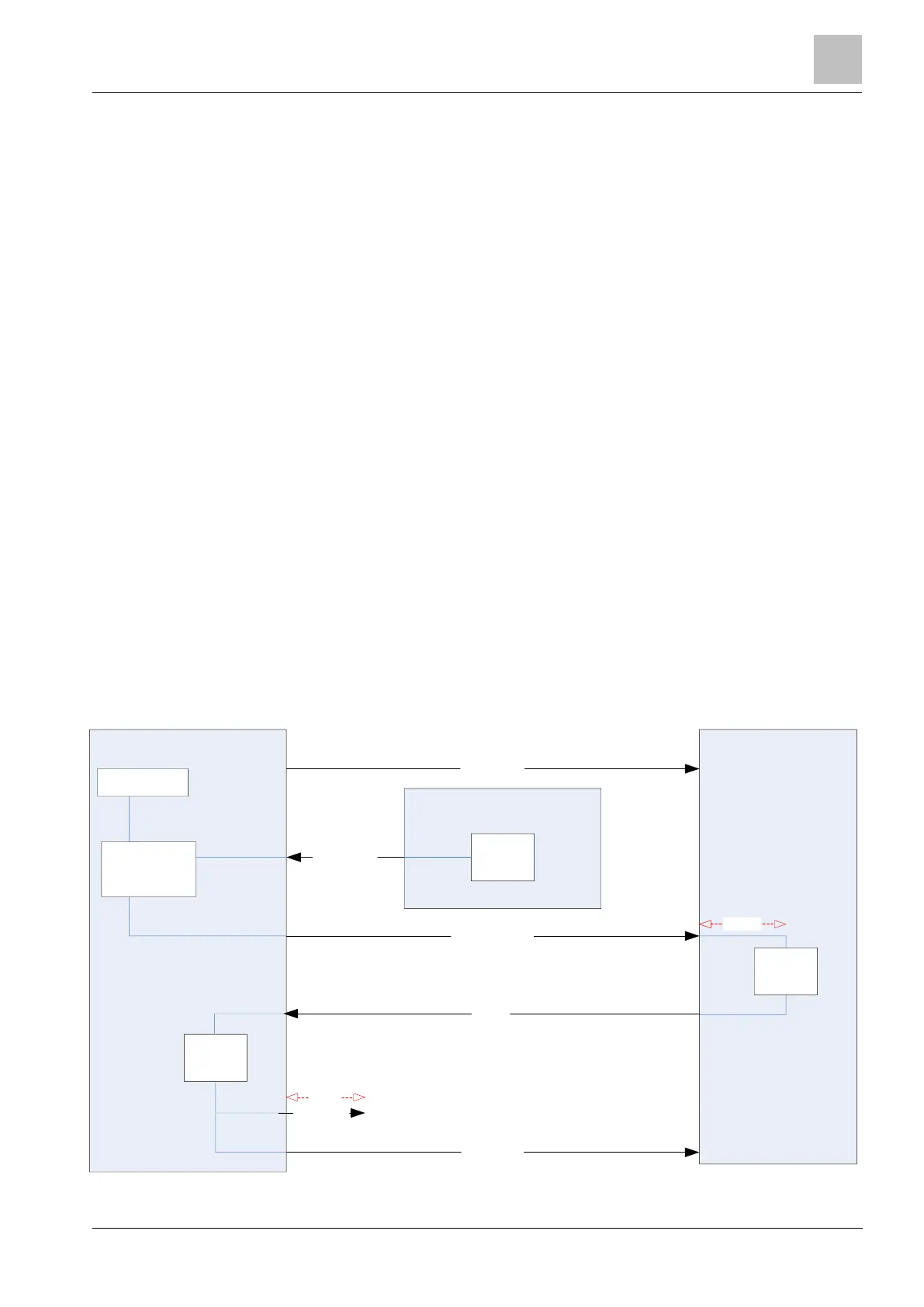

Operation is as follows:
1. The panel signals to the external setting device when it is possible to set using
a Ready To Set output.
2. When the code is entered ,the Setting Authorisation input is activated and
Blockschloss 1/2 is activated.
3. The blocking lock opens a control panel input (Keyarm) which initiates the
setting procedure of the panel.
4. The external setting device waits up to 8 seconds for Fullset Done output signal
to be activated from the control panel.
5. If this signal is not received, the setting fails and the external setting device
unsets the system again.
No open zone,
pending alarm or
pending fault
Ready to Set
Keyarm
Area Set
Blockschloss 1/2
Setting Ack
Fullset Done
Panel
Input
Output
Output
Output
Output
External Setting Device
Blocking Lock
Setting
Authorisation
Input
20 secs
Blocking
Device
Locked
Code
Entered
3 secs
Setting Start
