Wiring the X-BUS interface
79
Vanderbilt
Installation & Configuration Manual
A6V10276959
01.05.2016
Multi-drop wiring
Mixed wiring

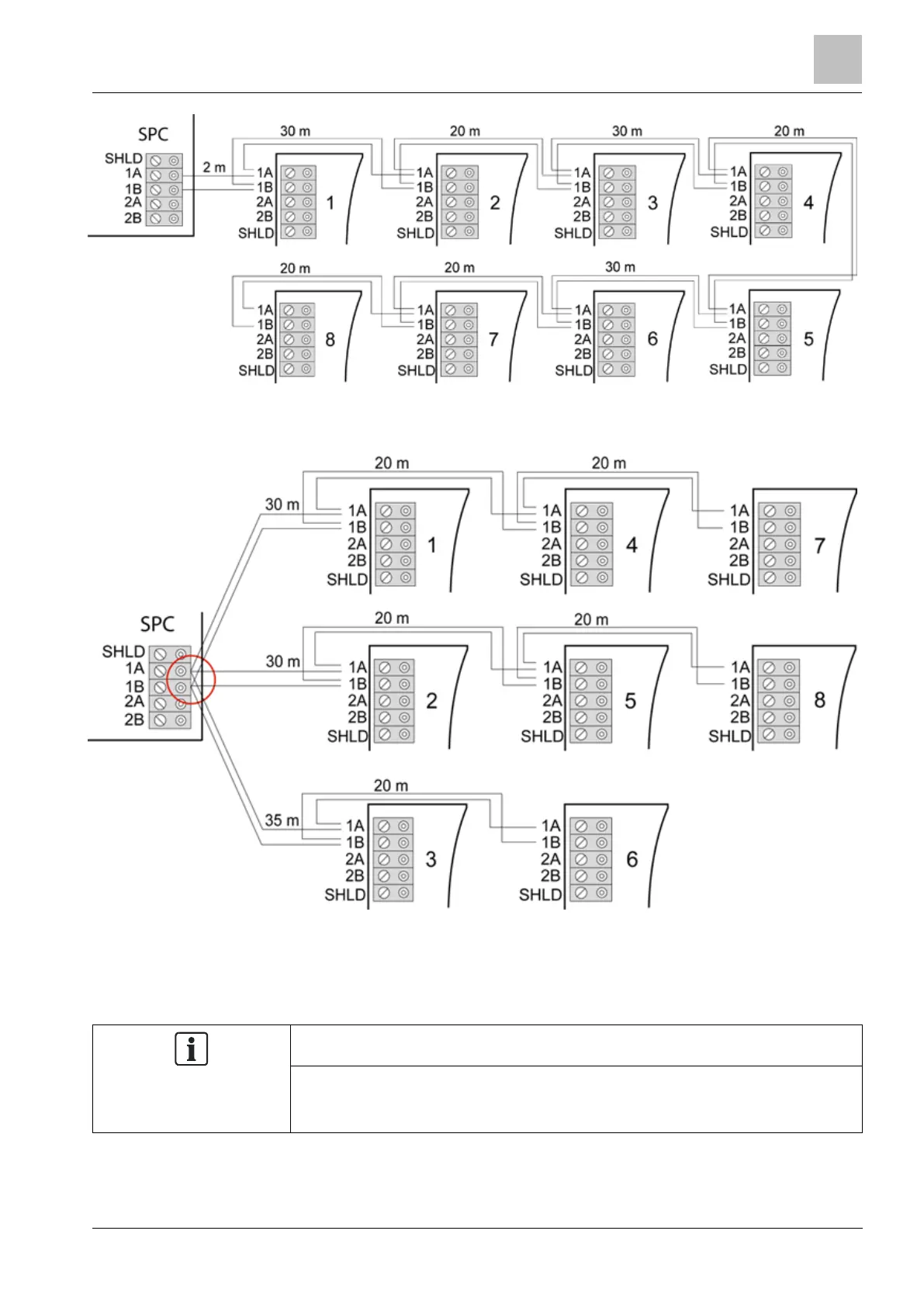

10.1.3.2 Examples of incorrect wiring
NOTICE
A mix of star and multi-drop configuration is only allowed if the star point is at the
controller X-BUS port. In this case, all expanders/keypads must be wired in multi-
drop configuration without any other star points in the wiring.
