Vanderbilt SPC53 Series User Manual

Engineer programming via the browser
17
Configuration
219
Vanderbilt
Installation & Configuration Manual
A6V10276959
01.05.2016

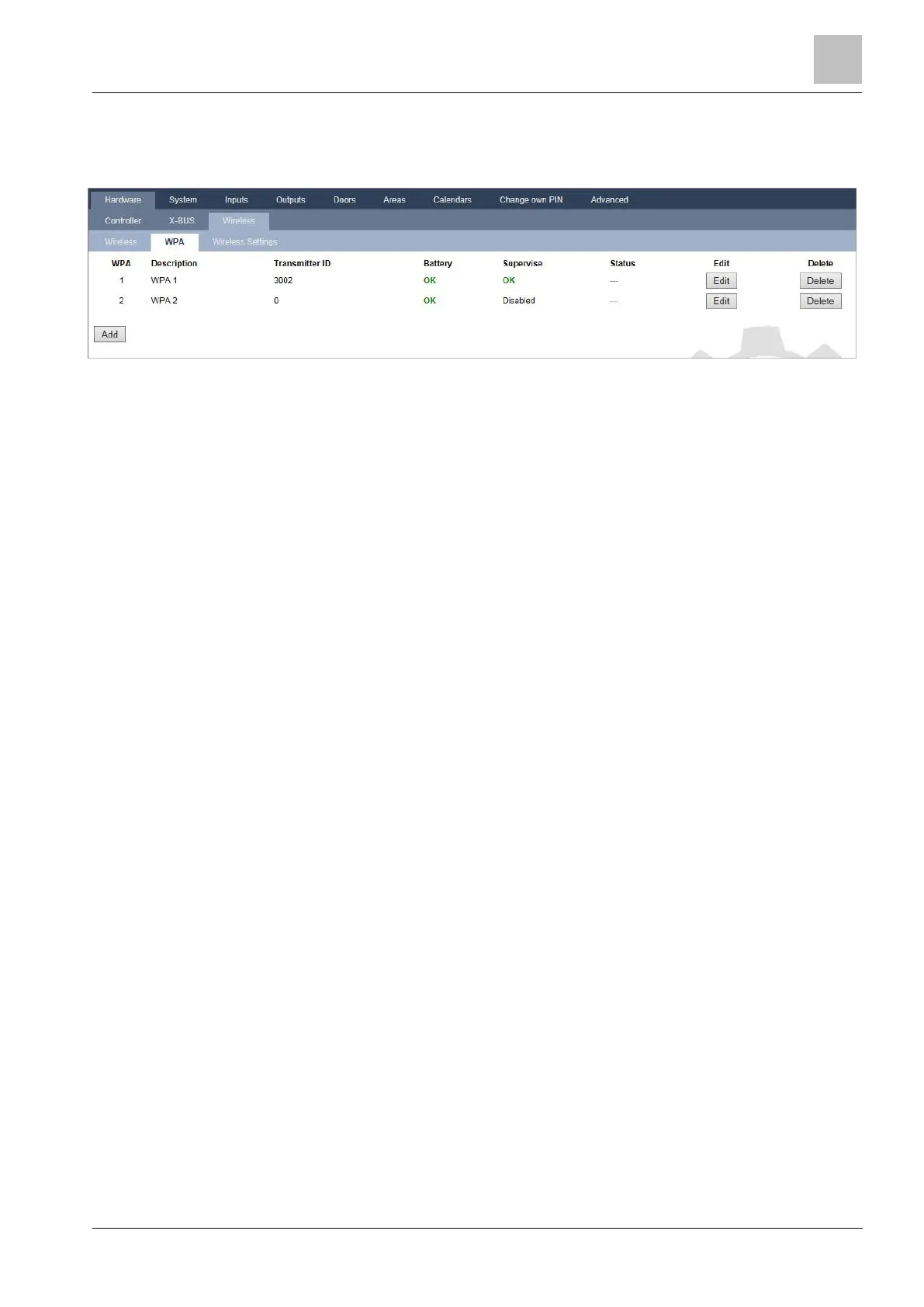

To configure a WPA from the browser:
 Select Full Engineer mode and select the following options Configuration >
Hardware > Wireless > WPA.
The following items can be checked or configured from this page:
 Battery Status
The panel receives the battery status from the WPA in every frame. The battery
status can be either OK or Low.
Battery monitoring requires a WPA fitted with the PCB revision E-PC138612 or
later.
 Supervise Status
The Supervise status can be any of the following:
– Fault
The panel has not received a supervision message from the WPA in the
period configured in the Wireless Settings page.
– Disabled
Supervision is not configured.
– OK
Supervision is transmitting normally.
 Test Status
The Test Status can be any of the following:
– Overdue
The WPA has not been tested in the period configured in the Wireless
Settings page.
– Disabled
Supervision is not configured.
– OK
The WPA test is ok.
1. Click on the Edit button to edit the WPA configuration.
2. Click on the Delete button to delete a WPA from the system.
Adding a WPA
To add a WPA to the system:
 Click the Add button in the main WPA Configuration and Status page.
 The Configure WPA page is displayed for the new WPA.
17.9.3.2.1
