Wiring the system

Wiring the zone inputs

Vanderbilt

Installation & Configuration Manual

A6V10276959

01.05.2016

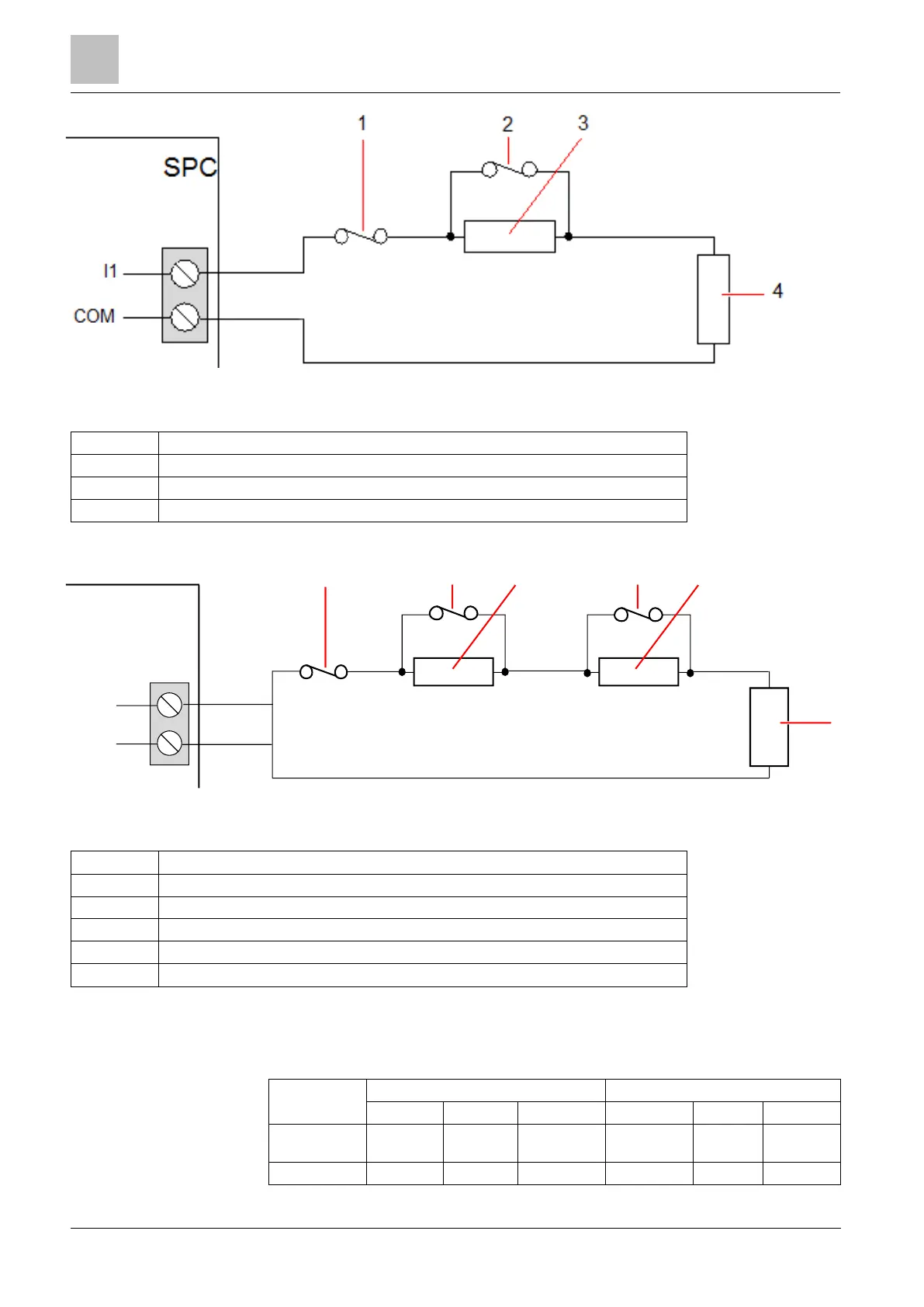

Default configuration (DEOL 4K7)

Tamper

Alarm

EOL 4K7

Anti-Masking PIR configuration

Tamper

Alarm

EOL 4K7

Fault

EOL 2K2

EOL 4K7

The following table shows the resistance ranges associated with each

configuration.

Single EOLs

EOL Type

Quiescent

Alarm

Min

Nom

Max

Min

Nom

Max

NONE

0Ω

(-100%)

150Ω

300Ω

(+100%)

300Ω

(+100%)

N/A

Infinite

SINGLE_1K

700Ω

1kΩ

1.3kΩ

23kΩ

N/A

Infinite

SPC

COM

43 5
