Veeder-Root TLS-450 - EDIM Comm Devices - General

TLS-450 Setup and Operation Screens Manual
141

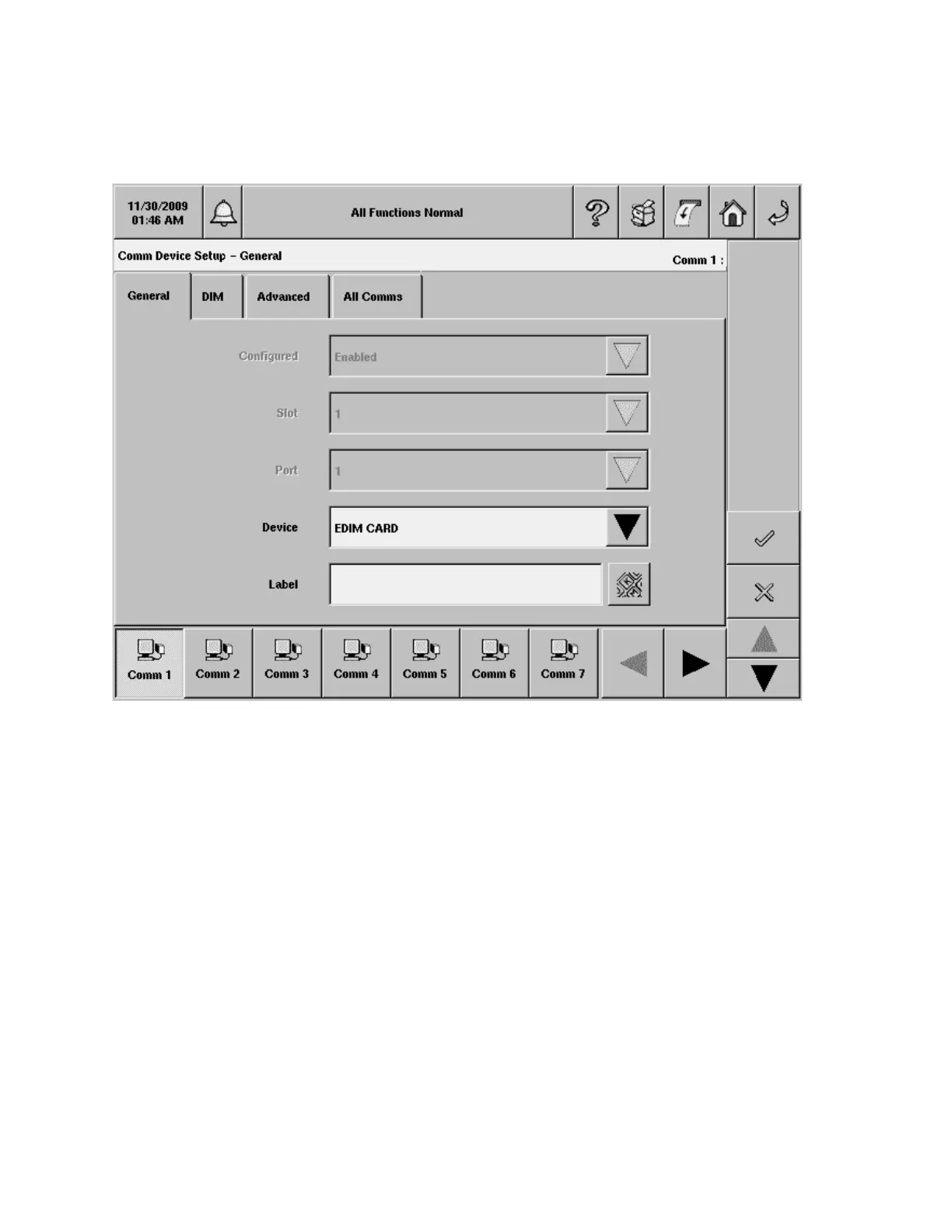

EDIM Comm Devices – General (page 1)
Configured
When the card is auto-detected, this field will be enabled but grayed out.
Allowable selections: Enabled, Disabled. Default: Disabled
Slot
Read only when slot is detected, otherwise enter the configurable slot number (EDIMs 1,2,3 or 4)
Allowable selections: List, None
Default: None
Port
Some DIM Devices can have more than one port. If there is more than one port, you must select a
port before selecting the valid DIM Device. If the DIM Device is auto-detected, this field is grayed out..
Allowable selections: List, None
Default: None
Device
