TLS-450 Setup and Operation Screens Manual
10
Specialty Dialog Keypads
The Specialty Dialogs section of the online help describes the function of all buttons on each of the
following keypads - there are some multi-function buttons in these keypads which you should
understand before using them:

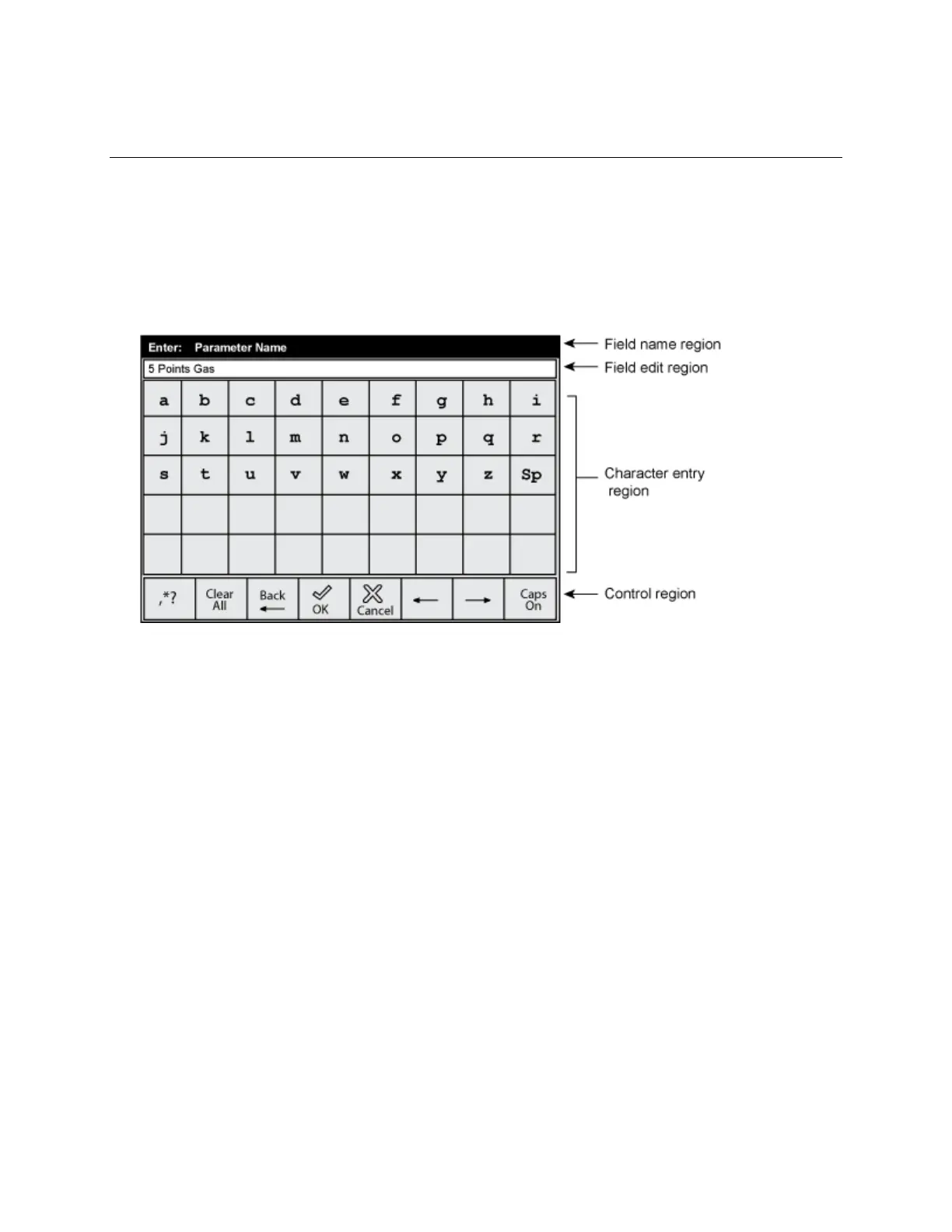

Alpha Entry Keypad
The Alpha Keypad dialog lets you enter letters of the alphabet for labels, names, etc.\
• Field Name Region
This is the title area that displays the name of the field value being entered.
• Field Edit Region
This is the view area to show the value as it is being entered (entries are left justified).
• Character Entry Region
This region has Buttons that enter characters in the Field Edit Line.
• Control Region
The region has the following buttons, from left to right:
o ,*? - touch this button to toggle between the Enhanced Numeric and Alpha keypad
interfaces. It is enabled when the field is an Alphanumeric Entry. It is disabled if
the field is an Alpha only entry.
o Clear All - touch this button to clear the entire entry.
o Back - touch this button to remove a character to the left of the cursor.
o OK - touch this button to apply the selection.
