TLS-450 Setup and Operation Screens Manual
28

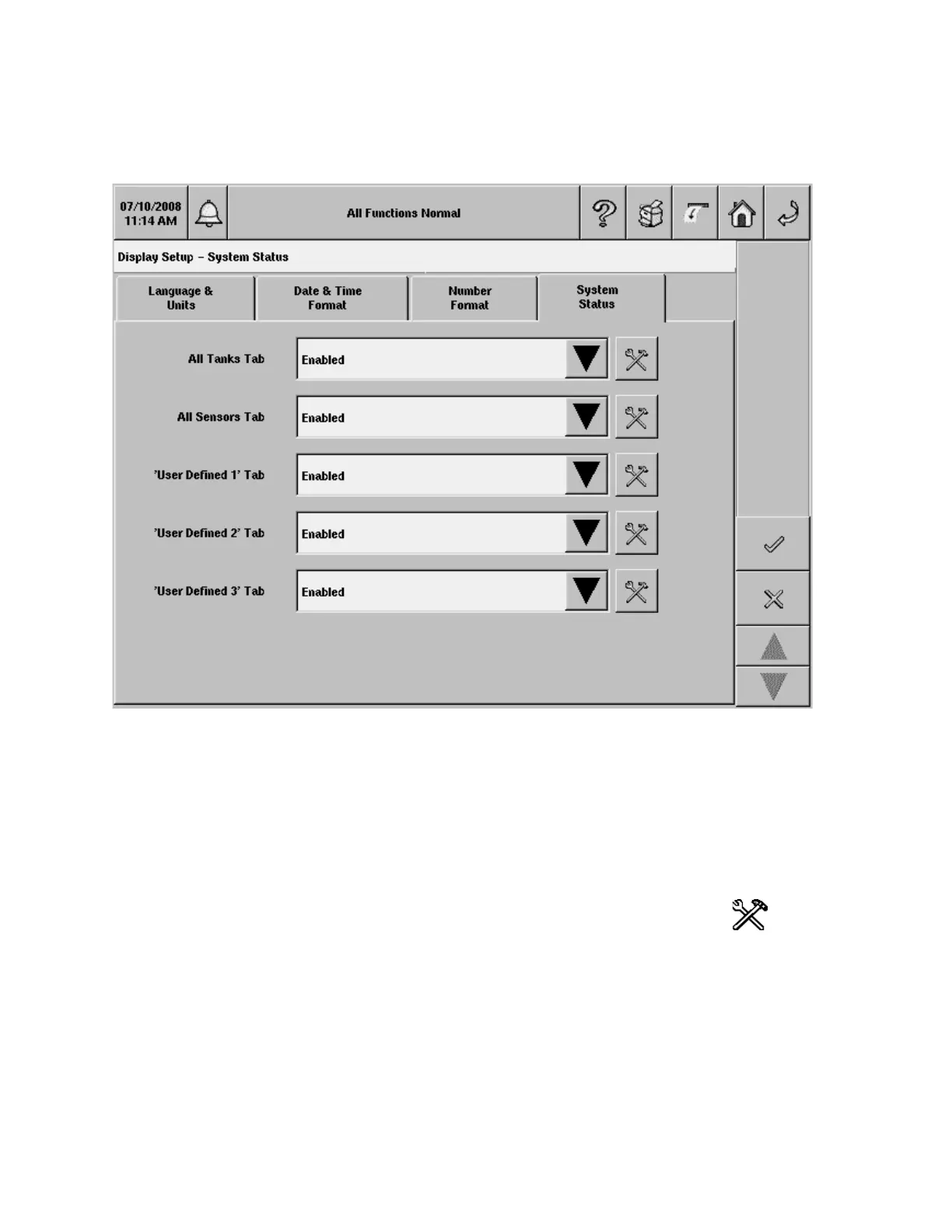

Display Setup - System Status
The setup for the System Status Screen enables the view of various status tabs on the home (main)
screen. Available tab screens include: All Tanks, All Sensors, and up to 3 User Defined tabs in which you
can assign a combination of tanks and sensors as desired.
A field to enable the display of each tab screen is present. Next to each of these tab fields is an
advanced setup button. This button will launch a screen with additional choices related to the tab that
has been enabled.
All Tanks Tab
Selecting Enable in the All Tanks Tab field and then touching the Advanced Setup button to the
right of the field opens the Display - All Tanks Tab Advanced Setup screen. In this screen you select
informational text and/or icons to display in the tank graphics displayed on the home screen (System
Status 'All Tanks') and on any System Status 'User Defined' screens, if assigned.
Allowable selections: Enabled, Disabled
Default: Enabled
