TLS-450 Setup and Operation Screens Manual
309
Mag Sensor Diagnostics - Channel
The Mag Sensor Diagnostics - Channel screen displays a report with channel diagnostic information
about all Mag Sensors.
Report Description
Each Mag Sensor's channel data is preceded by the following information:
• Mag Sensor number (e.g., 1) and label (e.g., Mag Sensor 1)
• Mag Sensor serial number (up to 7 digits)
• Date and time (time channel data was received)

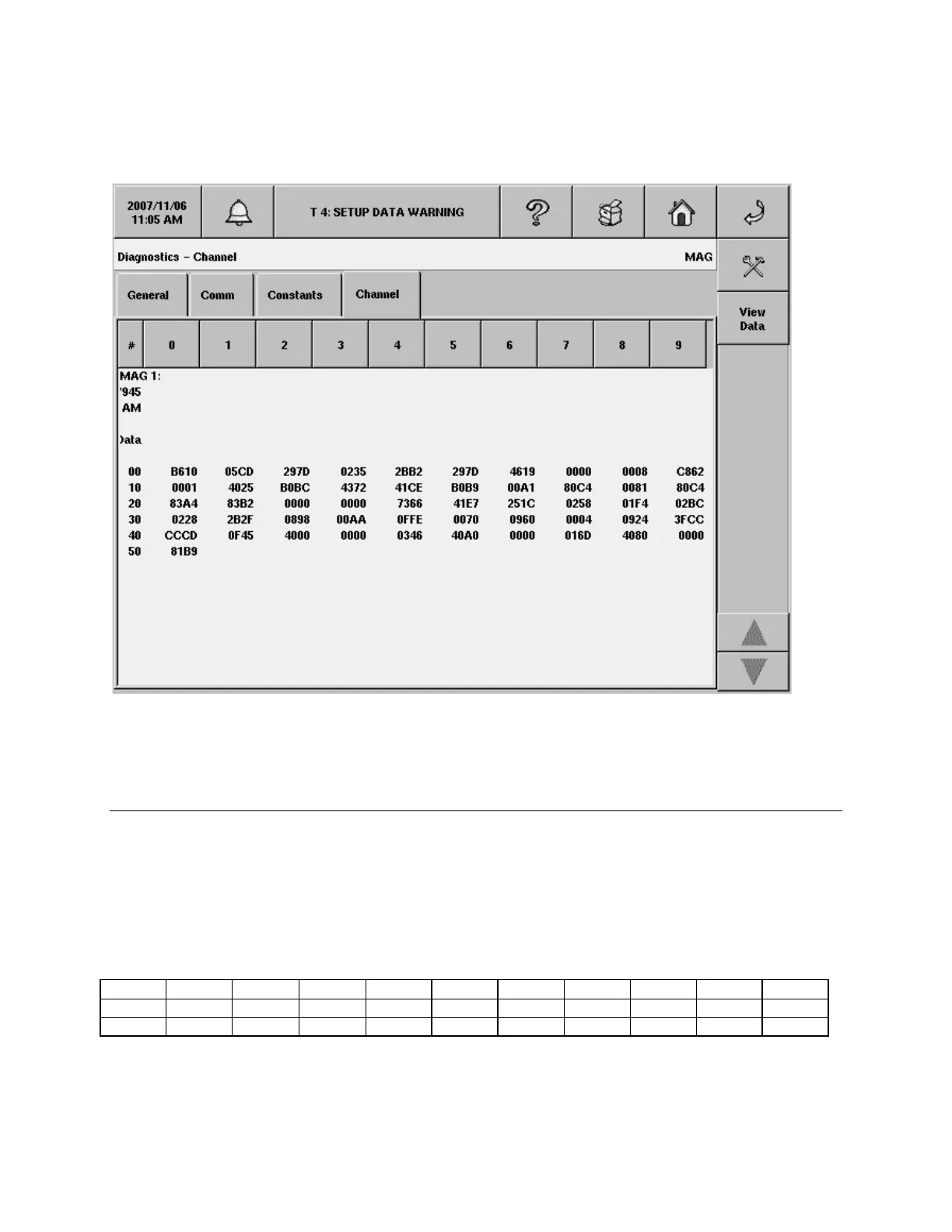

Channel data (Hex number) is read from the report as shown in the example below:
In the example above, the last sample for Channel 0 is B610, for Channel 3 it is 0235, and for channel 16
it is 00A1.
