TLS-450 Setup and Operation Screens Manual
328
Modules

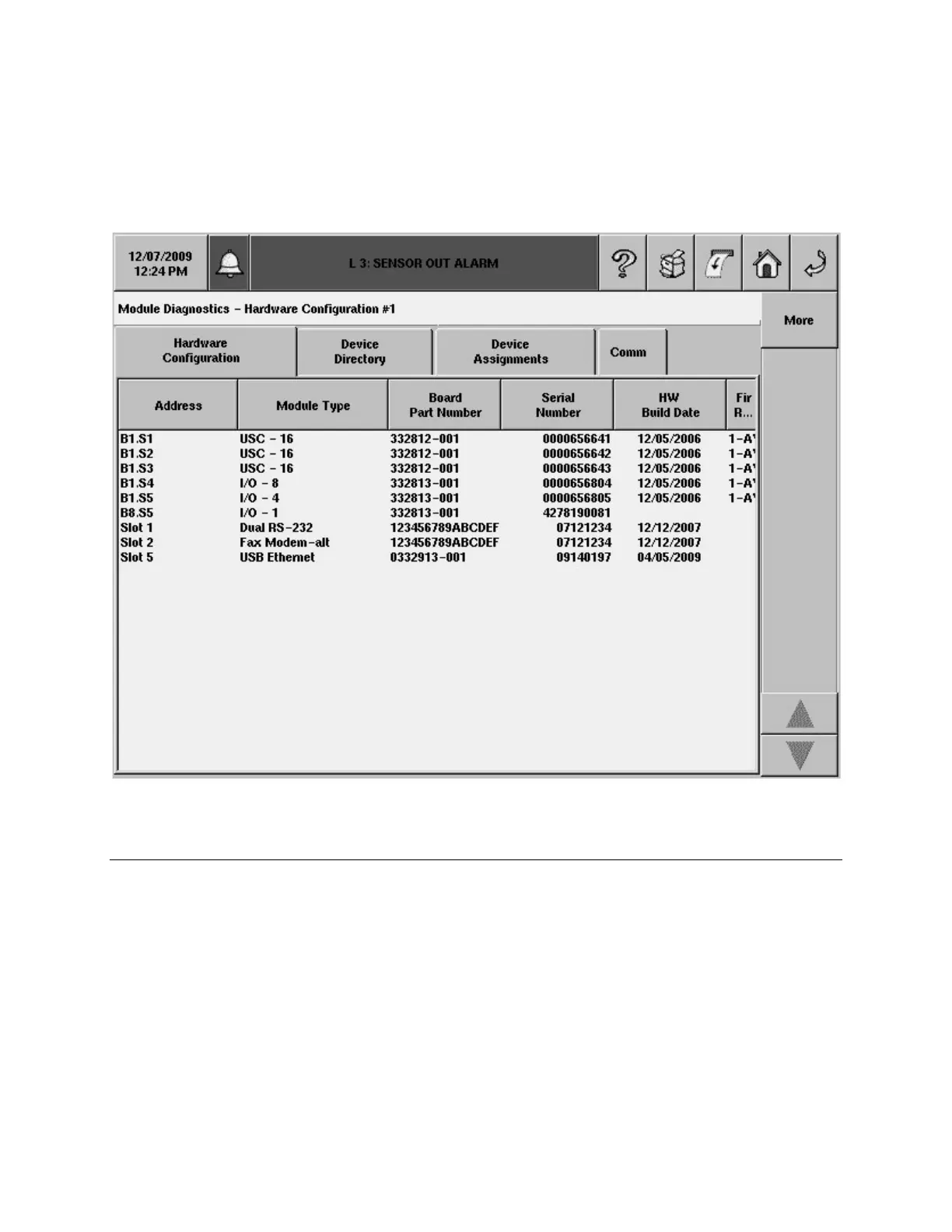

Module Diagnostics - Hardware Configuration
This screen lists console's module locations and hardware/software details.
Report Column Descriptions
Address
This column contains the physical address of the module, B1.S4 = Master 450/slot 4 [module bay -
behind right door], Slot 1 = Comm slot 1 [comm bay - behind left door]).
Module Type
This column contains the module type, e.g., USM-8 (Universal Sensor Module with 8 Inputs).
Board Part Number
This column contains the module's part number.
