TLS-450 Setup and Operation Screens Manual
45
Device Setup - Relays

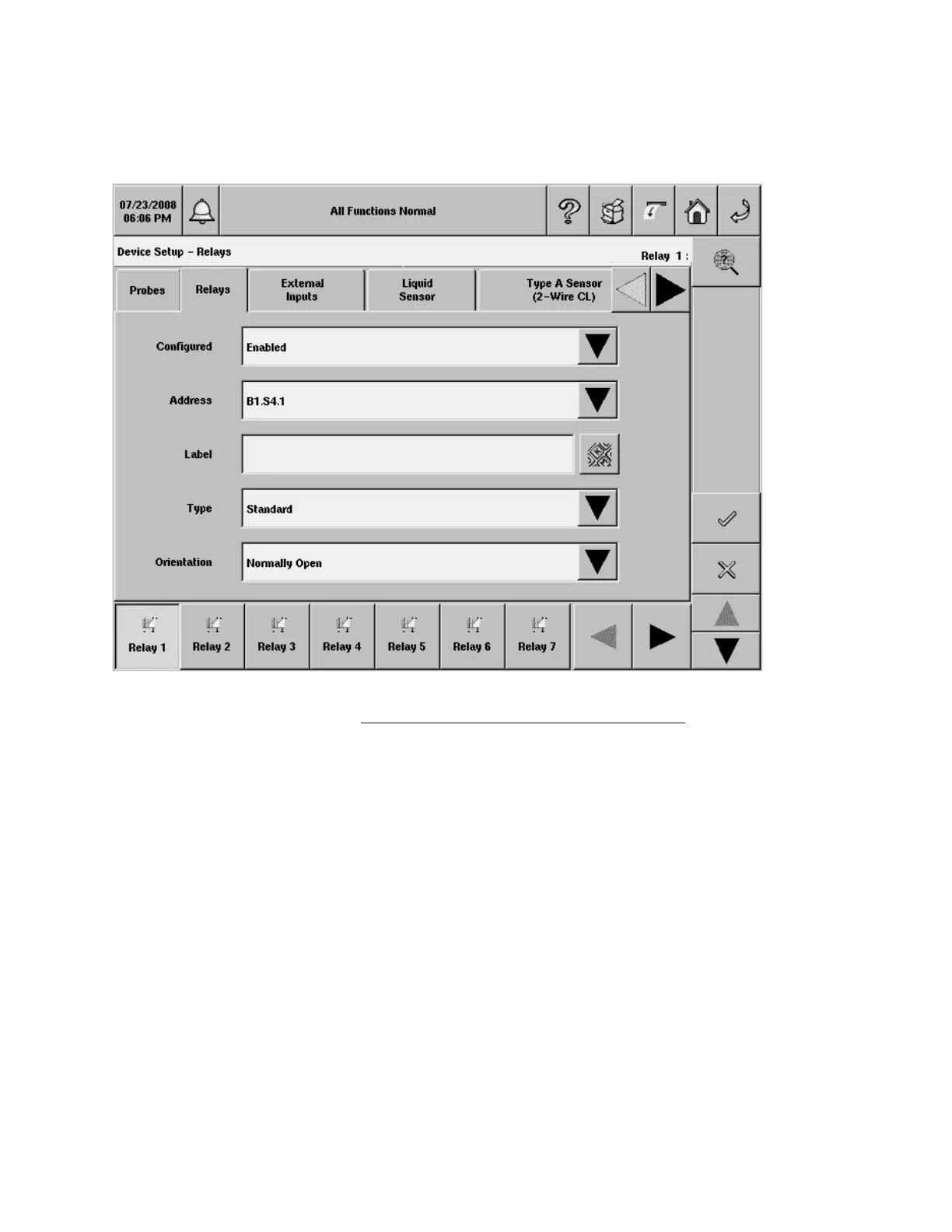

This screen allows you to setup monitored relays. You must enter data individually for each relay. Alarm
assignment to a relay is done in the Automatic Events Setup - Device Tasks screen
.
Configured
Allowable selections: Enabled, Disabled
Default: Disabled
Address
Allowable selections: Choose from drop-down list of available external inputs, Not Assigned
Default: Not Assigned
Label
Allowable selections: Up to 20 alphanumeric characters
Default: Blank
Type
Enter the type of relay that is connected to the selected relay location:
• STANDARD - The On/Off state is determined by assigned alarms/warnings.
• PUMP CONTROL OUTPUT - Relay state is controlled by TLS Pump/Line controller.
To Next Page
