TLS-450 Setup and Operation Screens Manual
337
Software Maintenance
Connecting USB Thumb Drive for Software Maintenance
Procedures
Follow the steps below to connect a valid V-R Code/Features USB thumb drive or a V-R Recovery USB
thumb drive to the TLS-450 console prior to performing Software Maintenance procedures.

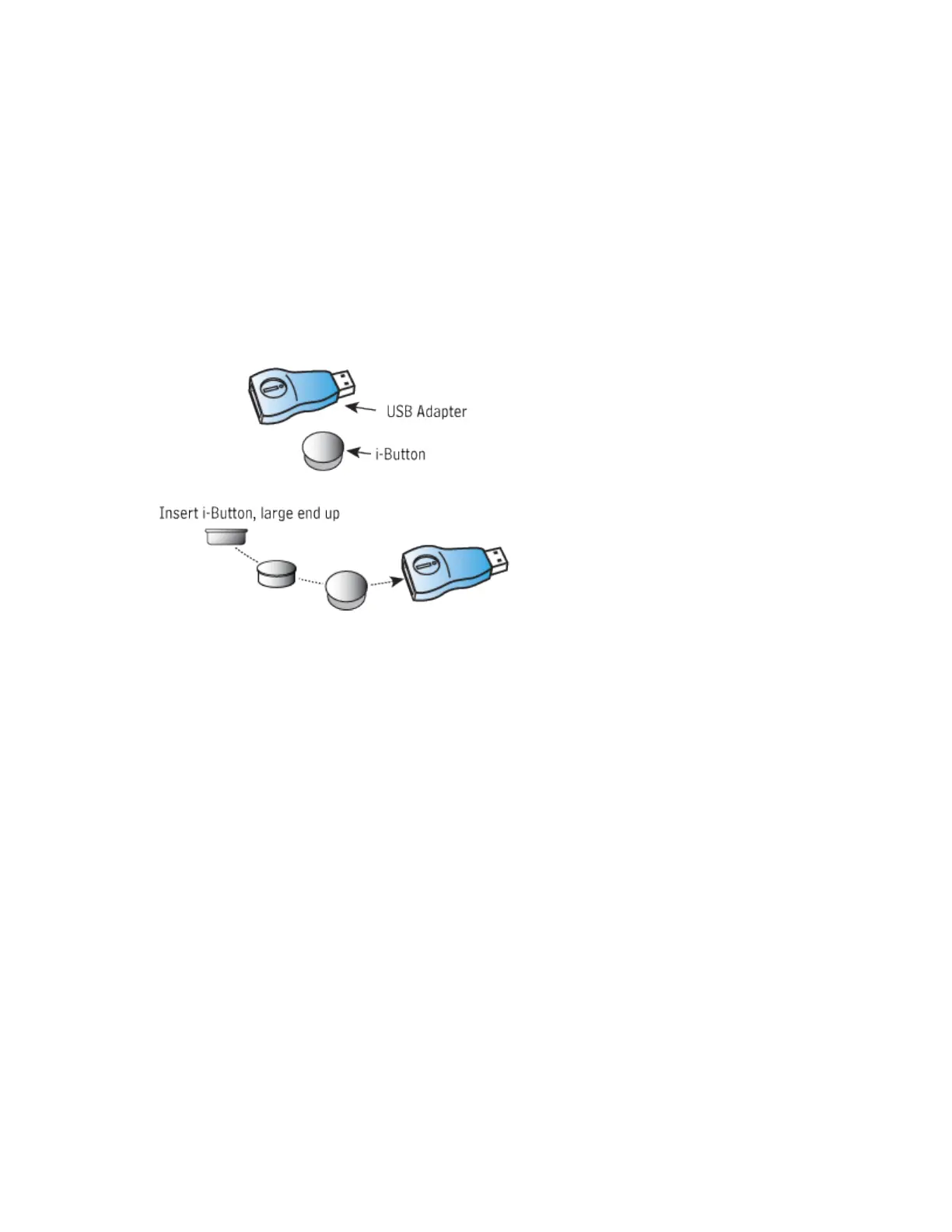

1. Get the USB Adapter and upgrade i-button from the upgrade kit. Remove the plastic end cap
from the USB Adapter and Insert the i-button in the adapter as shown in the diagram below:
2. Replace the plastic retaining cap on the adapter after inserting the i-Button.
3. Plug the USB Adapter into the USB port of the console's Ethernet/USB card and follow the
required Software Maintenance procedures. When you have completed the Software
Maintenance procedure(s) remove the thumbdrive.
If the console does not have an Ethernet/USB card, continue to step 4.
4. Turn off power to the console.
5. Using a T-15 Torx driver, remove the two #8 taptite screws the left door of the console (see
below):
