TLS-450 Setup and Operation Screens Manual
347
SPECIALTY DIALOG SCREENS

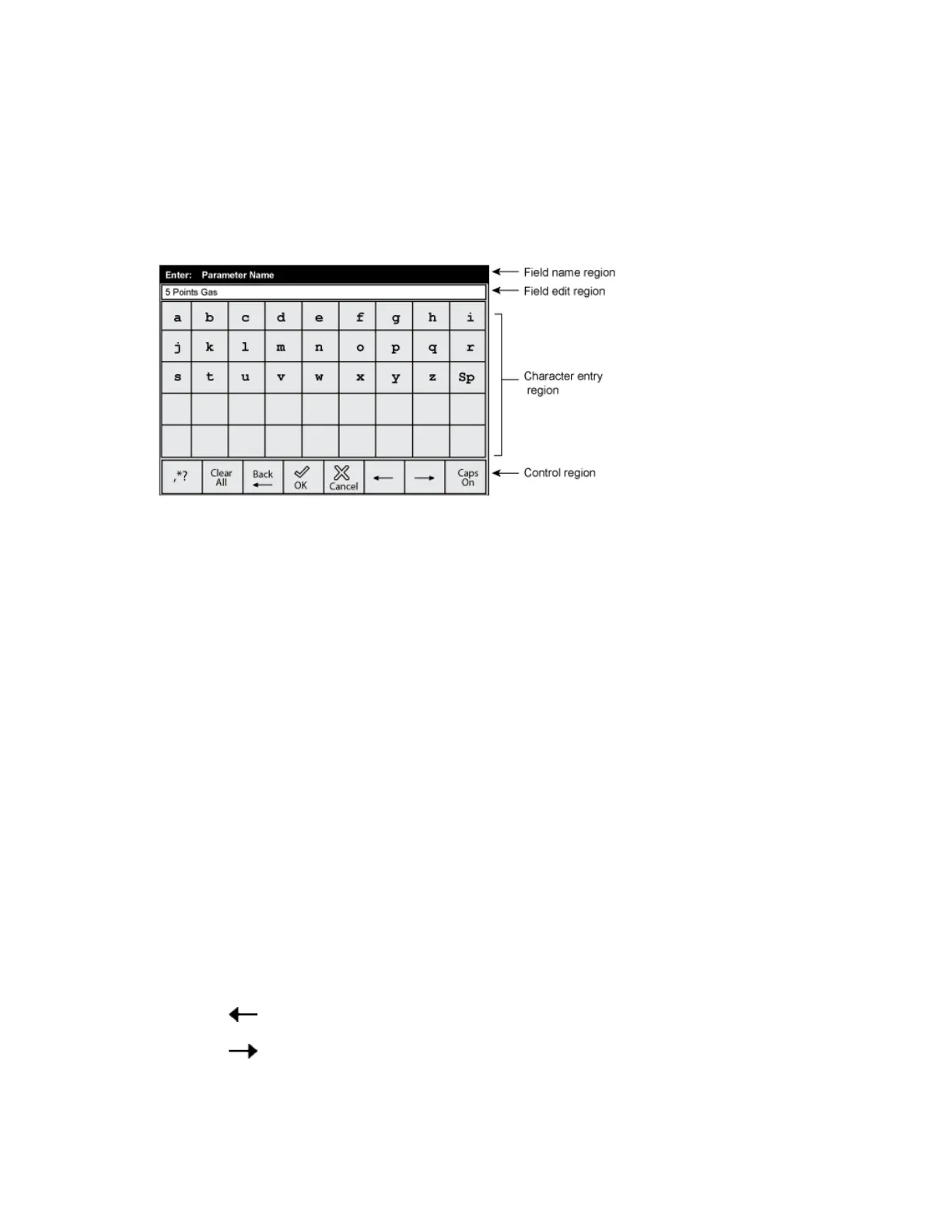

Alpha Keypad Dialog
The Alpha Keypad Dialog lets you enter letters of the alphabet for labels, names, etc.\
• Field Name Region
This is the title area that displays the name of the field value being entered.
• Field Edit Region
This is the view area to show the value as it is being entered (entries are left justified).
• Character Entry Region
This region has Buttons that enter characters in the Field Edit Line.
• Control Region
The region has the following buttons, from left to right:
• ,*? - touch this button to toggle between the Enhanced Numeric and Alpha keypad
interfaces. It is enabled when the field is an Alphanumeric Entry. It is disabled if the field
is an Alpha only entry.
• Clear All - touch this button to clear the entire entry.
• Back - touch this button to remove a character to the left of the cursor.
• OK - touch this button to apply the selection.
• Cancel - touch this button to discard any selections that have been made.
• - touch this button to move the cursor to the left.
• - touch this button to move the cursor to the right.
• Caps On - touch this button to turn on or off caps.
