TLS-450 Setup and Operation Screens Manual
11
o Cancel - touch this button to discard any selections that have been made.
o touch this button to move the cursor to the left.
o touch this button to move the cursor to the right.
o Caps On - touch this button to turn on or off caps.

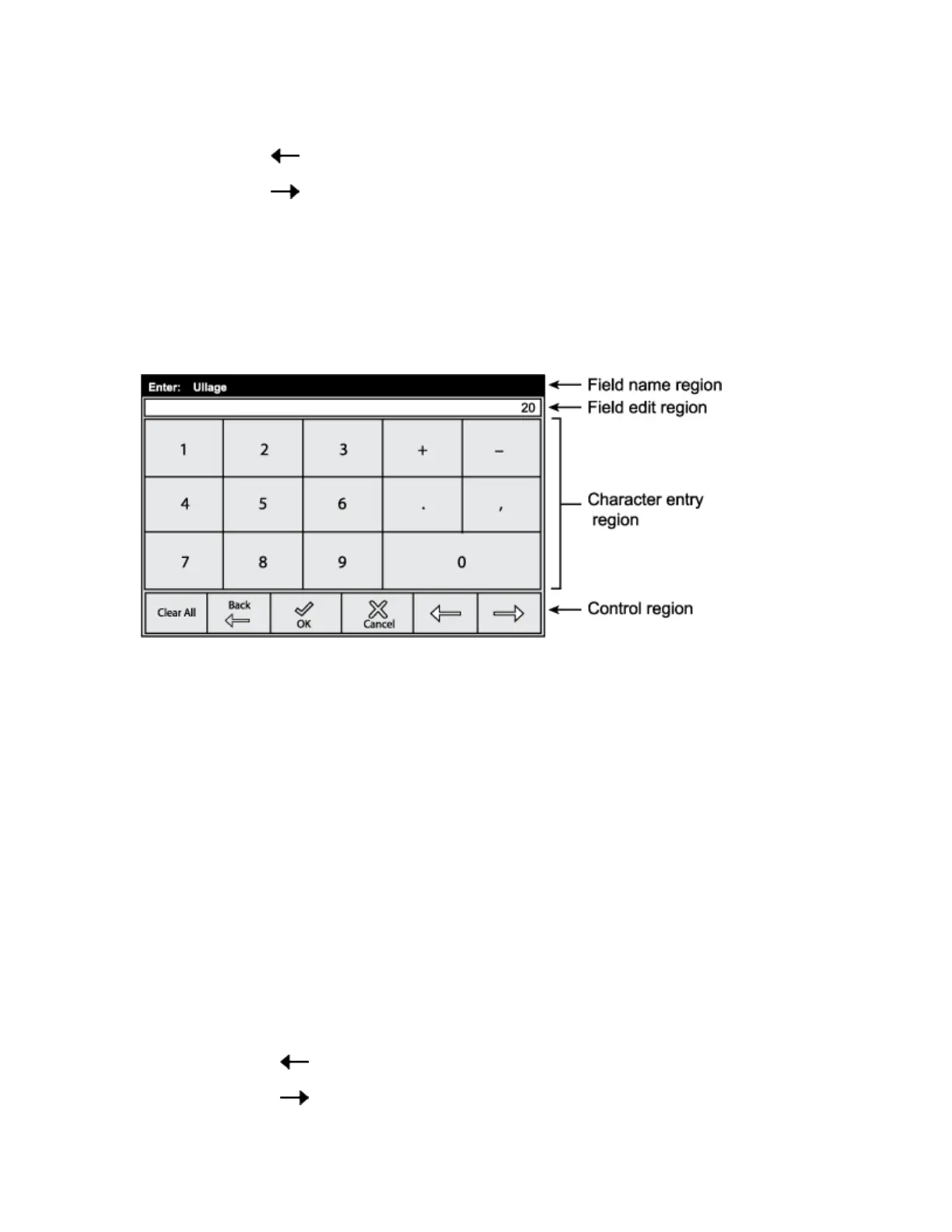

Numeric Entry Keypad
The Numeric Keypad dialog will display when you are required to enter integer and decimal entries:
• Field Name Region
This is the title area that displays the name of the field value being entered.
• Field Edit Region
This is the view area to show the value as it is being entered (entries are right justified).
• Character Entry Region
This region has Buttons that enter characters in the Field Edit Line.
• Control Region
The region has the following buttons, from left to right:
o Clear All - touch this button to clear the entire entry.
o Back - touch this button to remove a character to the left of the cursor.
o OK - touch this button to apply the selection.
o Cancel - touch this button to discard any selections that have been made.
o touch this button to move the cursor to the left.
o touch this button to move the cursor to the right.
