TLS-450 Setup and Operation Screens Manual
12
Notes:
• Touching the '+' and '-' buttons will toggle the sign of the number between positive
and negative. The negative sign character will be shown to the left of the numeric
entry. The positive sign will not be shown. It will be disabled if range for value does
not include negative numbers.
• Touching the ',' button will insert a comma for entries that use thousands
separators. This button will be enabled or disabled based on the thousands
separator setting in number format section of Display Setup.

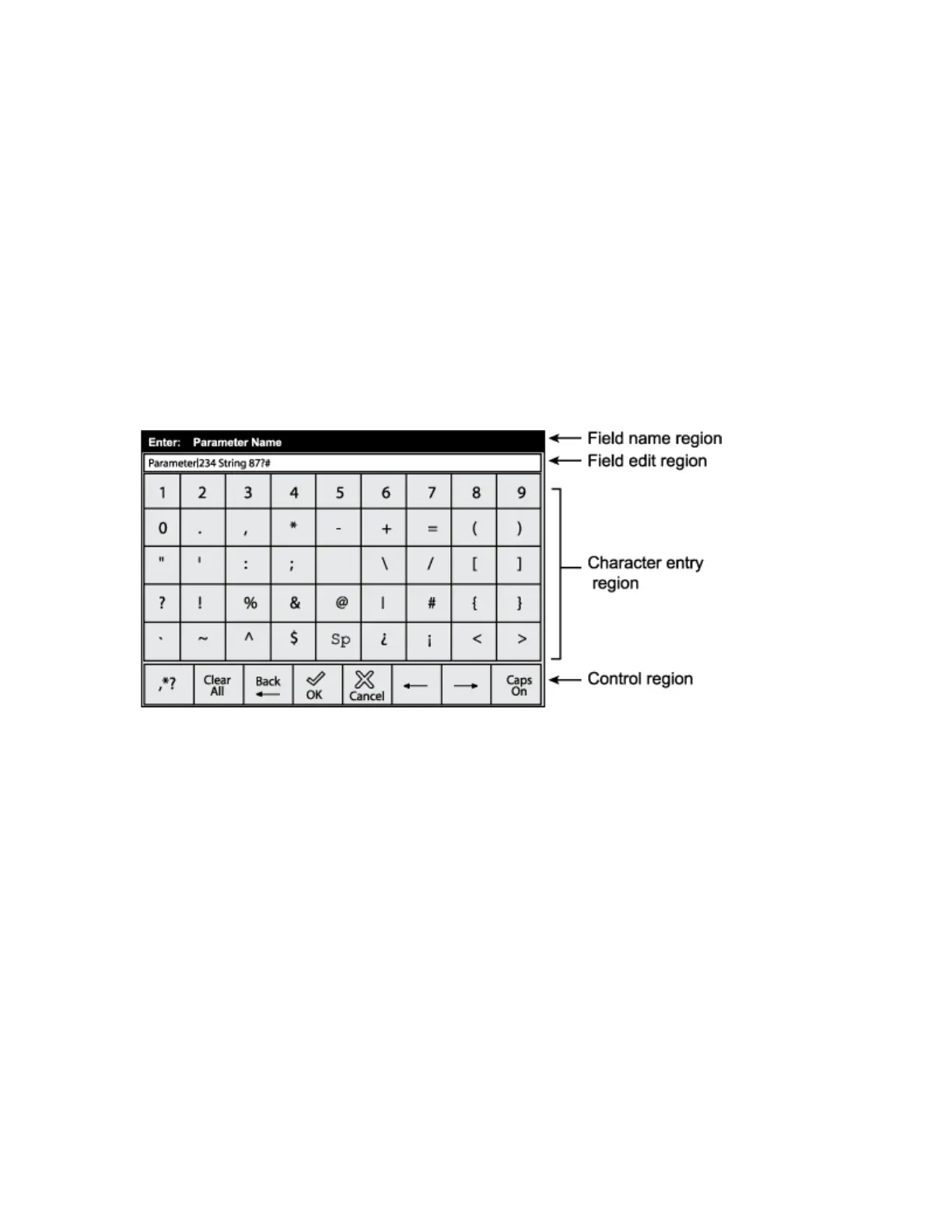

Enhanced Numeric Entry Keypad
The Enhanced Numeric Keypad dialog provides characters that contain numeric and punctuation
characters used by the alpha numeric fields for the currently selected language. This dialog is used
to enter alpha numeric fields and special alpha numeric fields like phone numbers, IP addresses, etc.
• Field Name Region
This is the title area that displays the name of the field value being entered.
• Field Edit Region
This is the view area to show the value as it is being entered (entries are left
justified). The text will be left justified for both alphanumeric and enhanced numeric
entries and right justified for both numeric and hexadecimal entries.
• Character Entry Region
This region has Buttons that enter characters in the Field Edit Line. The 'Sp' button enters
a Space Character.
• Control Region
The region has the following buttons, from left to right:
o ,*? - touch this button to toggle between the Enhanced Numeric and Alpha
keypad interfaces. It is enabled when the field is an Alphanumeric Entry. It is
disabled if the field is an Alpha only entry.
