WAGO-I/O-SYSTEM 750 CoDeSys 2.3 Runtime Environment 105
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
5. Create a program function block in the "New POU" window. In this
example, a new function block, "PLC_PRG", is created in the "ST"
programming language.
6. Click on [OK] to create the project. The programming interface opens.

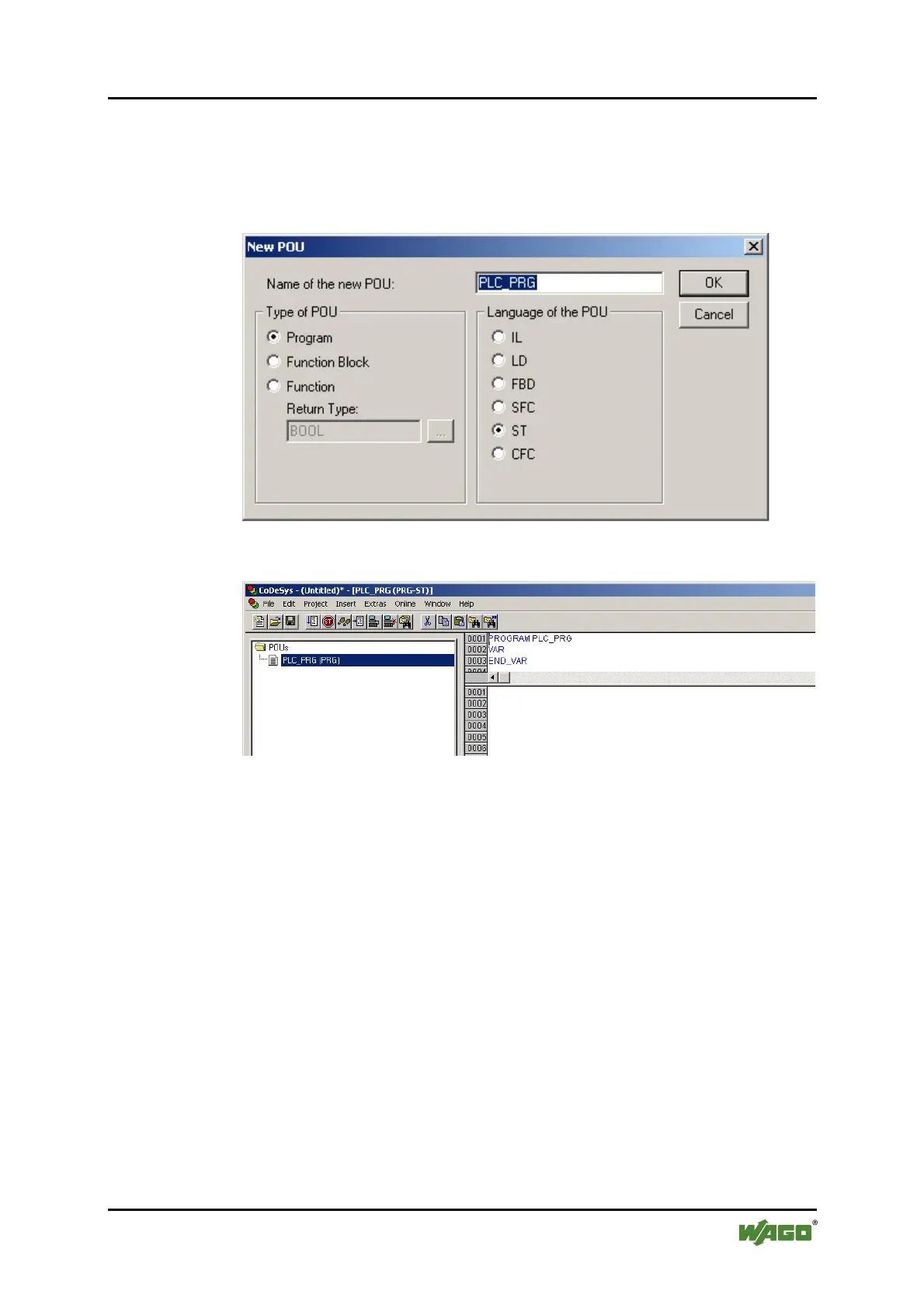

Figure 38: Designing a new function block
Figure 39: Programming interface with the program function block PLC_PRG
