WAGO-I/O-SYSTEM 750 PROFIBUS Master in CoDeSys 2.3 165
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0

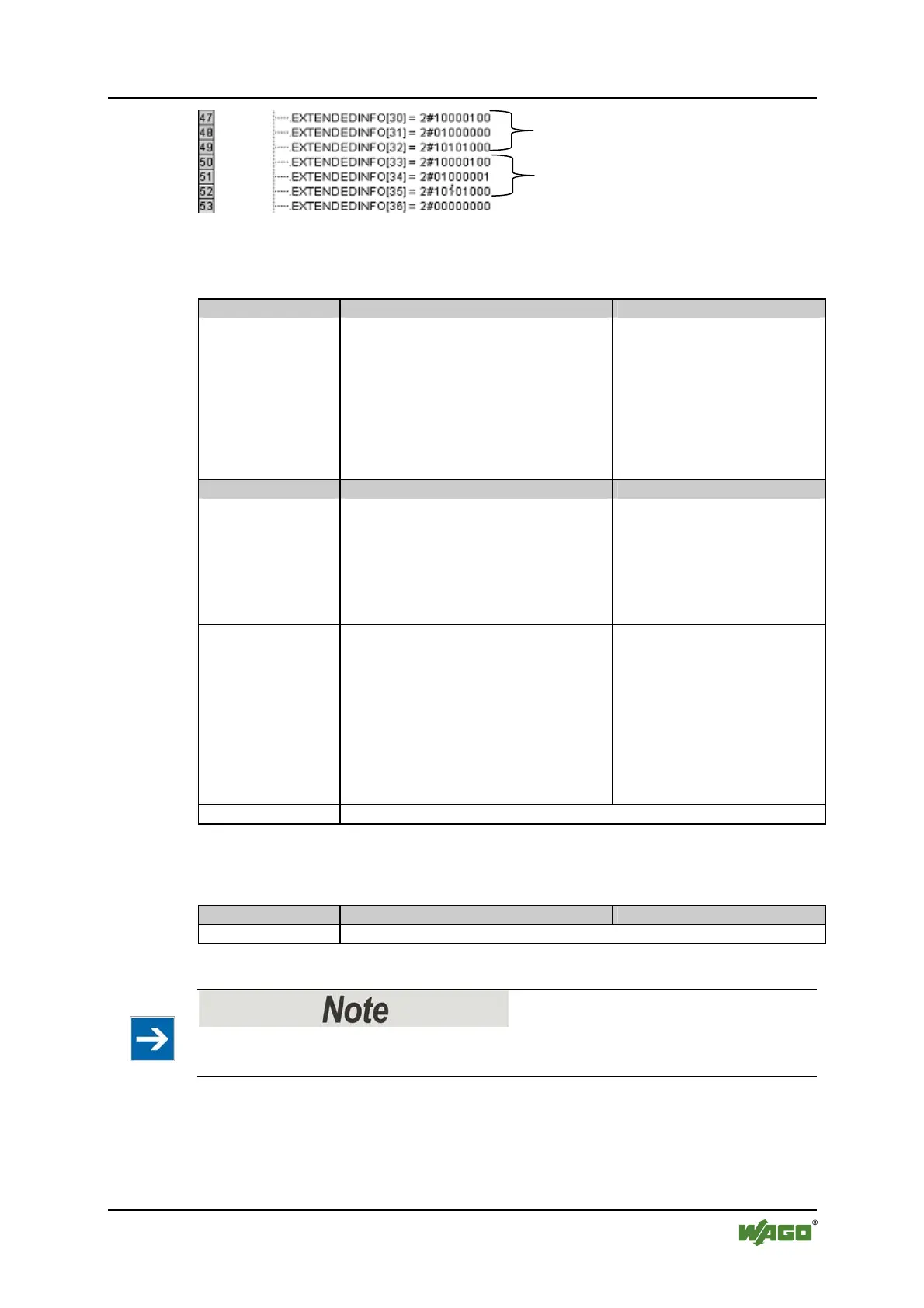

Figure 91: Online view of the arrays EXTENDEDINFO in binary representation 2
Channel 1 of the 750-466 Input Module
Array Element Content Meaning
30 10000100 Slot for the input module. In
this case, the third (slot 4).
Note:
Fieldbus coupler and
controller, including the power
supply module, reserve the 1st
slot. Therefore the first I/O
module is inserted in the second
slot.
Array Element Content Meaning
31 01000000 The first two bits indicate the
type of channel:
01 Input channel
10 Output channel
11 Input and output channel
The other bits indicate the
channel number.
32 10101000 The first three bits indicate the
type of channel:
000 No assignment
001 1 bit
010 2 bit
100 1 byte
101 1 word
110 2 words
The other bits indicate I/O
module errors.
33 – 35
Channel 2
Channel 2 of the 750-466 Input Module
Array Element Content Meaning
33 – 35 See channel 1
Array Element 129
The number of projected slaves is specified in the array element 129.
