WAGO-I/O-SYSTEM 750 Configuration 89
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
9.1.18 "WebVisu" Page
On the "WebVisu" page, you select whether the WBM or CoDeSys web
visualization should appear when entering the IP address of the I/O-IPC.
To save all settings made on the page, click the [SUBMIT] button. The I/O-IPC
must be restarted or reset to apply the settings. To display the CoDeSys Web
visualization, also update the Internet browser.
In order to reach the WBM again, in addition to the IP address, enter the port
number "8080": http://192.168.2.17:8080 (socket address).
You can obtain additional information on CoDeSys web visualization in the
section of the same name.
9.2 Configuration with a Terminal Program
You can configure the I/O-IPC both via ETHERNET using Telnet as well as via
the Linux console using the RS-232 interface via the IPC Configuration Tool. To
call up the IPC Configuration Tool for both variants, log into the Linux console
and enter the command ipcconfig. See section "Access over Telnet" and section
"Access via RS-232 Interface and Terminal Program".

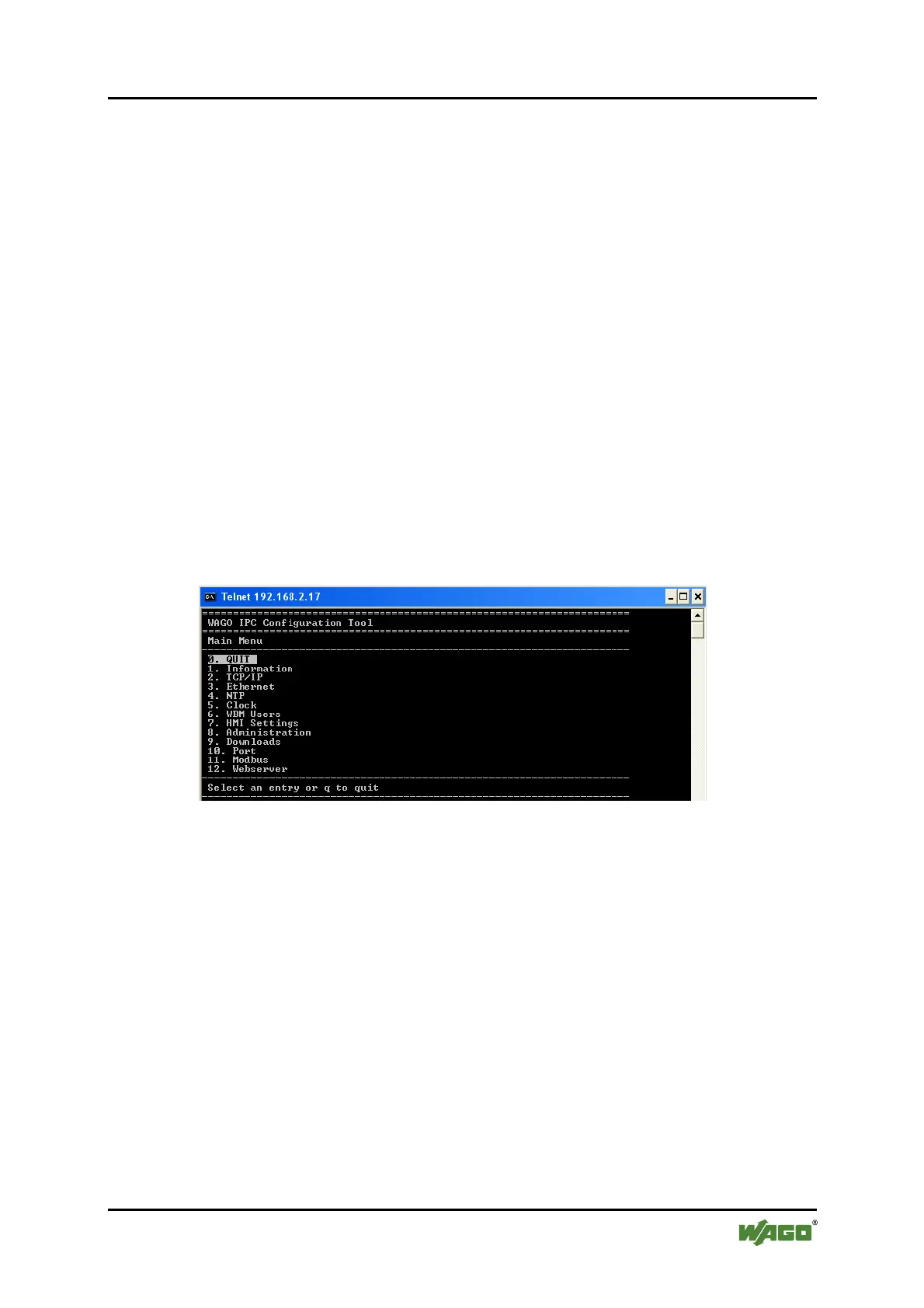

Figure 33: Access to the IPC Configuration Tool using Telnet
