56 Connecting the Supply Voltage WAGO-I/O-SYSTEM 750
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
Pos: 38.11 /Serie 758 ( Funk, IPC und PFC)/Ansc hluss Daten- und Versorgungsk abel/Anschluss D aten- und Versorgungska bel 758-87x 750-626 - Übersc hrift 2 @ 10\mod_13134975 52539_21.doc @ 77103 @ 2 @ 1

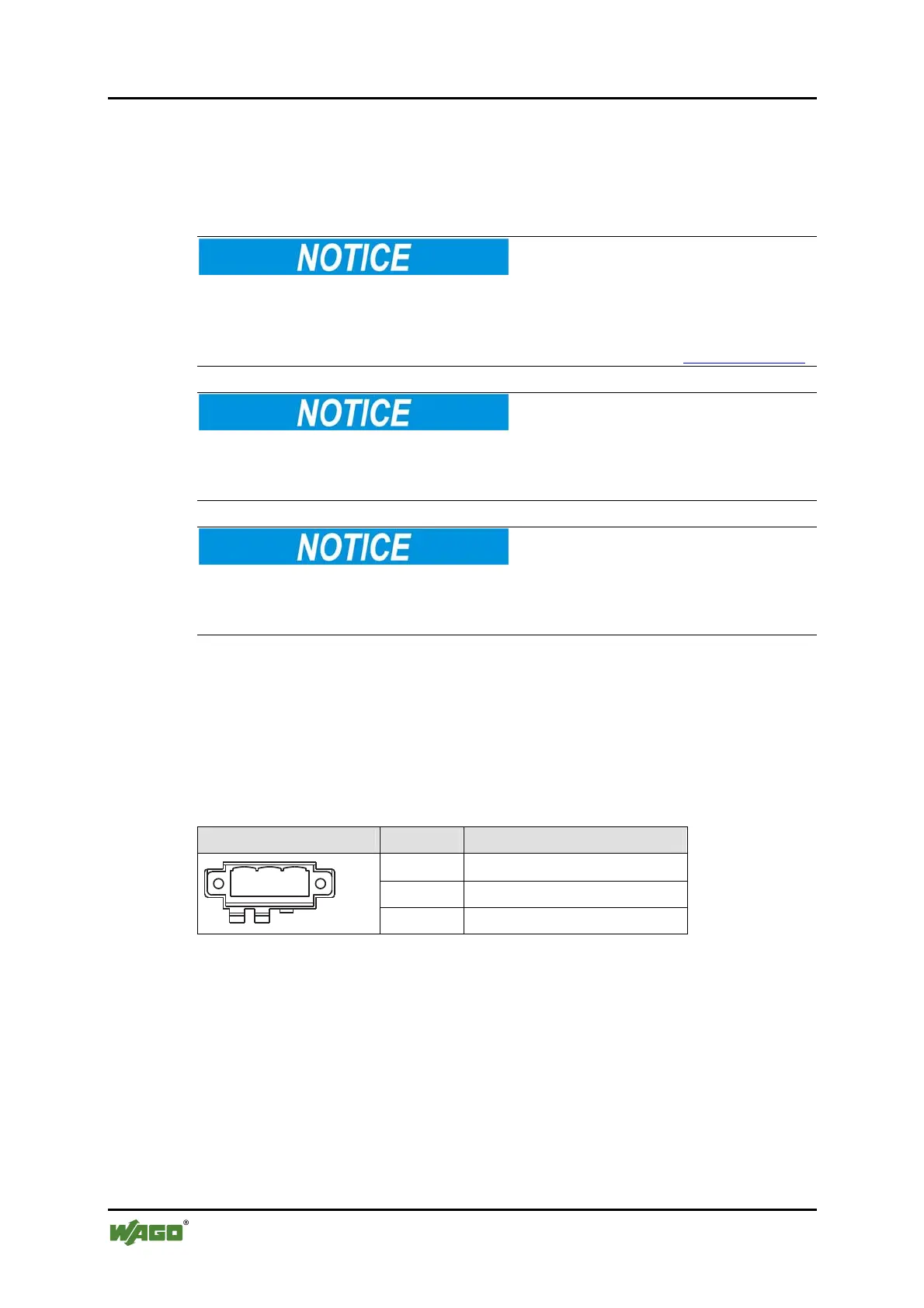

7.4 Power supply via 750-626 Filter Module
Pos: 38.12 /Serie 758 ( Funk, IPC und PFC)/Ansc hluss Daten- und Versorgungsk abel/Anschluss D aten- und Versorgungska bel 758-87x Einleitung 750- 626 @ 10\mod_1313497568008_ 21.doc @ 77109 @ @ 1
The 750-626 Filter Module is required as soon as a supply line exceeds 3 m
between the voltage source and the I/O-IPC.
Pos: 38.13 /Serie 758 ( Funk, IPC und PFC)/Ansc hluss Daten- und Versorgungsk abel/Anschluss D aten- und Versorgungska bel 758-87x 750-626 Einl eitungsende @ 10\mod_13124 42131062_21.doc @ 75871 @ @ 1
Observe current carrying capacity!
For this power supply variant, you will need the 750-626 Filter Module starting
with hardware version 4. This is the only filter module configured for the higher
current carrying capacity. You can obtain the filter module from www.wago.com.
Observe the isolation voltage!
When using the 750-626 Filter Module, the isolation voltage of the field and
electronic power supply is reduced to 50 V against ground.
Ensure the correct conductor cross-sectional area!
Use conductor cross-sectionsranging from 0.08 mm² to 2.5 mm² (28 - 14 AWG)
only for the CAGE-CLAMP
®
connections of the filter module.
Requirements for connecting the supply voltage
• You have connected two supply lines each to two voltage sources of
+24 V DC and 0 V DC in a de-energized state.
• You have connected the accompanying socket for the X4 connection to the
supply cable.
Pos: 38.14 /Dokumenta tion allgemein/Glied erungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1
Table 22: Connection for Electronic Supply: Terminal Layout
X4 connector Pin Description
1
V_IN (+)
2 GND (-)
1
2
3
3 Shield (optional)
